Thick 1.0mm 1.2mm 1.6mm Aluminum LED PCB CE ROHS UL Certificated
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Aluminum Led Light Pcb Board 01
High Light:

1.2mm Aluminum LED PCB

,

1.0mm Aluminum LED PCB

,

94V0 Aluminium Substrate PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Board Thickness: 1.0/1.2/1.6mm
Surface Finishing: HASL Lead Free
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Application: All Led Light Use
Product Description

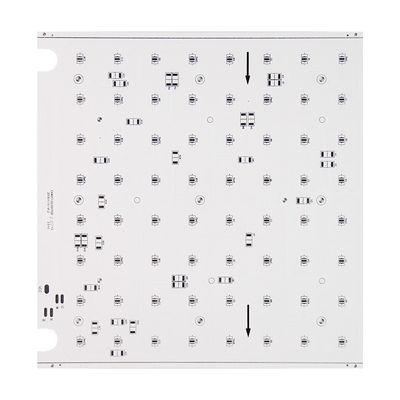

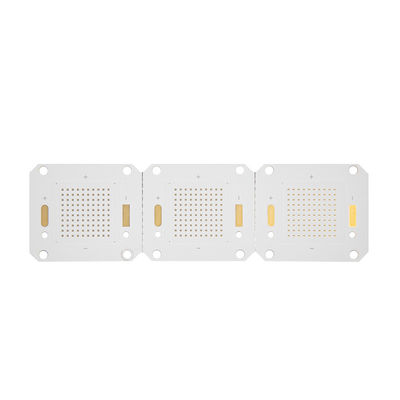

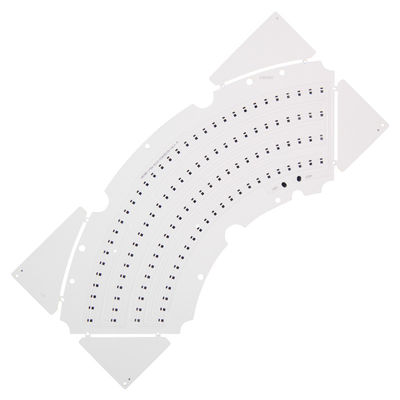

Thick 1.0mm 1.2mm 1.6mm Aluminum LED PCB CE ROHS UL Certificated

Pcb Manufacturer Aluminum Led Light Pcb Board 94V0 ROHS led pcb board

Introduction of Aluminum PCB:
Aluminum PCB is capable to stand higher current with the same thickness and line width. Aluminum PCB is able to withstand voltage up to 4500V and thermal conductivity is more than 2.0. At present, aluminum PCB is the most common type for LED lighting PCB applications.
Common LED PCB has two sides. The top side with white solder mask is used for soldering SMD LED beads, and the other side normally has no solder mask and showing as aluminum metal color. If there is a demand for high-power heat dissipation, the aluminum base can also be coated with a thermal conductive silicone grease layer to connect with the installed heatsinks for better heat dissipation.


No.

Item

Mass Production

Prototype

1

Layers

1-8 Layers

1-36 Layers

2

Max. Panel Size

600*770mm( 23.62″*30.31″)

600*770mm(23.62″*30.31″) 500*1200mm(19.69″*47.24″)

3

Max.Board Thickness

8.5mm

8.5mm

4

Min Inner Layer Clearance

0.1mm(4mil)

0.1mm(4mil)

5

Min Line width

0.075mm(3/3 mil)

0.075mm(3/3 mil)

6

Min.Hole Size

0.15mm(6mil)

0.15mm(6mil)

7

Min plated hole thickness

20um(0.8mil)

20um(0.8mil)

8

Min Blind/Buried hole size

0.1mm(4mil)

0.1mm(1-8layers)(4mil)

9

PTH Dia. Tolerance

±0.076mm(±3mil)

±0.076mm(±3mil)

10

Heavy Coppe

4oz/140μm

6oz/175μm

11

Min S/M Pitch

0.1mm (4mil)

0.1mm (4mil)

12

Silkscreen colour

White,Yellow,Red,Black

White,Yellow,Red,Black

13

Outline

Routing,V-Groove, Beveling punch

Routing,V-Groove, Beveling punch


Thick 1.0mm 1.2mm 1.6mm Aluminum LED PCB CE ROHS UL Certificated 0
Thick 1.0mm 1.2mm 1.6mm Aluminum LED PCB CE ROHS UL Certificated 1Thick 1.0mm 1.2mm 1.6mm Aluminum LED PCB CE ROHS UL Certificated 2


Thick 1.0mm 1.2mm 1.6mm Aluminum LED PCB CE ROHS UL Certificated 3



FAQ:
Q1.What specifications do you need for PCB quotation?
A:We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.


Q2.Are you trading company or manufacturer ?
A: We are PCB manufacturer with 12 years experience in this area.



Q3:What is your minimum order quantity?
A: MOQ is 1 PCS.
