Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: PCBA02
High Light:

94v0 Prototype PCB Assembly

,

HASL Prototype PCB Assembly

,

94v0 LED PCB Assembly

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Board Thickness: 0.6mm 0.8mm 1mm 1.6mm 2mm 3mm
Copper Thickness: 1oz 2oz 3oz
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Surface Finishing: HASL Lead Free
Aluminum Pcb Board 2835 Led Smd: LED PCB Board Assembly
Product Description

Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing

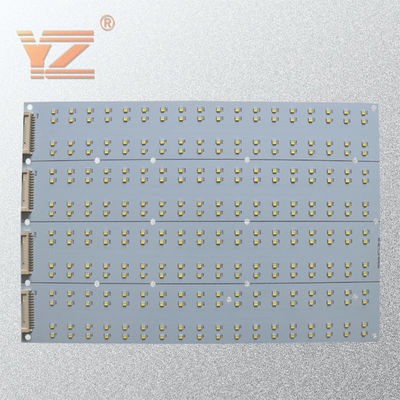

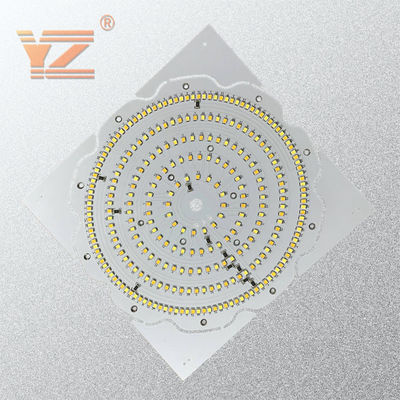

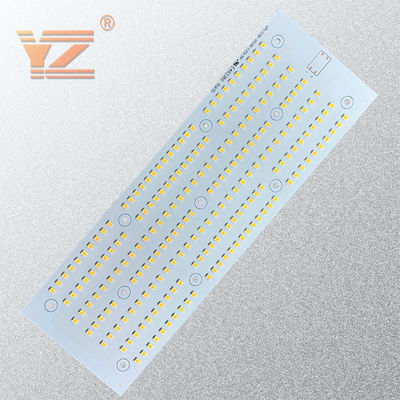

Customized 94v0 Aluminum LED PCBA Circuit Board For Led Light





Items

Description

Layers

Layers: 1-2 Layers

Material

Aluminum / Copper Based

Board Thickness

board thickness:0.02″ – 0.18″ (0.5mm- 4.6mm) tg130° – tg170°

Surface finish

Lead- free HASL, ENIG; OSP, Immersion silver

Max Copper

0.5oz- 3oz

Min Trace
Width / Min Clearance

0.5oz: 4/4mil
1oz: 5/5mil
2oz: 5/7mil
3oz: 7/8mil

Min Hole Size and Tolerance

Min hole: 30mil (Final Thickness 0.5mm- 2.0mm)
45mil (Final Thickness 2.0mm- 4.6mm)
Tolerance: PTH±4mil, NPTH±3mil

Max/Min Board Size

Min: 0.16″x0.16″ Max: 57″x23″

Solder Mask Color

Glossy: Green/Black/Red/Yellow/White/Blue
Matt: Green/Black

Solder Mask Resolution

Solder Mask Thickness:0.2mil- 1.6mil
Solder Mask Hole Plug Diameter:10mil- 25mil

Silk Screen Color

White, Black

Silk Screen Size

Min Width: 5mil; Height: 24mil

Testing Voltage

Testing Fixture: 50V- 300V
Flying Probe: 30V- 250V

Profile

CNC: ±5mil
V- CUT: ±5mil

Bow and Twist

≤1%



Among all metal core PCBs (aka MCPCBs, known for their ability to provide effective thermal dissipation for electronic products), Aluminum PCBs is the most common type - the base material consists of aluminum core with standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner, while cooling components and increasing the overall performance of the products. Currently,Aluminum Backed PCBs is regarded as the solution to high power and tight tolerance applications.





Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing 0Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing 1





Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified by ISO9001: 2015 international quality management system. It was founded in 2012 and has been committed to the innovation and sustainable development of electronic technology. It is used in the manufacture and sales of various metal PCBs, LEDs and related products. The products are widely used in lighting, electronics, machinery, communications, automotive and other industries that require heat dissipation. With a senior management team and R & D design team with an average industry experience of more than 8 years, we have created a strong worldwide distribution network and sales channels, and our products sell well in Asia-Pacific, Europe, America, and the Middle East.

Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing 2

Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing 3

Custom 94v0 Prototype PCB Assembly HASL Lead Free Surface Finishing 4
