OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: PCBA04
High Light:

OEM Aluminum PCB Assembly Prototype

,

ODM PCB Assembly Prototype

,

ODM PCB Board Prototype

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Board Thickness: 0.6mm 0.8mm 1mm 1.6mm 2mm 3mm
Company Type: Manufacturer/ Factory
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Outline: Routing,V-Groove, Beveling Punch
Aluminum Pcb Board 2835 Led Smd: LED PCB Board Assembly
Product Description

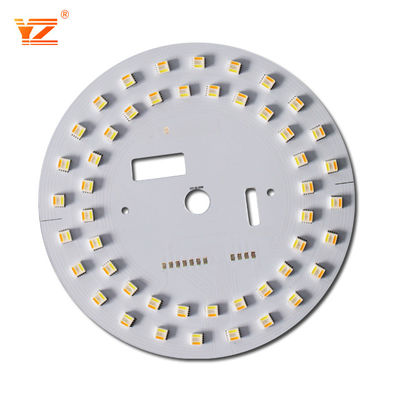

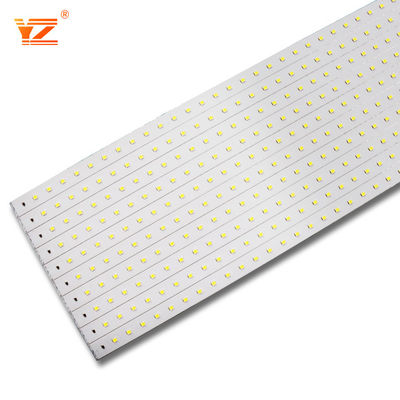

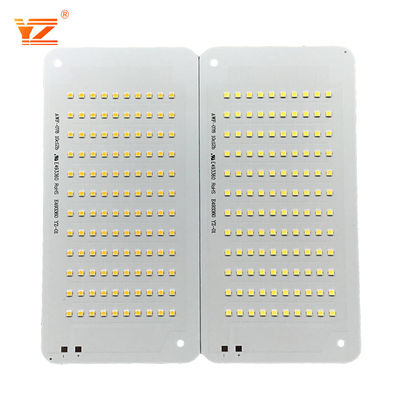

OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board



Aluminum LED PCBA Custom Aluminum Print Circuit Board Manufacture​





No.


Items


Capability

1

Laminates

Aluminum

2

Layers

2

3

Min.Board Thickness

3.0mm

4

Finished Copper

0.5oz - 2oz

5

Min.Line/Space

3/3mil
0.075/0.075mm

6

Min.Finished Hole

0.15mm

7

Copper Thickness Of Hole

20-25um

8

Min.S/M Bridge

4mil(0.10mm)

9

Hole Position Tolerance

+/-2mil

10

Outline Tolerance

Normal:+/-5mil, Special:+/-4mil

11

PTH Tolerance

Normal:+/-3mil,Special:+/-2mil

12

Impedance Control

+/-10%

13

Twist and Bow

<=0.75%



Application of Aluminum PCB Boards



LED Lights

panel ight/ UV/ growing/ tube/ ceiling/ road/ traffic/ stage/ medical light … and other high-current lights

Industrial Equipment

High-power transistors, transistor arrays, push-pull or totem pole output circuit (to tem pole), solid-state relay, pulse motor driver, the engine Computing amplifiers (Operational amplifier for serro-motor), pole-changing device (Inverter)

Cars

Car light, firing implement, power regulator, exchange converters, power controllers, variable optical system

Power

voltage regulator series, switching regulator, DC-DC converters

Audio

input - output amplifier, balanced amplifier, pre-shield amplifier, audio amplifier, power amplifier

OA

Printer driver, large electronic display substrate, thermal print head

Others

Semiconductor thermal insulation board, IC arrays, resistor arrays, Ics carrier chip, heat sink, solar cell substrates, semiconductor refrigeration device





OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 0OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 1




OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 2

Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified by ISO9001: 2015 international quality management system. It was founded in 2012 and has been committed to the innovation and sustainable development of electronic technology. It is used in the manufacture and sales of various metal PCBs, LEDs and related products. The products are widely used in lighting, electronics, machinery, communications, automotive and other industries that require heat dissipation. With a senior management team and R & D design team with an average industry experience of more than 8 years, we have created a strong worldwide distribution network and sales channels, and our products sell well in Asia-Pacific, Europe, America, and the Middle East.

OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 3



OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 4OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 5

OEM ODM Aluminum PCB Assembly Prototype Printed Circuit Board 6





Why Choose Us?

  1.  Professional PCB fabrication team -all engineers have years’ experience in PCB manufacturing field

  2.  Advanced equipment and high precision inspection & testing tools

  3.  Top raw materials including CCL (Copper Clad Lamination), chemistry, and solder mask ink & legend ink

  4.  Skilled operators with good command of all CCPs (Critical Control Points)

  5.  Full set of surface finish equipment can do ENIG, immersion silver, immersion Tin, OSP, HASL (lead free), plating gold and plating silver without outsourcing risk.

  6.  Cutting edge printed circuit board manufacturing process capacities

  7.  Max aspect ratio reaches to 10 : 1

  8.  Max copper weight on double PCB surface can reach to 6OZ

  9.  The thickness of solder mask can control to 50μm

  10.  Min Impedance control value is 50ohm +/- 5%

  11.  Min NC drilling diameter 0.2mm and min laser drilling diameter is 0.1mm

  12.  Circuit board manufacturing strictly as per IPC standards and make sure 100% qualified

  13.  Strictly perform PDCA (Plan-Do-Check Action Cycle) process, and continuously improve product performance

  14.  Leading outstanding enterprise of energy saving and environmental protection
