HASL Thickness 1.6mm LED MCPCB Board 2835 Aluminum Core Board
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: mc pcb03
High Light:

Thickness 1.6mm LED MCPCB

,

2835 LED MCPCB

,

Thickness 1.6mm 2835 LED PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum Circuit Board
Board Thickness: 1.6mm
Min. Hole Size: 0.25mm
Certificate: ISO9001:2008,ROHS,UL
Copper Thickness: 0.5oz-12oz
Surface Finishing: HASL,OSP,ENIG, Gold Finger
Application: For Light In Automobile
Product Description

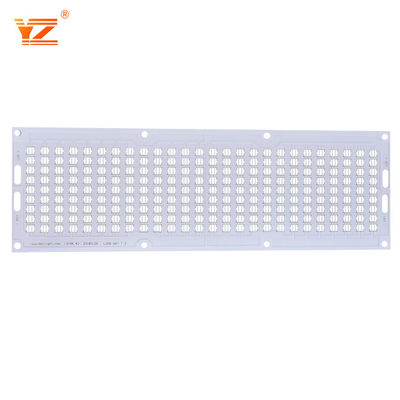

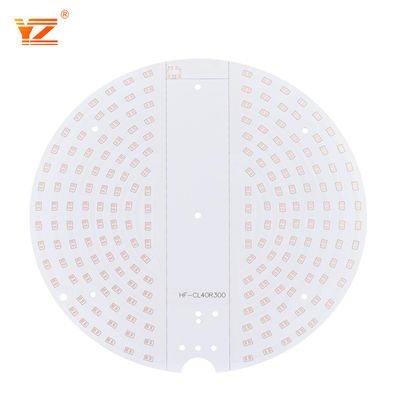

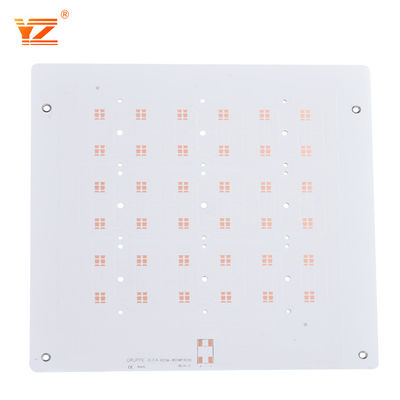

HASL Thickness 1.6mm LED MCPCB Board 2835 Aluminum Core Board



Led Bulb Pcb Aluminum core Mcpcb Board 2835 Led chips Pcb Board





LED MC PCB

Layer

Single-side, Double Side

Board thickness

0.8, 1.0, 1.2, 1.5, 1.6, 2.0

Copper Thickness

18um, 25um,35um, 70um (can be customized,.the price is defferent)



Surface Treatment



OSP



Silkscreen

White, Yellow, Black

PCB size

can be customized

Base Material

Aluminum

Package

Vacuum Package



Applications of Aluminum Core PCBs:

1. Solid State Relays

Aluminum PCB boards are used in designing solid state relay. Since, they feature a very thermally efficient and mechanically sturdy PCB substrate to reallocate heat away from critical relay components.

2. Consumer Electronics

The portability and lightweight of Aluminum core PCBs allows them to serve in designing consumer electronic products such as control lighting, interior building lighting fixtures, and camping gear, etc.

3.  LED Circuit Boards

The usage of an aluminum substrate in LED PCBs guarantees the minimum possible operating temperatures and maximum brightness, color, and operational life.

4. Power Conversion Circuit Boards

Aluminum clad PCBs offer a wide range of thermal operating temperatures. This makes them ideal to be used for high power conversion boards such as DC-AC adapter, stabilizer, etc.

5.  AC/DC Motor drives

Aluminum clad PCBs are commonly used in AC/DC motor driver boards, as they provide the electrical isolation needed to meet the set operating conditions and safety test requirements.

6.  Audio & Radio Equipment

Due to their capability of redirecting heat away from sensitive on board parts. Aluminum core PCBs are commonly used in audio equipment such as mixers and preamps, allowing them to be used for longer periods of time under high audio gain stress.

HASL Thickness 1.6mm LED MCPCB Board 2835 Aluminum Core Board 0















FAQ:



Q1: What is your minimum order quantity?
A:  MOQ is 2 PCS.

Q2: What is your advandage than other supplier ?
A:  We have around 12 years of experience in produce PCB,with professional engineer team and advanced auto production line.
