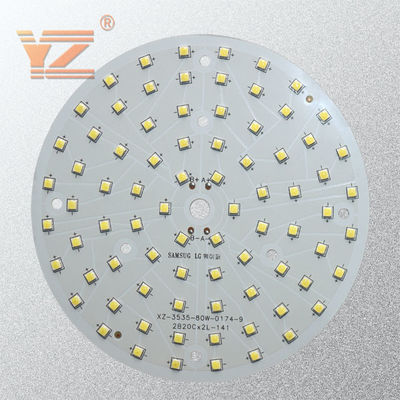

94V0 SMD 2835 Custom Circuit Board Assembly AC220V LED Panel PCB

94V0 MCPCB SMD 2835 Aluminum LED light PCB Panel Lamp Chip AC220V

Structure of aluminum PCB:
PCB aluminum based copper clad laminate is a kind of metal circuit board material, which is composed of copper foil, thermal insulation layer and metal substrate
1)  Circuit layer: equivalent to common PCB copper clad laminate, circuit copper foil thickness from 1oz to 10oz.

2)  Insulating layer: insulating layer is a layer of low thermal resistance thermal insulation material. Thickness: 0.003 "to 0.006" inch is the core technology of aluminum based copper clad laminate, which has obtained UL certification.
3)  Base: is a metal substrate, generally aluminum or optional copper. Aluminum based copper clad laminates and traditional epoxy glass cloth laminates
PCB aluminum substrate is composed of circuit layer, thermal insulation layer and metal base layer; circuit layer (i.e. copper foil) is usually etched to form printed circuit, so that the components of components are connected with each other. Generally, the circuit layer requires a large current carrying capacity, so thick copper foil should be used, with a thickness of 35 μ m ~ 280 μ M. Thermal insulation layer is the core technology of PCB aluminum substrate. It is generally composed of special polymer filled with special ceramics. It has small thermal resistance, excellent viscoelastic performance, thermal aging resistance, and can withstand mechanical and thermal stress. This technology is used in the thermal insulation layer of High Performance PCB aluminum substrate, such as IMS-H01, IMS-H02 and LED-0601, which makes them have excellent thermal conductivity and high strength electrical insulation performance.


We make custom LED PCB Module in your requirements:
Customized Diameter
Customized Circuit design
Customized LED quantity
Customized Power
Specified LED Chip ( SAMSUNG, CREE, or Other Brand)
Other special requirements on the functions
Bergquist Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.
It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.

FAQ:

Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.

Q2. How about your supply capacity?

A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q3. How long is the lead time?
A:  For samples, it will take 5-7work days; for bulk  orders, it will take 12-15 work days.
