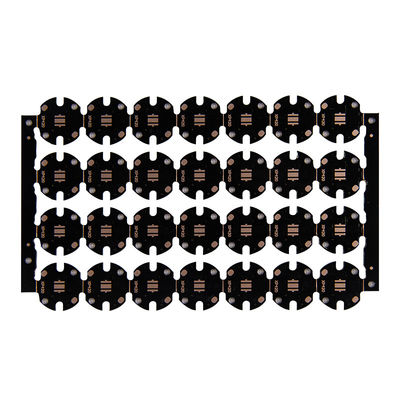

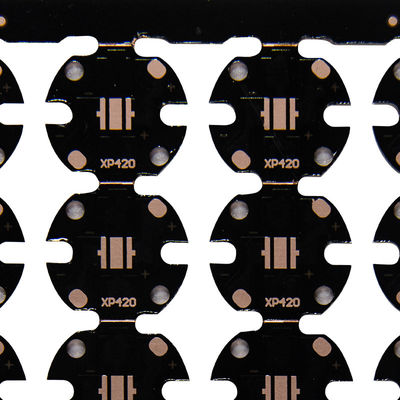

SMD 2835 Custom PCB Circuit Board Copper Thick 0.5oz 1.0oz 2oz 3oz
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: led light pcb 02
High Light:

SMD 2835 Custom PCB Circuit Board

,

0.5oz Custom PCB Circuit Board

,

3oz Copper MCPCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Specifications
Base Material:: Aluminum Based
Copper Thickness: 0.5oz, 1.0oz, 2oz, 3oz
Board Thickness: 0.2mm - 4mm
Min. Hole Size: 0.25mm(10mils)
Surface Finishing: OSP/HASL/ENGS
V-CUT Angle: 20, 25, 30, 45 Degree
Product Description

SMD 2835 Custom PCB Circuit Board Copper Thick 0.5oz 1.0oz 2oz 3oz



Custom PCB circuit board smd 2835 led Aluminum square pcb board warm light pcb



The Applications of LED PCB Circuit Board:
The Led benefits make LED printed circuit boards very desirable for a number of applications and industries. Some of the more prominent applications of Aluminum LED PCB Circuit Board include:

Telecom LED PCB: Telecommunications equipments often uses LED indicators and displays, and because of the surrounding machinery, the improved heat transfer ability of Aluminum LED PCB is extremely useful in this application. Improved durability and decreased weight also make these aluminum PCB LED quite desirable within telecommunications applications. Not only that, but Led Metal core PCBs are commonly used in other components of telecommunications equipment as well, including filtering appliances and high-frequency amplifiers.

Automotive LED PCB: You can also find Led Aluminum PCB Board in cars on indicators, in headlights and brake lights, and other applications. The durability, longevity and relatively low price makes these Led aluminum PCB ideal within the automotive industry. Their applications don’t end at LED either – aluminum PCBs are commonly used within electronic regulators and power controllers.

Computer Led PCB: LED displays and indicators are becoming increasingly common within computer applications, and the heat sensitivity of computer machinery makes Led PCB the ideal solution. In addition to LED applications, computer parts like power devices, floppy drives and CPU boards are commonly use aluminum LED PCBs because of their ability to handle and transfer heat.

Medical LED PCB: Lighting tools used in surgeries and medical examinations commonly use high-powered LED lights, and these LED lights often use aluminum PCBs. This is primarily due to the durability and heat transfer capabilities of aluminum PCB LEDs — this ensures medical equipment is functioning properly regardless of the number of patients cycling through a medical office. In addition to lighting tools, medical scanning technology often uses aluminum PCBs as well.

Led PCB Products : Led Tube , Outdoor LED advertising screen, LED Lamp, Waterproof Led , 1.5m Led and so on .



Product Type

Al Clad PCB 1 layer~2 layer

Maximum Panel size

20"*24" (1170mm*600mm)

Copper thickness

0.5oz, 1oz, 2oz, 3oz and 4 oz

Dielectric Thickness
(to Substrate)

0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm

Substrate Core Thickness

0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm

Finished Board Thickness

0.4mm To 4.0mm

Thickness Tolerance

+/-10%

Aluminum Machining

Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available

Min. Finish hole size

0.25mm

Max.working voltage

2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)

Min.Track Width

0.2mm (8mils)

Min.Track gap

0.2mm (8mils)

Min. SMD pad pitch

0.2mm (8mils)

Surface Finishing

HASL, HASL Leadfree, Immersion gold, Flash gold, OSP

Soldermask color

White, Black, others Available

Legend color

Black, White, others Available

Etest

YES

Rohs

YES

Reference Standard

IPC-A-600G Class 2

Special holes

Spot facing, Cup holes

Data Input

Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP,
POWER PCB,ODB+.(TGZ)



SMD 2835 Custom PCB Circuit Board Copper Thick 0.5oz 1.0oz 2oz 3oz 0

FAQ:
Q: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q: How can I get a sample to check your quality?
A:  After price confirmation,you can place orders for samples for your testing and evaluation.
