Square SMD LED aluminum plate pCB board For LED Light Lamp
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: MC PCB Board 08
High Light:

SMD LED Aluminum Plate PCB Board

,

HASL LED Aluminum Plate PCB Board

,

HASL Metal Clad PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Item: Custom Circuit Board
Material: Aluminum Base Material
Hole Tolerance: PTH: +/-3mil NPTH: +/-2mil
PCB Standard: IPC-A-610 D/IPC-III Standard
Solder Mask: Green, Yellow, Black, White, Red, Blue
Supplier Type: OEM/ODM Custom
Product Description

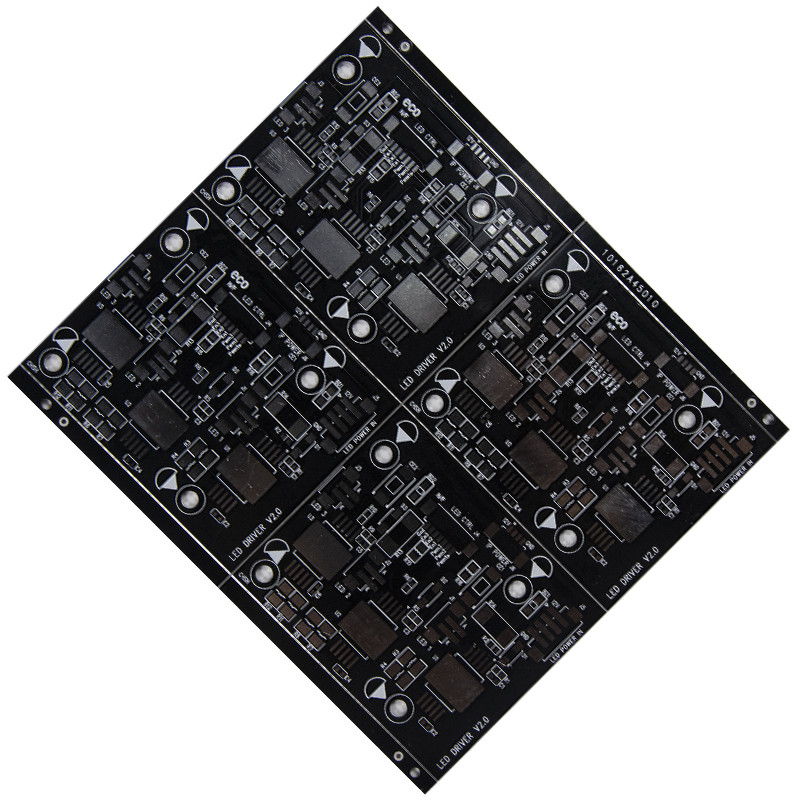

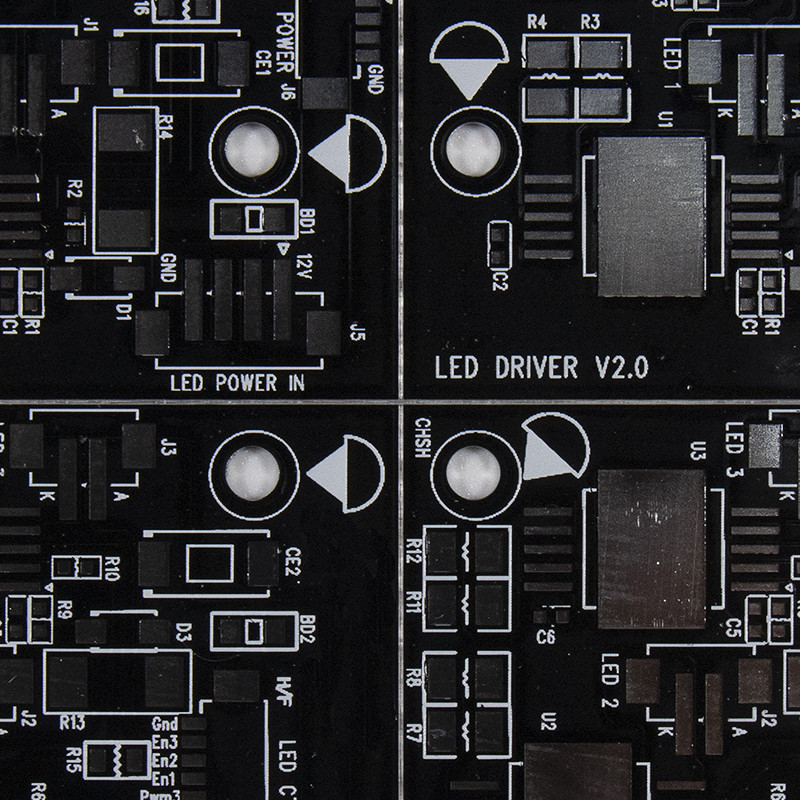

Square SMD LED aluminum plate pCB board For LED Light Lamp



Custom Square Smd Aluminum Plate Led Pcb Board For Led Light Lamp



Advantages of Aluminium PCB:

There are various advantages of aluminum PCBs, some of them are,

1. Affordable Metal Core PCB

Aluminum PCBs are much cheaper than other metal core PCBs. They have higher thermal conductivity as compared to commonly used FR-4 PCBs. In contrast, if you use copper or stainless-steel PCBs, then it will be higher in cost. Thus, you can save money by getting the cheapest type of metal core PCBs. The reason behind the low cost is that aluminum is easily available and has a low cost as compared to other metals used for MCPCBs.



2. High Thermal Conductivity

Aluminum is used because of its high thermal conductivity. It can easily dissipate the heat generated by the components on board. It can withstand high temperatures. The dielectric conducts the heat from the components and helps in dissipating the heat. Thus, it protects the components working on the board and can increase life. Moreover, there is no need to use heat sinks. If your PCB needs many heat sinks, then a better option could be aluminum PCB. It could save you money.



3. Shape Retainment

 The problem with the FR-4 board is that they cannot retain their shape at high temperatures. The board starts to bend, and it cannot retain its dimensions. On the other hand, the aluminum board can retain the shape under temperature and pressure stress.



4. Environmentally Friendly

Aluminum is environmentally friendly, and there is no harm in using it. It’s according to international standards. It’s 100% non-toxic. It can also be recycled.



5. Durability

Aluminum PCBs are durable. They can withstand wear and tear and extreme temperatures. Aluminum is much stronger than a common FR-4 substrate, and it has a high capability of preventing accidental damages. It can handle more pressure and stress. There is a very low probability of the breakage of the board.



6. Lightweight

Aluminum has a very lightweight as compared to copper and stainless steel. So, the final product can have less weight.



PCB Capactity
Base Material FR-4, 22F, CEM-3, CEM-1, aluminum, HB, 94V0
Layers 1-22 layers
Max Panel 1550mm*800mm
Copper Thickness 0.5oz, 1oz, 2oz, 3oz,4oz
Dielectric Thickness 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
Board Core Thickness 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm
Board Thickness 0.4mm - 4.0mm
Thickness Tolerance +/-10%
Aluminum Machining Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available
Min Hole 0.2 mm
Max Working Voltage 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)
Min Track Width 0.2mm (8mil)
Min Track Gap 0.2mm (8mil)
Min SMD Pad Pitch 0.2mm (8mil)
Surface Finishing HASL lead free, Immersion Gold, Immersion Silver
Solder Mask Color Green, Blue etc
Legend Color Black, White etc
E-test Yes
Certificate UL / CUL / ROHS / ISO9001

Square SMD LED aluminum plate pCB board For LED Light Lamp 0







FAQ:


Q1: How about your supply capacity?
A: For PCB board, you need to prepare files of Gerber file,it should including RS274X,ODB++, DXF, PCB, PCBDOC etc formats.For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample picture or 3D PDF version file etc.

Q2: How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

Q3: Do you have MOQ limited?
A:  We don’t have any MOQ limited, the minimum order we accept is 1pcs.
