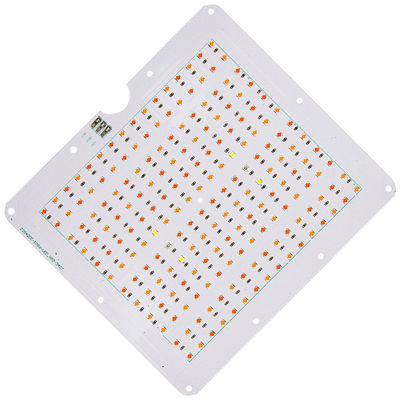

SMT Voltage 165V 265V LED Quantum Board For Plant Growth Lamp
led bulb lights led grow light board led module led plant growth lamp
Aluminum based PCB, also named Aluminium PCB, metal clad(MCPCB) PCB, insulated metal substrate(IMS or IMPCB) PCB, thermally conductive PCBs, etc. It is generally including single layer, double layer and multi layer.
Operating theory:
The power device surface mounting on circuit layer, it is ideally suited for the mounting of high power light emitting diodes (LEDs) easily dissipating the heat generated by power devices.
Aluminum based PCB used:
1. Audio devices: input, output amplifiers, balanced amplifiers, audio amplifier, preamplifier, power amplifier.etc.
2. Power Supply: Switching Regulator,DC / AC converter,SW regulator.
3. Telecommunications electronic equipment: high-frequency electric amplifiers ,Filtering appliance ,Transmitter circuit,etc.
4. Office automation equipment: Electric motor, drives.etc
5. Automotive: Electronic regulator, Ignition, Power Controllers.etc
6. Computer: CPU board ,Floppy drive ,Power Device.etc
7. Power Modules:Converter, solid-state relay ,Power Rectifier bridges,etc
8. Lamps Lighting: with the promotion of energy-saving lamps, Aluminum base PCB , used on LED lights ,begin large-scale application.
|
PCBA Capabilities
|
|
|
Turnkey PCBA
|
PCB+components sourcing+assembly+package
|
|
Assembly details
|
SMT and Thru-hole, ISO SMT and DIP lines
|
|
Lead Time
|
Prototype: 15 work days. Mass order: 20~25 work days
|
|
Testing on products
|
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
|
|
Quantity
|
Min quantity: 1pcs. Prototype, small order, mass order, all OK
|
|
Files needed
|
PCB: Gerber files(CAM, PCB, PCBDOC)
|
|
Components: Bill of Materials(BOM list)
|
|
|
Assembly: Pick-N-Place file
|
|
|
PCB Panel Size
|
Min size: 0.25*0.25 inches(6*6mm)
|
|
Max size: 20*20 inches(500*500mm)
|
|
|
PCB Solder Type
|
Water Soluble Solder Paste, RoHS lead free
|
|
Components details
|
Passive Down to 0201 size
|
|
BGA and VFBGA
|
|
|
Leadless Chip Carriers/CSP
|
|
|
Double-sided SMT Assembly
|
|
|
Fine Pitch to 0.8mils
|
|
|
BGA Repair and Reball
|
|
|
Part Removal and Replacement
|
|
|
Component package
|
Cut Tape,Tube,Reels,Loose Parts
|
|
PCB assembly process
|
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
