ROHS Aluminum 3030 2835 Single Sided PCBs For Greenhouse Light
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Single-sided PCB 05
High Light:

2835 Single Sided PCBs

,

3030 Single Sided PCBs

,

265V 2835 LED PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Voltage: 165-265V
Copper Thickness: 0.5oz-2oz
Material: Aluminum Circuit Board
Certificate: ISO9001:2008,ROHS,UL
Product Name: Led Pcb Board
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing
Product Description

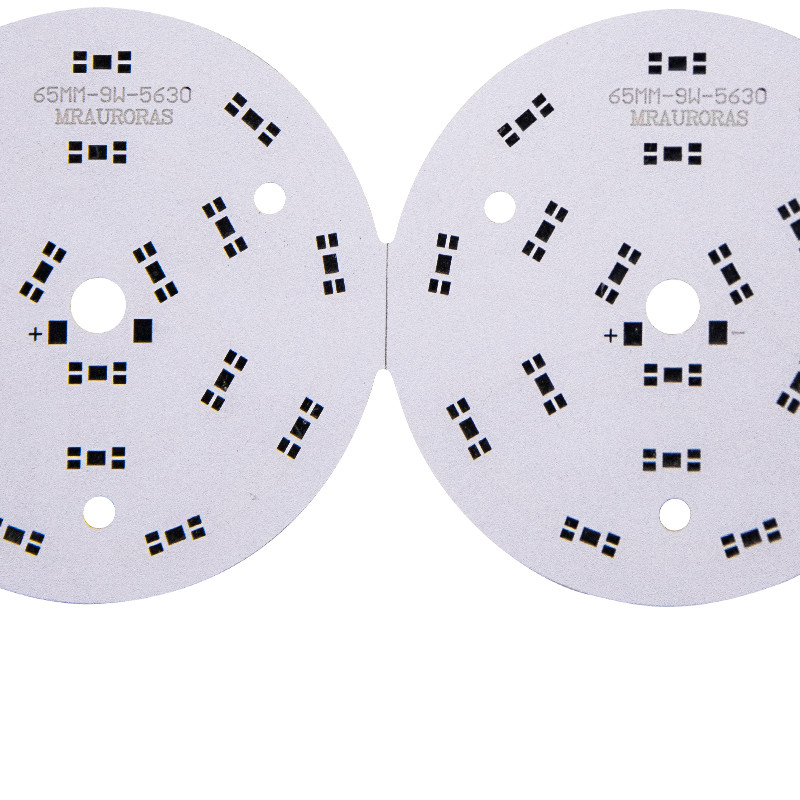

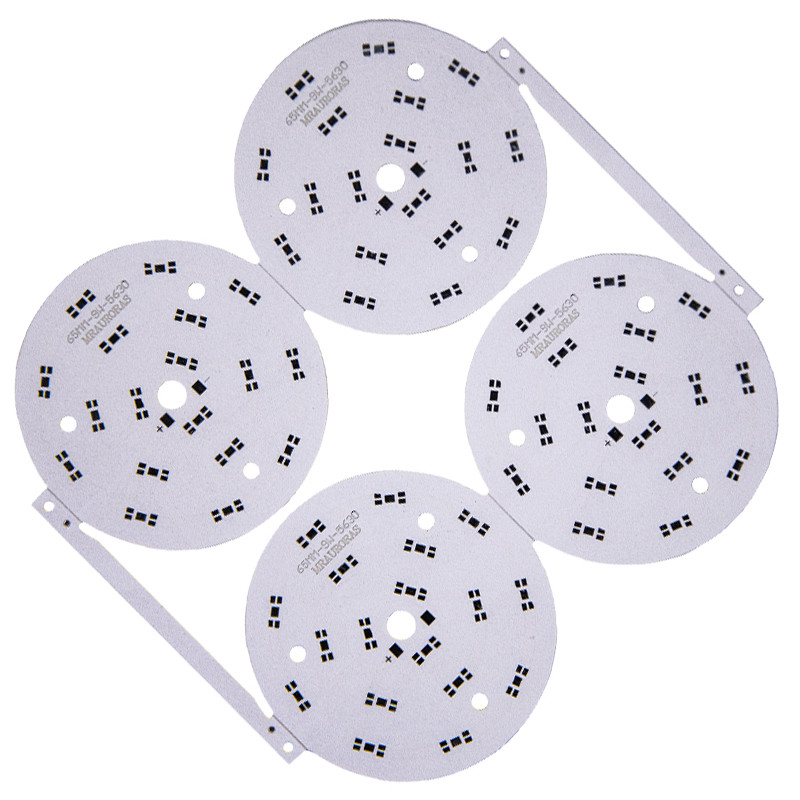

ROHS Aluminum 3030 2835 Single Sided PCBs For Greenhouse Light



2835 3030 aluminum led pcb MCPCB board 94v0 led pcb for greenhouse light



Pros of Aluminum PCB:

  • Meet ROHS requirements;
  • It is more suitable for SMT process;
  • In the circuit design scheme, the thermal diffusion is treated effectively to reduce the operating temperature of the module, prolong the service life, and improve the power density and reliability;
  • Reduce the assembly of radiator and other hardware (including thermal interface materials), reduce product volume, and reduce hardware and assembly costs;
  • The power circuit and control circuit are optimized;
  • Replace the fragile ceramic substrates for better mechanical durability;
  • Cons of Aluminum PCB
  • The cost is high. (At FastPCBunion.com, we could help you reduce the cost, and make sure that switch from FR4 to Aluminum PCB would not cost you any extra for your LED appliances.)
  • At present, the design of Aluminum PCB is mainly limited to 1-2 layer board, due to the mainstream manufacturing capability.
  • It is easy to have problems in electrical strength and withstand voltage. (At FastPCBunion.com, we have resolved the problem)
PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing



ROHS Aluminum 3030 2835 Single Sided PCBs For Greenhouse Light 0

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What is needed for PCB PCBA quotation?

A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

    PCBA: PCB information, BOM, (Testing documents...)

Q3.  Do you have any MOQ limit for led light order?

A:  Low MOQ, 1pc for sample checking is available
