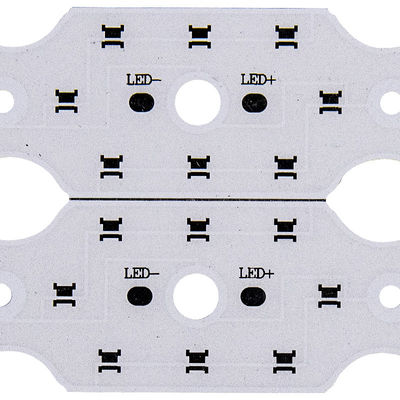

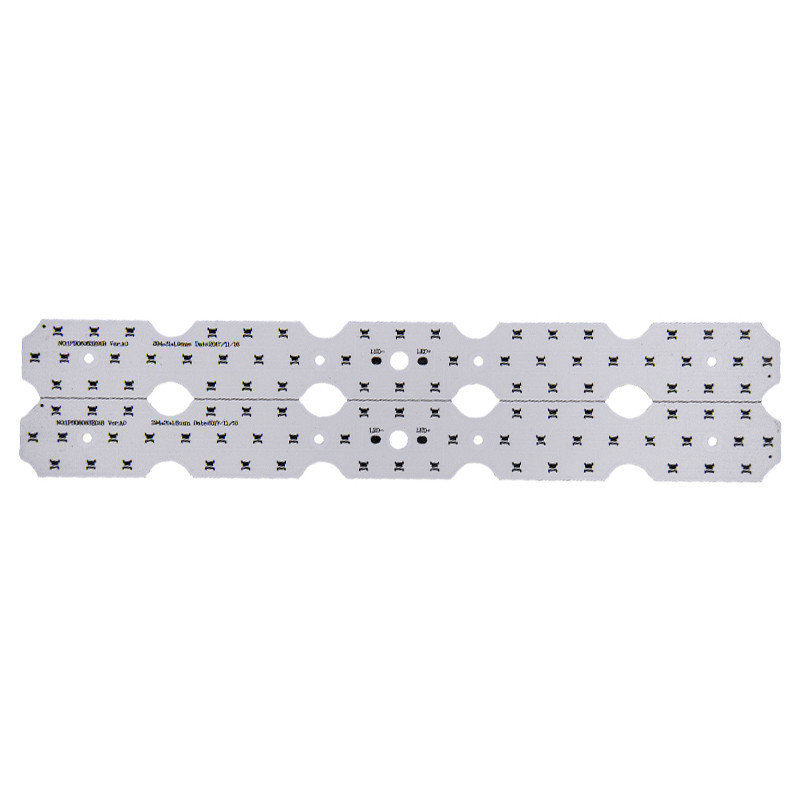

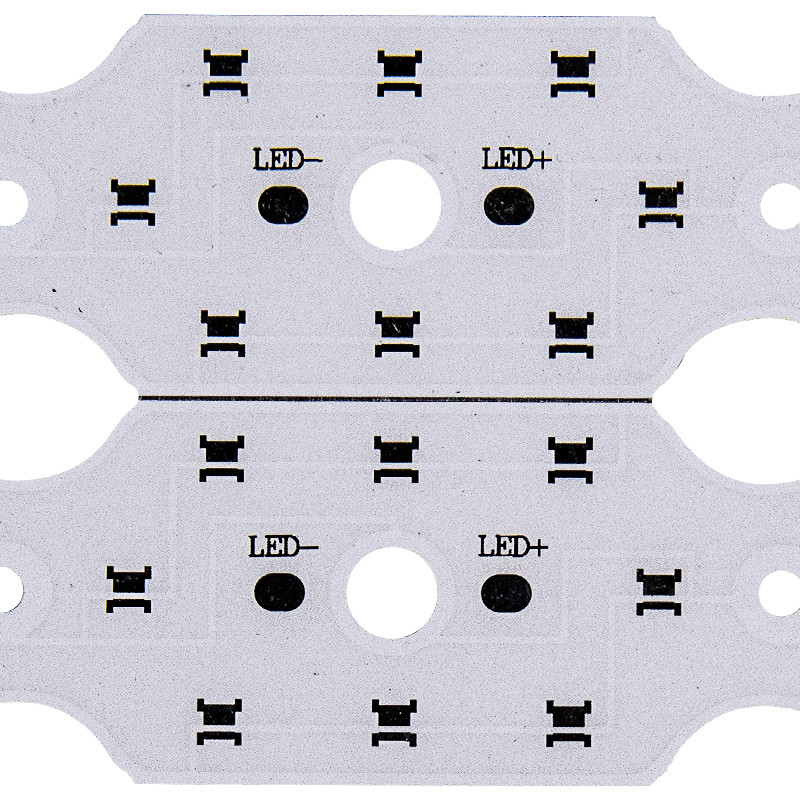

Aluminum 6000K 2835 Single Sided PCB Board SMD LED Lamp Assembled
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Single-sided PCB 06
High Light:

2835 Single Sided PCB Board

,

6000K Aluminum PCB Board

,

6000K Single Sided PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Layer: 1-2 Layers
Copper Thickness: 0.5oz-2oz
Material: Aluminum Circuit Board
Certificate: ISO9001:2008,ROHS,UL
Service Type: OEM/ODM
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing
Product Description

Aluminum 6000K 2835 Single Sided PCB Board SMD LED Lamp Assembled



6000K Aluminum PCB Board 2835 SMD LED PCB LED Lamp Assembled LED Board



What is Aluminum PCB?

Aluminum PCB is the PCB type that used the low alloyed Al-Mg-Si with high plasticity alloy plate as the substrate material that has better thermal conductivity, electrical insulation, and machining performance, compared with the traditional FR4 PCB.



Similar to other types of PCBs, Aluminum PCB is structured by the conductive layer (copper layer); insulation layer (dielectric layer); and the substrate layer.



Aluminum PCB is capable to stand higher current with the same thickness and line width. Aluminum PCB is able to withstand voltage up to 4500V and thermal conductivity is more than 2.0. At present, aluminum PCB is the most common type for LED lighting PCB applications.



Common LED PCB has two sides. The top side with white solder mask is used for soldering SMD LED beads, and the other side normally has no solder mask and showing as aluminum metal color. If there is a demand for high-power heat dissipation, the aluminum base can also be coated with a thermal conductive silicone grease layer to connect with the installed heatsinks for better heat dissipation.



Single-side LED PCB

Layer

Single-side

Board thickness

0.8, 1.0, 1.2, 1.5, 1.6, 2.0

Copper foil thickness

18um, 25um,35um, 70um (can be customized,.the price is deifferent)

Surface Treatment

OSP

Silkscreen

White, Yellow, Black

PCB size

can be customized

Base Material

Aluminum

Package

Vacuum Package



Aluminum 6000K 2835 Single Sided PCB Board SMD LED Lamp Assembled 0





Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What is needed for PCB PCBA quotation?

A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

    PCBA: PCB information, BOM, (Testing documents...)

Q3.  How long is the lead time?

A:  For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 word days.
