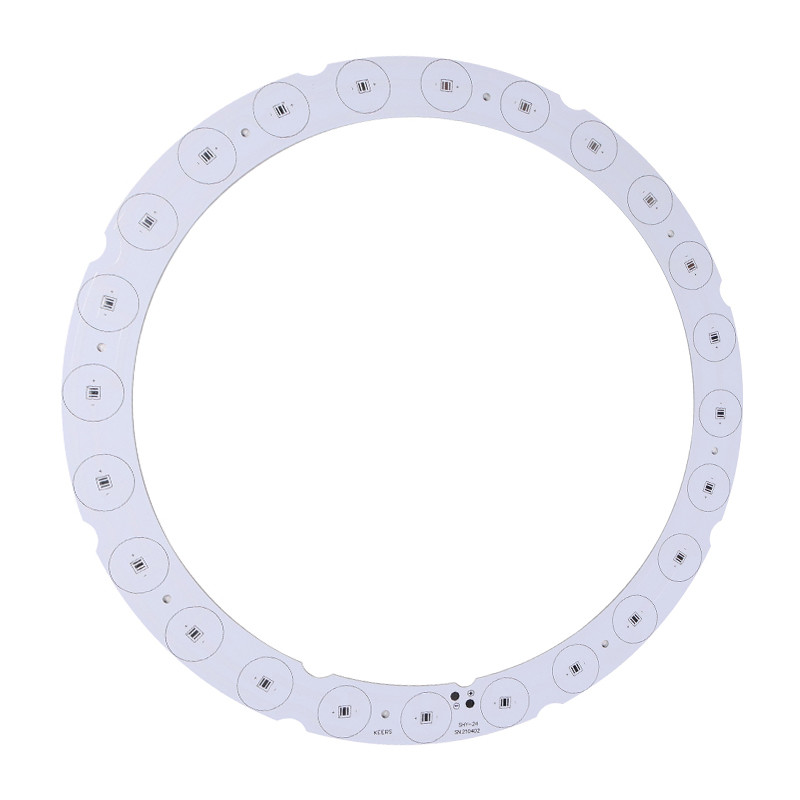

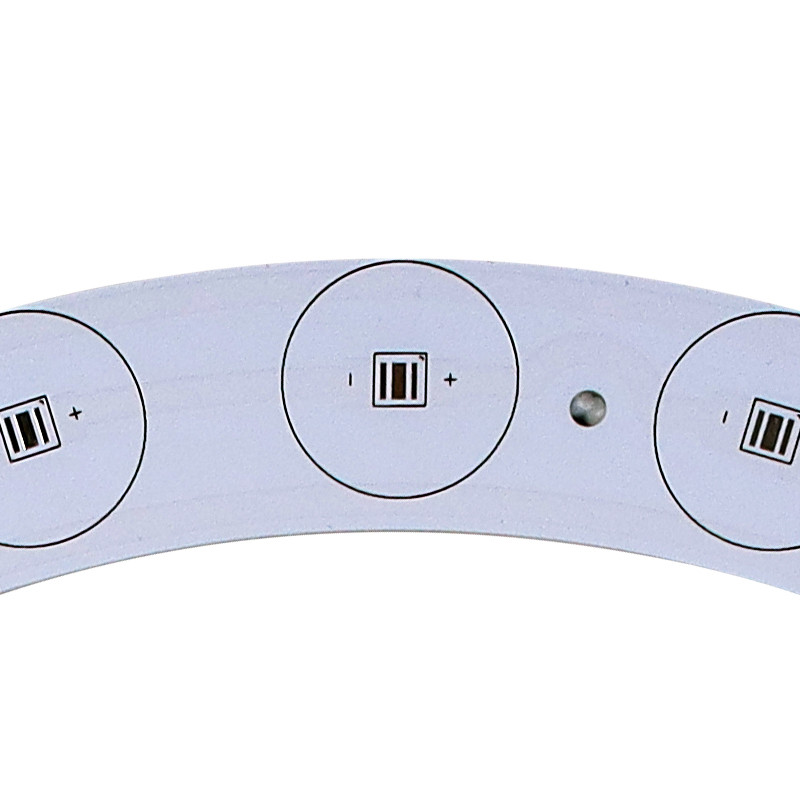

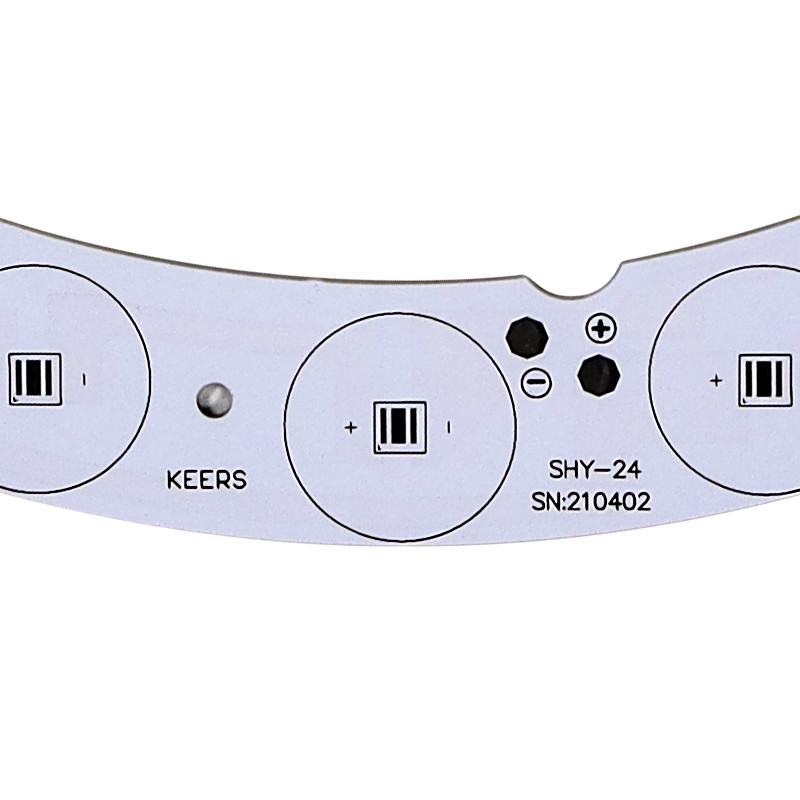

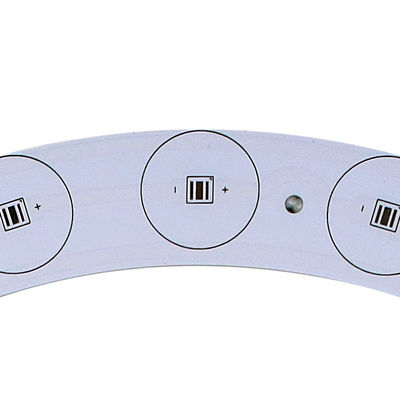

SMD Aluminum Single Sided PCBs Circuit Board For LED Bulb Light
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Single-sided PCB 06
High Light:

Aluminum Single Sided PCBs

,

SMD Single Sided PCBs

,

LED Bulb Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Layer: 1-2 Layers
Service: Oem Led Light Pcba
Material: Aluminum Circuit Board
Certificate: ISO9001:2008,ROHS,UL
Surface Finishing: HASL,OSP,ENIG, Gold Finger
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing
Product Description

SMD Aluminum Single Sided PCBs Circuit Board For LED Bulb Light



SMD led Single-Side Aluminum Pcb Led Bulb Light Circuit Board for LED light


Specification:

1.   Surface Treatment ---- HASL,Flash gold Immersion Gold/Nickle,OSP

2.   Number of Layer ----- Single Sided , Two-sided and multilayer ,Special layer

3.   Max. PCB Size ----- 600mm×500mm

4.   PCB Thickness ----- 0.5-5.0mm

5.   Copper Foil Thickness ----- H 1 2 3 4 6 10 (oz)

6.   Insulating Layer Thickness ----- 50 75 100 125 150 (um)

7.   Metal Base Type ----- Al (1100,5052,6061),Cu, Fe, Stainless Steel etc.

8.   Metal Substrate ----- 0.5 0.8 1.0 1.2 1.5 2.0 3.0 3.2 (mm)

9.   Shaping ----- Die PunchingStampingRouteV-Cut

10.  Solder Mask Colour ----- GreenWhiteBlackRedYellow

11.  The Minimum Letter Height ----- 0.8 (mm)

12.  The Minimum Letter Line Width ----- 0.15 (mm)

13. The Minimum Line Width ----- 0.15 (mm)

14.  The Minimum Line Spacing ----- 0.15 (mm)

15.  The Minimum Hole Diameter ----- 0.5 (mm)

16.  Special hole ----- Spot facing, ,cup hole

17.  File Format ----- Gerberprotelpowerpcbactocad

SMD Aluminum Single Sided PCBs Circuit Board For LED Bulb Light 0





Q1. How about your supply capacity?

A:  Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q2. What is needed for PCB PCBA quotation?

A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

    PCBA: PCB information, BOM, (Testing documents...)

Q3.  How can I get a sample to check your quality?

A:  After price confirmation,you can place orders for samples for your testing and evaluation.
