Multilayer COB Double Sided PCB Assembly 94v0 LED Aluminum PCB
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: led tube light mcpcb 02
High Light:

COB Double Sided PCB Assembly

,

94v0 Double Sided PCB Assembly

,

94v0 LED Aluminum PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Layer: 1-2 Layers
Led Quantity: Can Be Customized
Soldermask Color: Green/ White/ Black/ Blue/ Yellow
Board Thickness: 1.0/1.2/1.6mm
Surface Finishing: OSP, HASLENIG OSP
Testing: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

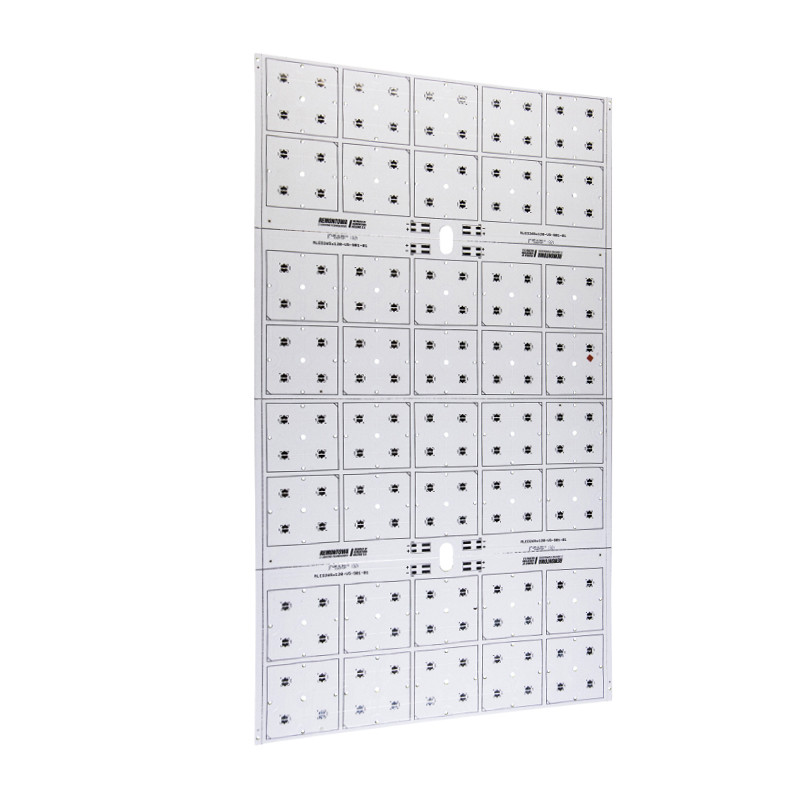

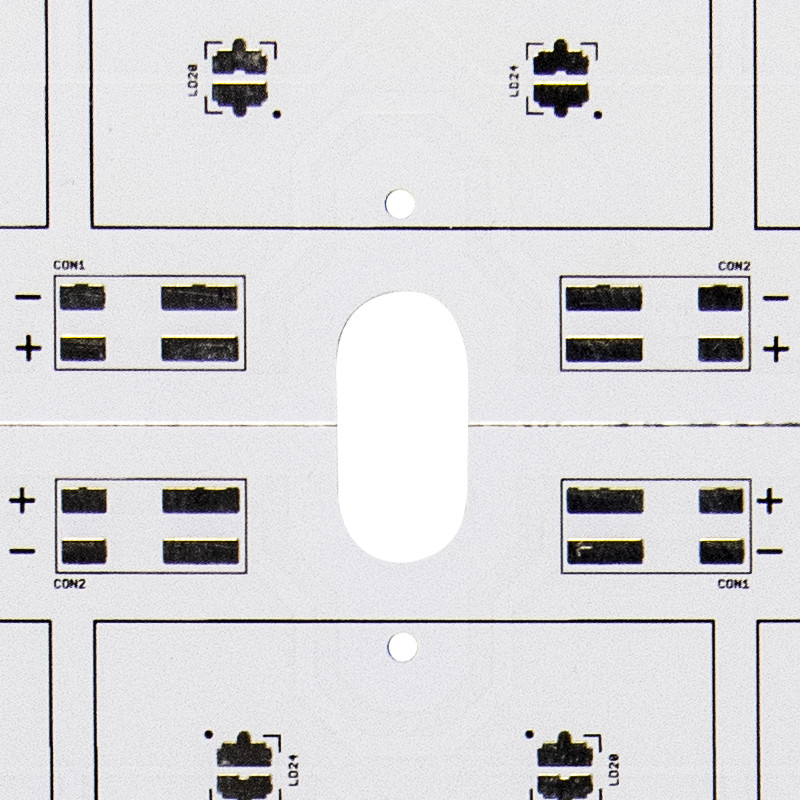

Multilayer COB Double Sided PCB Assembly 94v0 LED Aluminum PCB



Custom cob led moude multilayer Led Bulb PCB 94v0 Aluminum Led Light



 A thin layer of thermally conductive but electrically insulating dielectric is laminated between a metal base and a copper foil. The copper foil is etched into the desired circuit pattern and the metal base draws heat away from this circuit through the thin dielectric.



BENEFITS OF ALUMINUM PCBS

  • Heat dissipation is dramatically superior to standard FR-4 constructions.

  • The dielectrics used are typically 5 to 10 times as thermally conductive as conventional epoxy-glass and a tenth of the thickness

  • Thermal transfer exponentially more efficient than a conventional rigid PCB.

  • Lower copper weights than suggested by the IPC heat-rise charts can be used.

Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
