Flex 0.25mm Aluminum LED PCB
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led Module Pcb
High Light:

Flex 0.25mm Aluminum LED PCB

,

Thick 8.0mm Aluminum LED PCB

,

Thick 8.0mm Aluminum Base PCB

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: Led Module Pcb
PCB Standard: IPC-II Standard
Silk Screen: White,black,yellow
Board Thickness: 0.2~8.0mm, Flex 0.1-0.25mm
Hole Tolerance: PTH: ±0.075, NTPH: ±0.05
Service: One-stop Service
Product Description

Flex 0.25mm Aluminum LED PCB

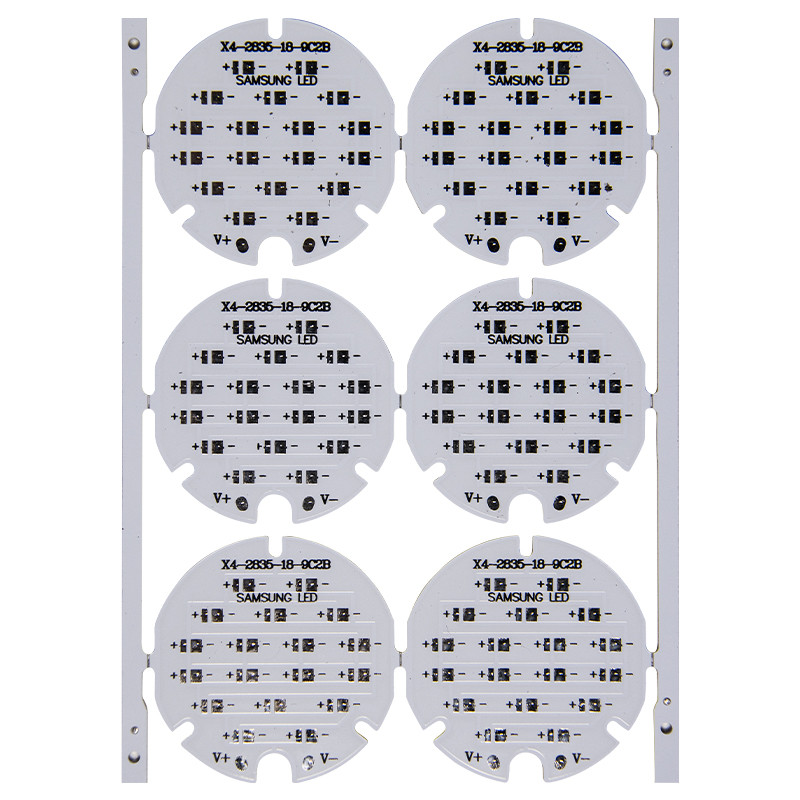

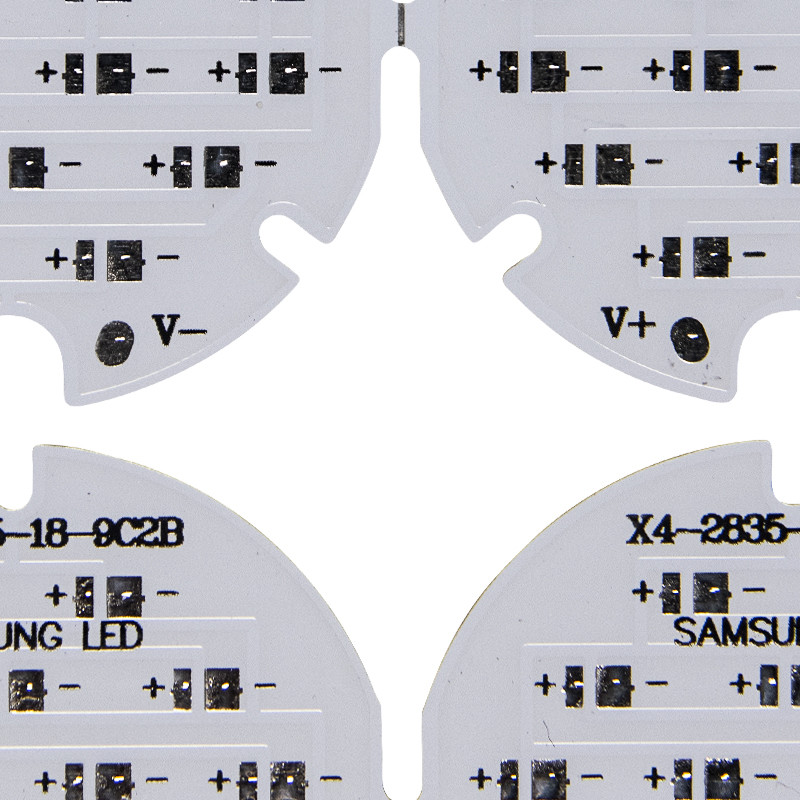

Led Module Pcb Aluminum Base Circuit Board Used For Led Light



The Relationship Between LED and Printed Circuit Board:

Technical Innovation of Printed Circuit Board

The Printed Circuit Board is a genius innovation of circuit technology, laying less space and materials for more complex and large-scale circuits. The printed circuit board is such an important invention in circuit technology because it makes electrical and electronic components smaller, more flexible, and more precise. For example, FPC( Flexible PCB ), Multilayer PCB, BGA PCB, rigid- Flex PCB, and so on.



Wide Application of LED Lighting

LED is an abbreviation for light-emitting diode. An LED is mostly a two-lead semiconductor device that emits light when current passes in a specific direction. Although LEDs start with devices that only emit low-intensity infrared light, this technology has been widely used in lighting for many years. Modern LEDs provide not only high intensity, very bright light but also different uses and use in various scenes, such as plant growth lights, car lights, street lights, traffic lights, shadowless lights in hospital operating rooms.



LED Printed Circuit Board

Soldering the LED chip to the PCB Board, as long as the PCB circuit is connected in some way, it will illuminate, which forms the LED PCB. LED PCBs typically also have a heat sink and ceramic pedestal to hold the circuit in place and allow the smooth operation of the channel. A heat sink is required because LEDs tend to generate a lot of heat, which can damage the PCB and the equipment that connects the circuits.

Because LED will produce a lot of heat, led PCB generally uses metal substrate as its production material. Metals with the ability to dissipate heat quickly have proved to be a better choice. Generally, whenever led PCB is designed, Aluminum PCB is preferred. Aluminum PCB usually also contains a thin layer of dielectric, which can dissipate heat faster.

In addition to general lighting, led PCB can also provide visible light, infrared, and ultraviolet light. Compared with other light sources, LED PCB can provide higher energy.



Layer
1~64 Layers
Material
FR4, CEM1, CEM3, Hight TG, Rogers, F4B, Taconic, FR1, FR2, 94V0, Aluminum
Production Capacity

30000 ㎡/months

Board shape
Rectangular, Round, Slots, Cutouts, Complex Irregular
Board cutting
Shear, V-Score, Tab-Routed, Counter Sunk
Board thickness
0.2~8.0mm, Flex 0.1-0.25mm
Copper weight
0.5oZ~12oZ
Solder Mask
Double-sided Green LPI, Red, White, Yellow, Blue, Black, Purple etc.Solder mask
Silk screen
Double-Sided or Single-Sided in White, Yellow, Black etc
Min line width/space
0.08mm/3mil
Max board dimensions
25.6inch*43.3inch or 650mm*1100mm
Min drill hole diameter
0.1mm
Min Laser Drill hole diameter
0.075mm
Surface finish
HASL, ENIG, Immersion Tin, Immersion Silver, OSP,ENEPIG etc
Board thickness toleranc
± 10%
Min slot width
0.12",3.0mm,or 120mils
V-score depth
20-25% of board thickness
PTH Wall Thickness
>0.025mm
PTH Hole Dia Tolerance
±0.076mm
Non PTH Hole Dia Tolerance
±0.05mm
Hole Position Deviation
±0.076mm
Sink holes
Yes
Quality Standard
IPC-A600F/MIL-STD-105D
Design file format
Gerber RS-274X, 274D, Eagle and AutoCAD'S DXF,DWG



Flex 0.25mm Aluminum LED PCB 0

Flex 0.25mm Aluminum LED PCB 1


FAQ:

Q1.  Do you have MOQ limited?

A:  We don’t have any MOQ limited, the minimum order we accept is 1pcs.



Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.



Q3:  What are the main products of your PCB/PCBA services?

A:  Industrial control, Automotive, Medical Equipment, Communication Electronics, Security Devices.
