Custom Solar Light 94v0 LED PCB Board Aluminium Flying Probe
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: solar light pcb
High Light:

94v0 LED PCB Board

,

3oZ LED PCB Board

,

94v0 LED Tube Light Circuit Board

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: Solar Light Pcb
Copper Thickness: 1oZ 2oZ 3oZ
Silk Screen: White,black,yellow
Electrical Testing: Fixture / Flying Probe
Application: Led Light Pcb Board Design
Surface Finishes: OSP, HASL, HASL Lf, Immersion Gold, Etc.
Product Description

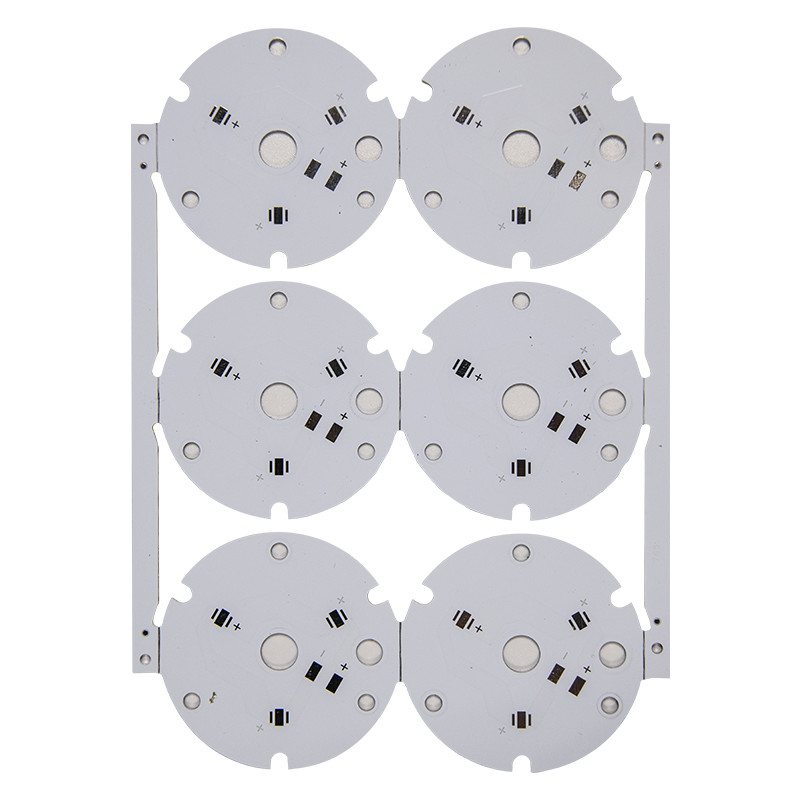

Custom Solar Light 94v0 LED PCB Board Aluminium Flying Probe



Custom solar light pcb 94v-0 aluminium pcb circuit board pcb leds



What is an SMD LED PCB Board?

SMD stands for Surface Mount Device. The surface mount technology (SMT) has almost replaced the through-hole technology. However, through-hole technology is still used for the components that cannot be surface mounted. Therefore, Surface Mount LED PCB is very popular

SMDs are compact components that can be directly placed over the PCB. There is no need for a hole because the components do not have leads or might have small leads. There are only small contacts at the ends of the device that are used to make connections. Consequently, the PCBA is very compact. SMDs are soldered using reflow soldering. At first, the solder paste is applied on the bare board. Then, the components are picked and placed in the desired place. Finally, the board is passed through a reflow oven, and the components are directly mounted without any hassle.

An SMD LED PCB board contains SMD LEDs that are more compact than their through-hole equivalents. SMD LEDs are widely used nowadays. They provide higher lumen output, which improves the level of illuminance in the area. They are more efficient and brighter. This is the reason SMD LED PCB boards are preferred.



Layers

Mass production: 2~58 layers / Pilot run: 64 layers

Max. Thickness

Mass production: 394mil (10mm) / Pilot run: 17.5mm

Material

FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc.

Min. Width/Spacing

Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)

Max. Copper Thickness

UL certificated: 6.0 OZ / Pilot run: 12OZ

Min. Hole Size

Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)

Max. Panel Size

1150mm × 560mm

Aspect Ratio

18:1

Surface Finish

HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger

Special Process

Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

Custom Solar Light 94v0 LED PCB Board Aluminium Flying Probe 0

Custom Solar Light 94v0 LED PCB Board Aluminium Flying Probe 1
