Round Thick 1.0mm 1.6mm SMD Printed Circuit Board For LED Rock Light
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: PCB Circuit Board 05
High Light:

1.6mm SMD Printed Circuit Board

,

Thick 1.0mm LED Printed Circuit Board

,

Thick 1.0mm Printed Circuit Board For LED

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Copper Thickness: 1oZ 2oZ 3oZ
PCB Size: Can Be Customized
Board Thickness: 1.0/1.2/1.6mm
Certificate: ISO9001:2008,ROHS,UL
Testing: Fixturer Testing Jig/flying Testing
Application: Commercial Lighting, Office, School, Hospital Etc
Product Description

Round Thick 1.0mm 1.6mm SMD Printed Circuit Board For LED Rock Light



Led pcb board rock light round SMD PCB printed circuit board for led



Advantages of Aluminum PCB:

Aluminum boards are one of the most thermally conductive PCB options. They keep as much heat away from vital components as possible to ensure minimal circuit damage. Thanks to their high heat tolerance, they can handle higher density circuits and larger power levels. Substrates created from aluminum alloys have a high level of physical durability that lowers the risk of breakage. Compared to other metals, aluminum has a lower environmental impact in addition to a reasonable cost.



On the other hand, aluminum PCBs tend to have more niche uses than standard boards. While they cost less than adding conductors to a copper board, they have a higher price than standard PCBs without those components. Investing in an aluminum core may not pay off if your application doesn’t involve high temperatures. If you plan on creating a flex circuit, an aluminum flex PCB can only flex into its initial position. It will bend to fit into smaller electronics, but it won’t withstand the stress of vibration.

Low Cost: Aluminum is a metal that can be found in a variety of climates, so it is easy to mine and refine. Therefore, the costs of doing so are significantly lower than other metals. In turn, this means that manufacturing products with these metals are less expensive as well.

Higher Durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot. Aluminum is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.



ITEM

Capability

Layers

1-2

Thicker Copper

1-6OZ

Products Type

HF(High-Frequency)&(Radio Frequency) board, lmpedance
controlled board. HDl board.BGA& Fine Pitch board

Solder Mask

Nanya&Taiyo; LPl & Mattgreen,yellow,white,blue,black,red.

Base material

FR4(Shengyi China,  ITEQ, KBA+,HZ), Hl-TG.

FR06,Rogers Taconic, Argon, Nalco, lsola, aluminum and so on

Finished Surface

HASL.Lead-free HASL.Falsh Gold, ENIG(Immersion Gold).
OSP, lmmersion Tin.lmmersion Silver,Hard Gold

Technical Specification

Minimum line width/gap:3.5/4mll(laserdrill)
Minimum hole size:0.2mm(mechanical drill)/4mil(laser drill)
Minimum Annular Ring: 4mil
Max Copper thickness: 60Z
Board Thickness:D/S: 0.2-4.0mm.

Multilayers:0.40-4.0mm,

Min Solder Mask Bridge:0.08mm

Aspect ratio: 8: 1
Plugging Vias capability: 0.2-0.8mm

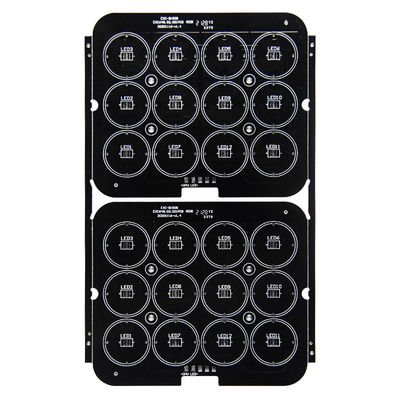

Round Thick 1.0mm 1.6mm SMD Printed Circuit Board For LED Rock Light 0

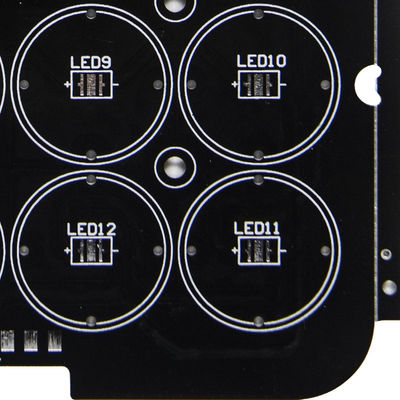

Round Thick 1.0mm 1.6mm SMD Printed Circuit Board For LED Rock Light 1
FAQ:

Q1.  How about your supply capacity?

A:  Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.



Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.



Q3:  Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
