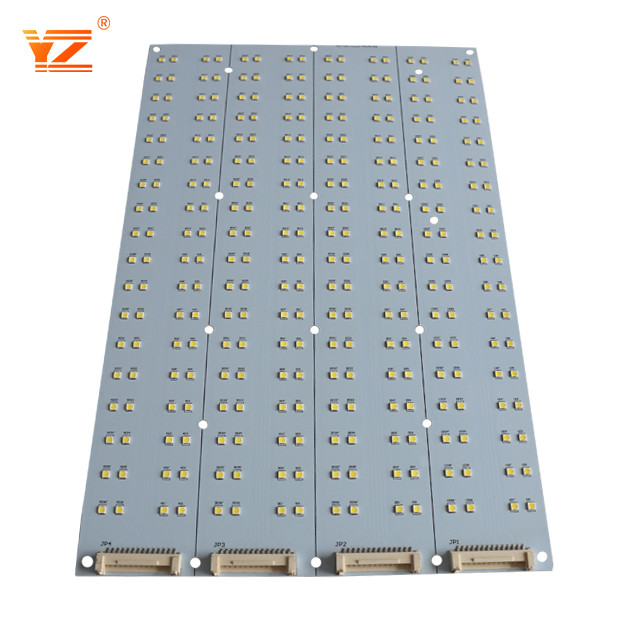

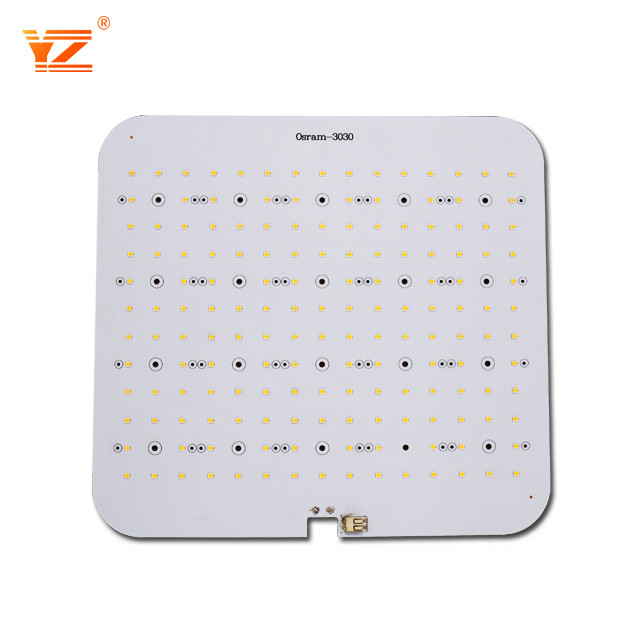

White Silkscreen 220v PCB Printed Circuit Board Assembly 5730 LED Chips
OEM LED Aluminum Circuit board 220v 5730 Led chips For LED PCB Board
Aluminum PCB:
Aluminum PCB is a kind of metal-based copper clad laminate with good heat dissipation function. Generally, single panel consists of three layers, namely circuit layer (copper foil), insulation layer and metal base. Used for high-end use is also designed for double panels, the structure is circuit layer, insulation layer, aluminum base, insulation layer, circuit layer. Very few applications are multi-layer boards, which can be made by bonding ordinary multi-layer boards with insulating layer and aluminium base.
LED PCB is Aluminum PCB, which is also the meaning of printed circuit board, but the material of PCB is aluminum alloy. In the past, the material of PCB is glass fiber, but because the heat of LED is bigger, the PCB used for LED lamps is generally aluminum Substrate, which can conduct heat quickly. The PCB used for other equipment or electrical appliances is glass fiber board.
|
PCB Capactity |
|
|
Base Material |
FR-4, CEM-3, aluminum |
|
Layers |
1-22 layers |
|
Max Panel |
1550mm*800mm |
|
Copper Thickness |
0.5oz, 1oz, 2oz, 3oz,4oz |
|
Dielectric Thickness |
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
|
Board Core Thickness |
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm |
|
Board Thickness |
0.4mm - 4.0mm |
|
Thickness Tolerance |
+/-10% |
|
Aluminum Machining |
Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
|
Min Hole |
0.2 mm |
|
Max Working Voltage |
2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
|
Min Track Width |
0.2mm (8mil) |
|
Min Track Gap |
0.2mm (8mil) |
|
Min SMD Pad Pitch |
0.2mm (8mil) |
|
Surface Finishing |
HASL lead free, Immersion Gold, Immersion Silver |
|
Solder Mask Color |
Green, Blue etc |
|
Legend Color |
Black, White etc |
|
E-test |
Yes |
|
Certificate |
UL / ROHS / ISO9001 |
PCB LED lights can be incorporated into numerous lighting applications due to their combination of excellent energy efficiency, low cost and maximum design flexibility. Examples include Automotive headlights, Airport runway landing lights, Lighting used in military field applications, Street lighting, Highway tunnel lighting, Photovoltaic (solar) lighting, Flashlights and lanterns, Traffic and signal lighting, Lighting in hospital operating rooms, High growth plant lighting and many others.
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs. .
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: What is needed for PCB PCBA quotation?
A: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
