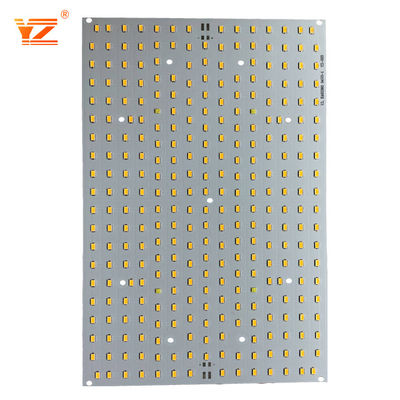

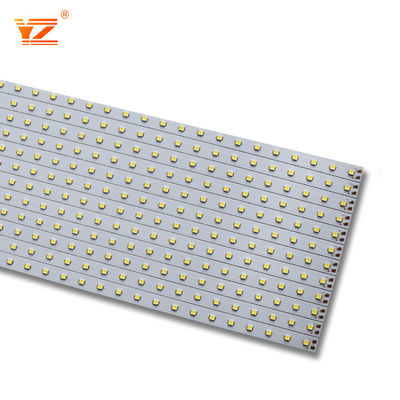

Custom ROHS 12V Prototype PCB Assembly For Office LED Lighting
Led Circuit Board 12v Oem Light Pcba Aluminum Bulb For Office Lighting
Introduction:
Aluminum PCB/Metal Core PCB/MCPCB
Among all Metal core PCBs(MCPCBs,known for their ability to provide effective thermal dissipation for electronic products), Aluminum PCBs is the most common type-the base material consists of aluminum core with standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner, while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCBs is regarded as the solution to high power and tight tolerance applications.Aluminum PCBs printed by us are widely used for LED lighting, power equipment and automotive systems.
We can produce 1Layer, 2Layer ,4 Layer and 6l ayer Aluminum PCB.Multilayer aluminum PCB is mainly used by high power industria products,Like outdoor Led screen .
Aluminum Core materials:
Peeling strength (n/mm):1.8
Insulation resistance (ω):>1*10 g
Breakdown voltage (vdc):>2 k
Soakable soldering (°C/m):280°C/260°C,1 min,no bubble&delamination
Thermal conductivity (ω/m-k):>0.8
Thermal resistance (°C/ω):< 1.2
Combustibility:fv-o
Dielectric constant (1mhz):4
Dielectric loss angle (tangent):0.03
|
PCB Capactity |
|
|
Base Material |
FR-4, CEM-3, aluminum |
|
Layers |
1-22 layers |
|
Max Panel |
1550mm*800mm |
|
Copper Thickness |
0.5oz, 1oz, 2oz, 3oz,4oz |
|
Dielectric Thickness |
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
|
Board Core Thickness |
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm |
|
Board Thickness |
0.4mm - 4.0mm |
|
Thickness Tolerance |
+/-10% |
|
Aluminum Machining |
Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
|
Min Hole |
0.2 mm |
|
Max Working Voltage |
2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
|
Min Track Width |
0.2mm (8mil) |
|
Min Track Gap |
0.2mm (8mil) |
|
Min SMD Pad Pitch |
0.2mm (8mil) |
|
Surface Finishing |
HASL lead free, Immersion Gold, Immersion Silver |
|
Solder Mask Color |
Green, Blue etc |
|
Legend Color |
Black, White etc |
|
E-test |
Yes |
|
Certificate |
UL / ROHS / ISO9001 |
Applications of Aluminum PCB:
General lighting applications (Streetlight , Flashlight, Spotlight, etc.)
Back light unit applications
System automotive LED applications
Power converters: telecom, high voltage regulator, power supplies
Hybrid/electric motor control applications
Photovoltaic
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
