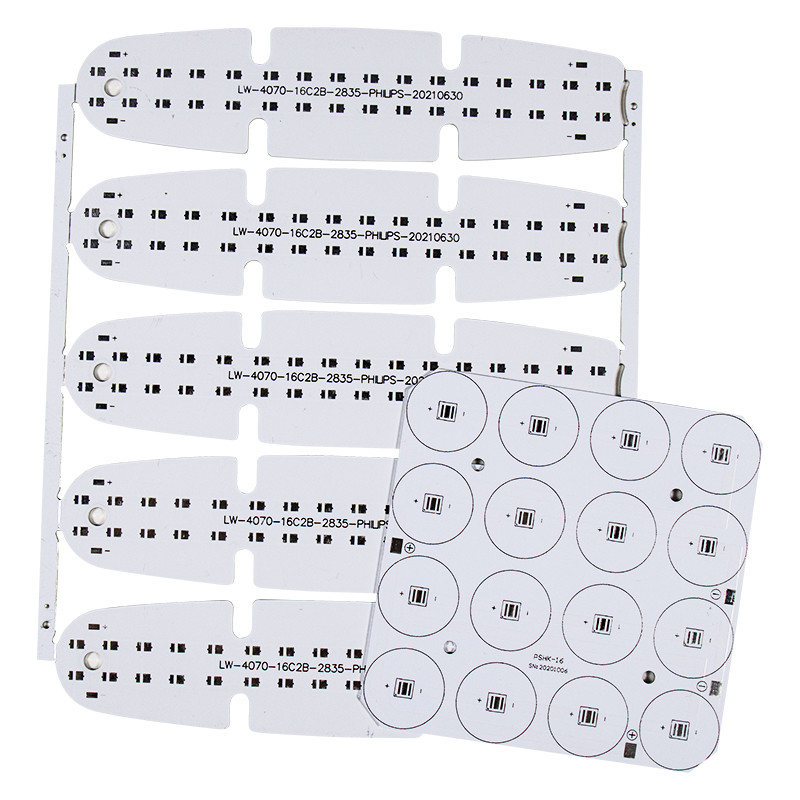

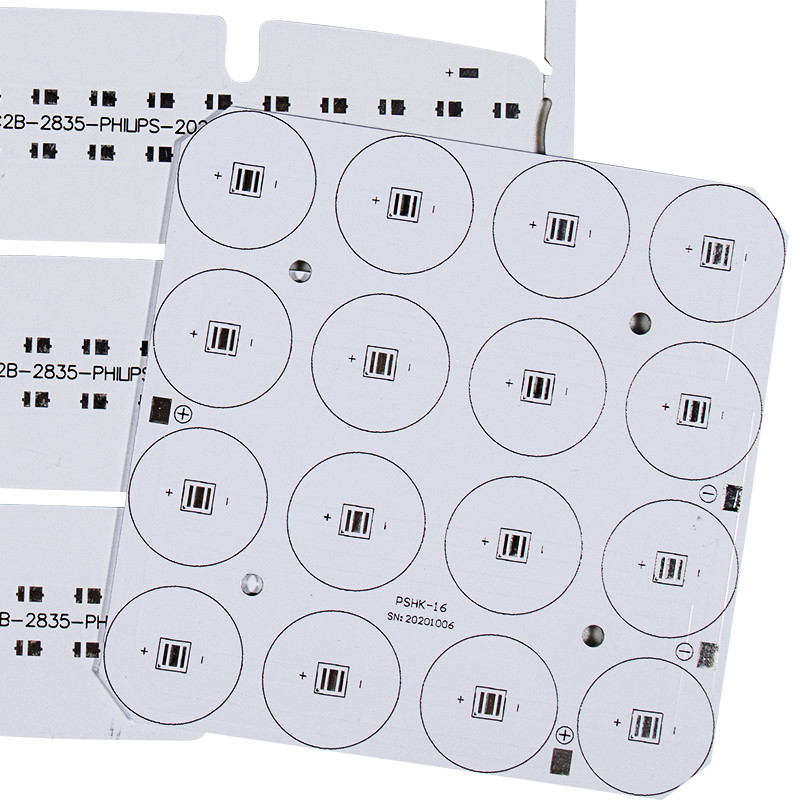

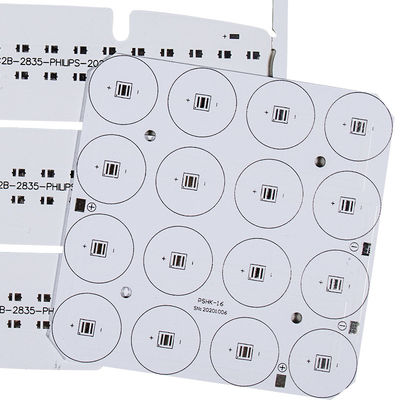

Single Sided Thick 1.0mm SMD LED Circuit Board 12v LED Light
Customized single-side round aluminum pcb 12v led light circuit board
Aluminum based PCB, also named Aluminium PCB, metal clad(MCPCB) PCB, insulated metal substrate(IMS or IMPCB) PCB, thermally conductive PCBs, etc. It is generally including single layer, double layer and multi layer.
Operating theory:
The power device surface mounting on circuit layer, it is ideally suited for the mounting of high power light emitting diodes (LEDs) easily dissipating the heat generated by power devices.
Aluminum based PCB used:
1. Audio devices: input, output amplifiers, balanced amplifiers, audio amplifier, preamplifier, power amplifier.etc.
2. Power Supply: Switching Regulator,DC / AC converter,SW regulator.
3. Telecommunications electronic equipment: high-frequency electric amplifiers ,Filtering appliance ,Transmitter circuit,etc.
4. Office automation equipment: Electric motor, drives.etc
5. Automotive: Electronic regulator, Ignition, Power Controllers.etc
6. Computer: CPU board ,Floppy drive ,Power Device.etc
7. Power Modules:Converter, solid-state relay ,Power Rectifier bridges,etc
8. Lamps Lighting: with the promotion of energy-saving lamps, Aluminum base PCB , used on LED lights ,begin large-scale application.
|
Item
|
Capability
|
|
1.Base Material
|
FR-4 / High TG FR-4 /Aluminum /CEM-1/Rogers/Arlon/Taconic/Teflon
|
|
2.Layers
|
1-22
|
|
3.Finised inner/outer copper thickness
|
1-6OZ
|
|
4.Finished board thickness
|
0.5-7.0mm
|
|
5.Min hole size
|
Mechanical hole: 0.15mm Laser hole: 0.1mm
|
|
6.Controlled Impedance
|
+/-5%
|
|
7.Plugging vias capability
|
0.2-0.8mm
|
|
8.Outline profile
|
Rout/ V-cut/ Bridge/ Stamp hole
|
|
9.Surface treatment
|
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...
|
FAQ:
Q1. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: How long is the lead time?
A: For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 work days.
