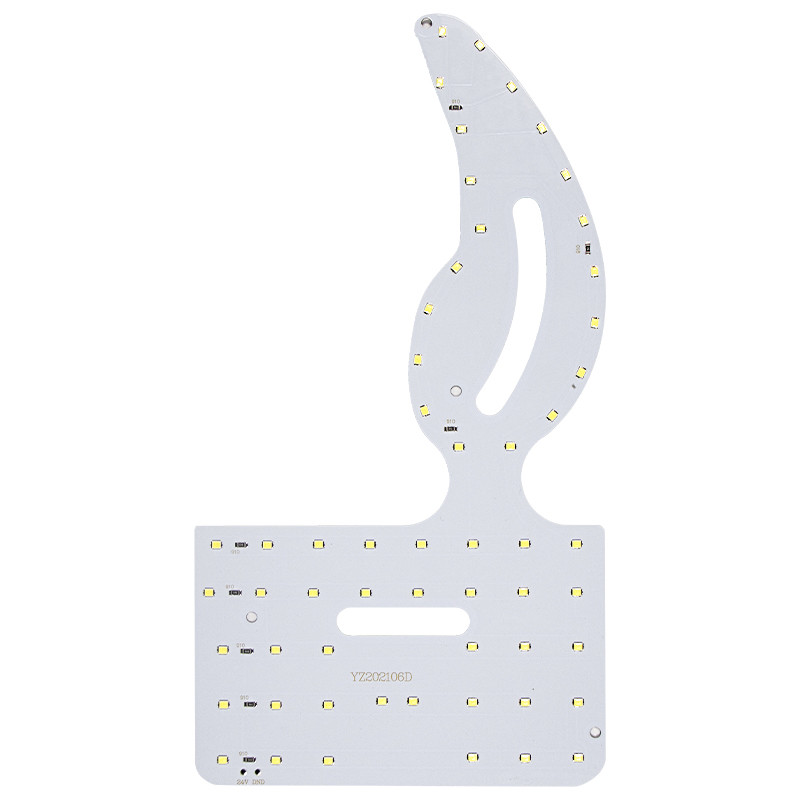

Name: Barebones Double Sided PCB Board Thickness 1.0mm 1.2mm 1.6mm
Brand: Yizhuo
SKU: Aluminum Pcb Board 01

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: China

Brand Name: Yizhuo

Certification: CE,ROHS,UL

Model Number: Aluminum Pcb Board 01

High Light:

Barebones Double Sided PCB Board

1.2mm Double Sided PCB

1.6mm Barebones PCB

Payment & Shipping Terms

Packaging Details: Vacuum Package+ Good quality carton box

Delivery Time: 10-12 work days

Payment Terms: T/T, Western Union, MoneyGram

Specifications

Base Material: Aluminum Base

Copper Thickness: 1/2OZ

Peelable: 0.3-0.5mm

Profiling Punching: Routing, V-CUT, Beveling

Service: One-stop Service

Board Thickness: 1.0/1.2/1.6mm

Surface: OSP

Gallery

Product Description

Barebones Double Sided PCB Board Thickness 1.0mm 1.2mm 1.6mm

Barebones Pcb Pcbs And Their Applications In The Led Lighting Industry

The LED PCB is the core of the cost-effective and highly efficient light-emitting diode (LED) lighting, and you can get it from PCBONLINE at a reasonable price. For safe daily use, an LED has to have high thermal dissipation, making it dependent on the LED PCB. LED PCBA is mounted with blue/white or bi-color LEDs.
LED PCB prototype usually works as the light indicator in the non-tactile membrane switches, under rubber keypads and polyester graphics. It is your dependable choice in LED lightning business.

LAYER	PROTOTYPE		MASS PRODUCTION (above 20 m2)
	PROTOTYPE			Quick Turn	Standard Time
	MC PCB	48 hours		4-5 days	10-12 days
PFC 1 L	48 hours	5-6 days	12-13 days
1L	24 hours	3-4 days	8-10 days
2L	24 hours	3-4 days	8-10 days
4L	48 hours	5-6 days	8-10 days
6L	72 hours	6-7 days	10-12 days
8L	72 hours	7-8 days	12-14 days
10L	96 hours	9-10days	16-18 days

Barebones Double Sided PCB Board Thickness 1.0mm 1.2mm 1.6mm 0
