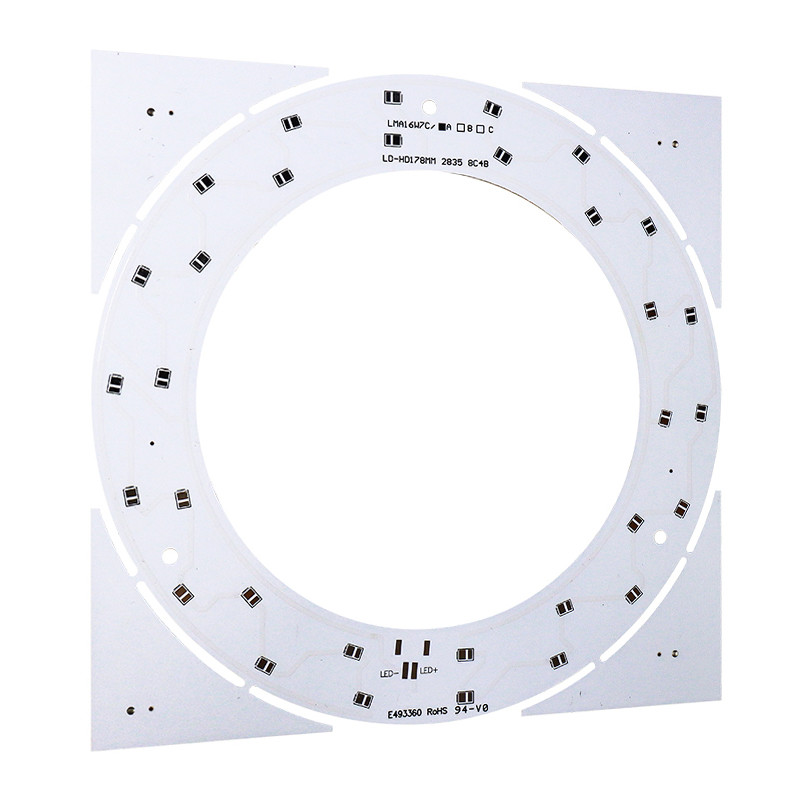

Small Circuit Board And Their Applications In The Led Lighting Industry
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Material: Aluminum Single Side Board
Surface: OSP
Product Description

Small Circuit Board And Their Applications In The Led Lighting Industry

What Are the Benefits of Using LED PCBs in Electronics?

Using LED PCBs in electronics has quite a lot of benefits. Since it is a circuit board specially made for LEDs, there is a lot that this board offers and allows LEDs to work perfectly.

Here is a list of benefits that you can enjoy while using LED circuit boards in your electronic circuit design.

Light Weight and Small Size

LED PCBs are lightweight and come in a small size, which means you can use them in projects where a small-sized, lightweight LED PCB is required. They won’t add to the weight of the overall electronic circuitry.

Low Power Consumption

Compared to other sources of light, such as bulbs, LEDs have low power consumption. They don’t dissipate as much heat as traditional bulbs do. According to a study, LEDs use 75% less energy than traditional bulbs, which means that using LED PCBs will help you save electricity.

Long-Lasting

Using LED PCBs instead of the traditional bulbs will save you from replacing them time, and because LEDs have a much longer lifespan, they will last you for a long time.

High Efficiency

LEDs do not dissipate a large amount of heat, which means they are highly efficient as compared to other sources of light energy. Using an LED PCB for incorporating lighting in your project will save you from wasting electrical energy by converting it into heat energy. Using an LED PCB will improve the efficiency of your project.

Easy to Integrate

LED PCBs are easy to integrate, which means that you can incorporate them into complex projects and electronic circuits without any hassle. They do not need a large amount of circuitry or expertise to be connected to a circuit system. All you need to do is connect the positive and negative terminals present on the LED circuit board to a power supply.

Dust and Moisture Free

Dust and moisture are the two major enemies of electronic circuits. High quality LED PCBs are dust and moisture resistant, which means you don’t have to worry about dust particles and moisture droplets ruining your LED circuit board.

Mercury-Free

Using LEDs instead of other types of lighting will save you from the guilt of introducing toxic substances, such as mercury, into the environment. LED circuit boards are mercury-free, which is a great benefit that they offer.

No Radiofrequency Emission

Another great advantage of using LED PCBs is that they do not emit RF waves during operation. If RF waves are sent out a device, they will interfere with other electronic devices and components present in the surroundings. Using an LED PCB will save you from worrying about RF interference.

Environmental Friendly

Overall, LED PCBs are considered to be environmentally friendly since they do not emit harmful substances, and they last for a long time, which means you dispose of them once in a while, hence creating less waste.

Wide Range Availability

LED PCBs are available in a wide range of colors and sizes. You can choose from a variety of LED colors and can also customize the circuit board dimensions according to your application.

Reduces Operational Costs

Using LED PCBs instead of other sources of lighting has proved to reduce operational costs because they are more efficient and last for a long time, which means that they help you save money in the long run. What’s better than saving money and getting a high-quality, long-lasting LED circuit board at the same time?


LAYER PROTOTYPE MASS PRODUCTION (above 20 m2)
Quick Turn Standard Time
MC PCB 48 hours 4-5 days 10-12 days
PFC 1 L 48 hours 5-6 days 12-13 days
1L 24 hours 3-4 days 8-10 days
2L 24 hours 3-4 days 8-10 days
4L 48 hours 5-6 days 8-10 days
6L 72 hours 6-7 days 10-12 days
8L 72 hours 7-8 days 12-14 days
10L 96 hours 9-10days 16-18 days



Small Circuit Board And Their Applications In The Led Lighting Industry 0

One-stop Service Include

PCB Prototype Quick Turn PCB Single-Sided PCB
Double-Sided PCB Multilayer PCB Rigid PCB
Flexible PCB Rigid-Flex PCB LED PCB
Aluminum PCB Metal Core PCB Thick Copper PCB
HDI PCB BGA PCB High TG PCB
PCB Stencil Impedance Control PCB PCB Assembly
High-Frequency PCB Bluetooth Circuit Board Automotive PCB
USB Circuit Board Halogen-Free PCB Antenna PCB

Small Circuit Board And Their Applications In The Led Lighting Industry 1
