OSP HASL Lead Free ENIG Aluminium PCB For LED Mechanical Hole 0.15mm
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

ENIG Aluminium PCB For LED

,

OSP Aluminium PCB For LED

,

HASL Lead Free Aluminium PCB LED

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Mechanical Hole: 0.15mm
Material: Aluminum Single Side Board
Surface: OSP,HASL Lead Free ENIG
Product Description

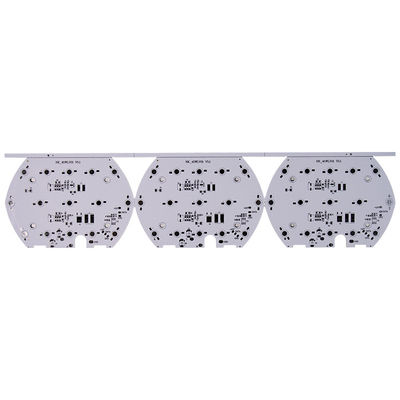

OSP HASL Lead Free ENIG Aluminium PCB For LED Mechanical Hole 0.15mm

Circuit Technology Led Design Led Lighting Controller Led Lighting Industry


The Relationship Between LED and Printed Circuit Board

Technical Innovation of Printed Circuit Board

The Printed Circuit Board is a genius innovation of circuit technology, laying less space and materials for more complex and large-scale circuits. The printed circuit board is such an important invention in circuit technology because it makes electrical and electronic components smaller, more flexible, and more precise. For example, FPC( Flexible PCB ), Multilayer PCB, BGA PCB, rigid- Flex PCB, and so on.

Wide Application of LED Lighting

LED is an abbreviation for light-emitting diode. An LED is mostly a two-lead semiconductor device that emits light when current passes in a specific direction. Although LEDs start with devices that only emit low-intensity infrared light, this technology has been widely used in lighting for many years. Modern LEDs provide not only high intensity, very bright light but also different uses and use in various scenes, such as plant growth lights, car lights, street lights, traffic lights, shadowless lights in hospital operating rooms.

LED Printed Circuit Board

Soldering the LED chip to the PCB Board, as long as the PCB circuit is connected in some way, it will illuminate, which forms the LED PCB. LED PCBs typically also have a heat sink and ceramic pedestal to hold the circuit in place and allow the smooth operation of the channel. A heat sink is required because LEDs tend to generate a lot of heat, which can damage the PCB and the equipment that connects the circuits.
Because LED will produce a lot of heat, led PCB generally uses metal substrate as its production material. Metals with the ability to dissipate heat quickly have proved to be a better choice. Generally, whenever led PCB is designed, Aluminum PCB is preferred. Aluminum PCB usually also contains a thin layer of dielectric, which can dissipate heat faster.
In addition to general lighting, led PCB can also provide visible light, infrared, and ultraviolet light. Compared with other light sources, LED PCB can provide higher energy.
