High Thermal Conductivity Aluminum OSP MCPCB Board For Car Light
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: OSP Aluminum pcb 01
High Light:

Aluminum MCPCB Board

,

High Thermal Conductivity MCPCB Board

,

OSP Aluminum PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Layer: 1-2 Layers
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
PCB Size: Can Be Customized
Silkscreen: White, Yellow, Black
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

High thermal conductivity Aluminum pcb OSP mcpcb board for Car light





Base Material FR-4 /Aluminum /CEM-1
Layers 1-22
Finised inner/outer copper thickness 1-6OZ
Finished board thickness 0.2-7.0mm
Min hole size Mechanical hole: 0.15mm Laser hole: 0.1mm
Controlled Impedance +/-5%
Plugging vias capability 0.2-0.8mm
Outline profile Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...



What are the types of aluminum PCBs?

Even though all-aluminum clads work the same way, i.e., in heat dissipation, different types have individual characteristics based on their design and structure. The following are the types of aluminum clads that you should be knowing.





Through-hole aluminum PCB

When we design through-hole aluminum PCB, the manufacturer backfills and pre-drills a single aluminum layer and then applies the laminate material. There will be a formation of a core of multilayer constructions after this process. Afterward, they laminate the thermal materials on the two sides of the board with thermal bonding materials. The final touch involves drilling on the assembly.





Flexible aluminum PCB

A flexible aluminum PCB is a recently marketed circuit board with a polyimide resin integrated with ceramic filters upon purchase.



The two materials’ essence is to increase insulation, flexibility (you can twist or fold the PCB to any shape and retain the form), and thermal efficiency. What’s more, their application is cost-effective since you won’t need to purchase connectors or cables. It’s disadvantageous because you can’t alter or modify the final product once you acquire a specific shape.





Multilayer aluminum printed circuit board

Multilayer aluminum PCBs have multiple-layer of thermally conductive dielectrics. The design constitutes one or more layers of circuitry found in the dielectric with blind vias representing thermal or signal vias.



An advantage to using multilayer IMS PCB is the straightforward and operative solution they offer for heat conductivity in complex products. Contrary to that, they’re costly and can’t easily engage in heat transfer in single layer designs. Their application is often in power supply products.





High thermal conductivity aluminum PCB

In this type of PCB; the insulating layer is an epoxy resin material. The epoxy resin should have excellent thermal conductivity.



High-frequency aluminum PCB

With high-frequency aluminum PCB, the insulating layer has a polyolefin or polyimide material. Other times, it can be woven fiberglass between an epoxy resin. The purpose of the materials is to improve the flexibility of the PCB.

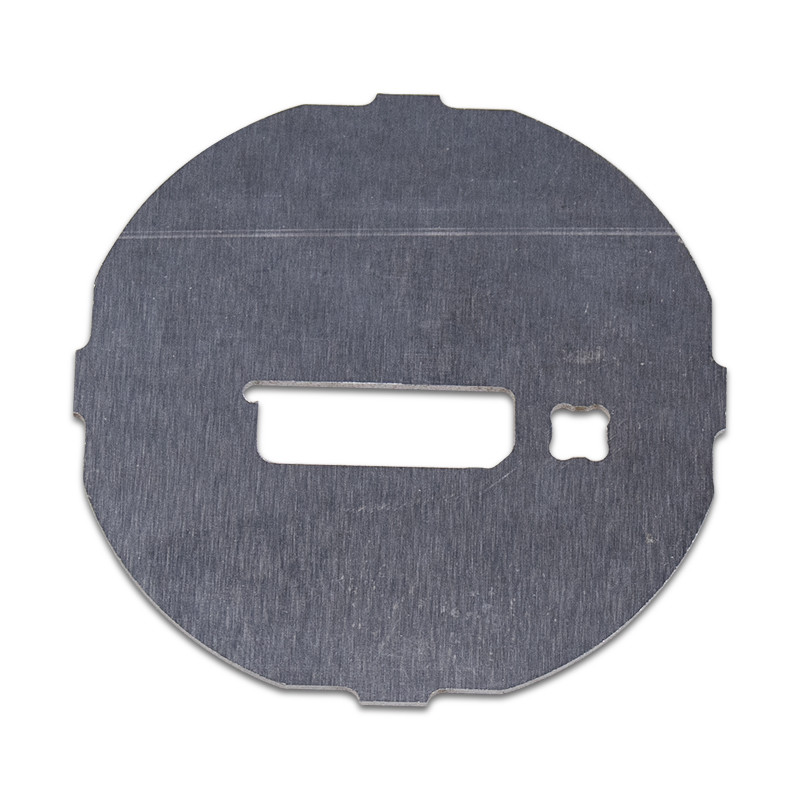

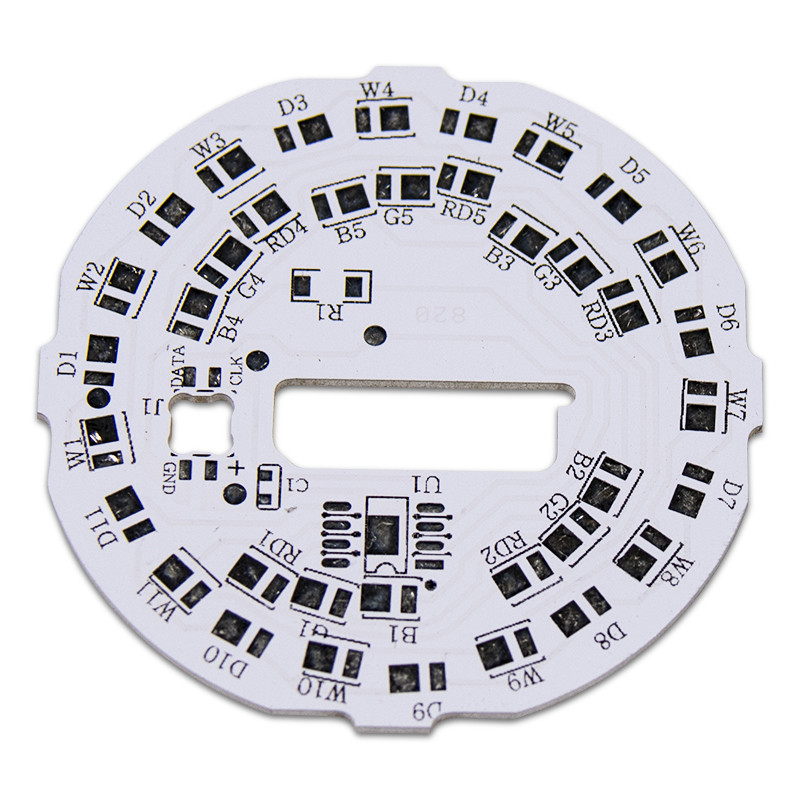

High Thermal Conductivity Aluminum OSP MCPCB Board For Car Light 0

Applications:

1. Ceiling lights

2. Advertisement light-box

3. Commercial luminaires

4. Channel lights

5. Troffer lamps
6. Architectural lighting
7. Decorative lighting

8. Panel lights

9. Down lights



High Thermal Conductivity Aluminum OSP MCPCB Board For Car Light 1


FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.

Q3:  How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
