Single Layer Aluminum SMD 2835 LED PCB Board For T8 Tube
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Single Layer Pcb Board
High Light:

SMD 2835 LED PCB Board

,

SMD 5730 LED PCB Board

,

T8 Tube Light Aluminum PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Material: Aluminum Base
Layer: 1-2 Layers
Solder Mask Color: Green,Blue,White Black
Min. Hole Diameter: 0.1mm
Min. Line Width: 0.075mm
Certification: UL,CE,ROHS
Product Description

Single Layer Aluminum SMD 2835 LED PCB Board For T8 Tube





Aluminum PCB is one type of metal core printed circuit board (MCPCB), widely be used in LED lighting industry.



If you are looking for Aluminum PCB Manufacturer, Yizhuo has rich experience in manufacturing Aluminium PCB with high thermal conductivity , we offers a first class service and extensive high-tech options.



MCPCB, Metal Core PCB, thermal PCB – whichever name you prefer, they are all boards which use a base metal material as the heat spreader portion of the circuit board.These types of are typically fabricated with a metal base consisting of aluminum (most common) but can also be produced with copper.



Layer

1-2 layers

Board thickness

0.2mm-6.0mm

Copper thickness

0.5oz-6.0 oz

Max board size

600 x 1200mm

Min. hole diameter

0.1mm

Min. line width

0.075mm

file format

pcb,doc,ddb etc

MOQ

1 piece

Base material

FR-4,TG, CEM-1, CEM-3, Aluminium,94V0, 94HB

Solder mask

green, red, blue, yellow, black, white etc

Surface finish

ENIG, ImAg, ImSn, OSP, HASL, lead free,immersion gold,Gold-plate etc

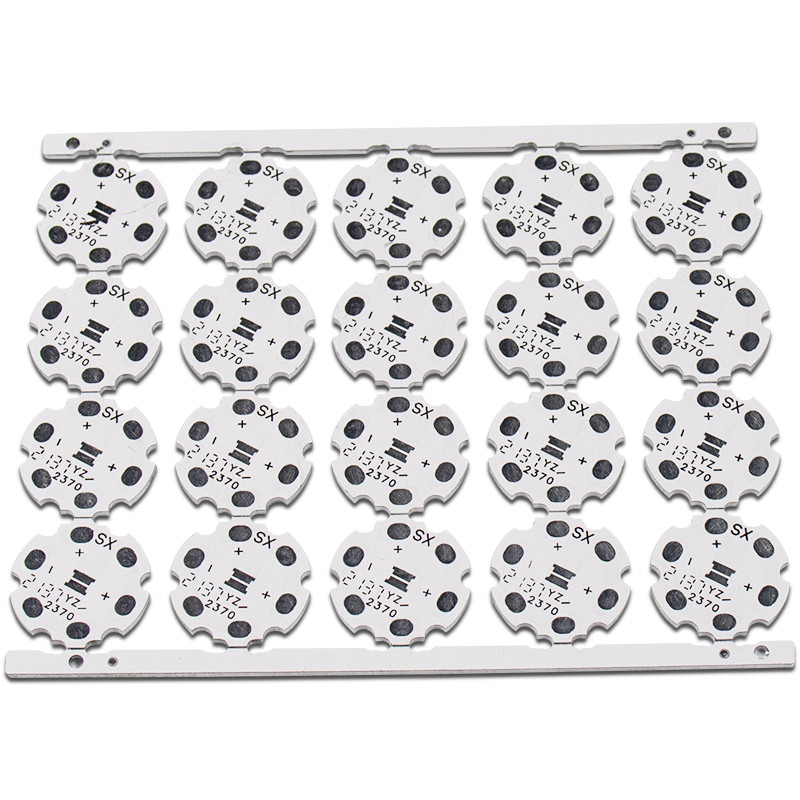

Single Layer Aluminum SMD 2835 LED PCB Board For T8 Tube 0

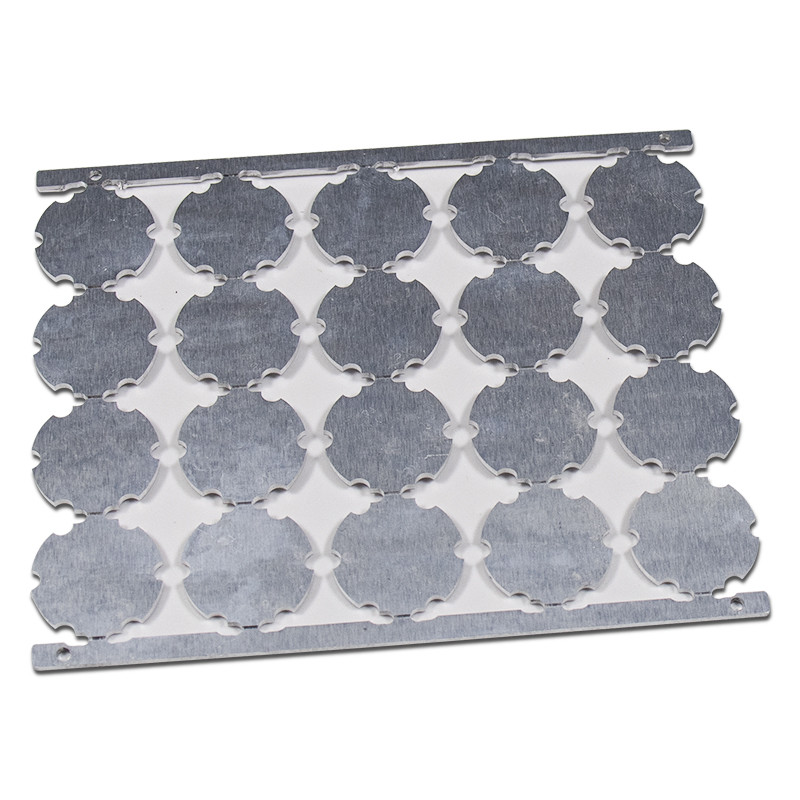

Single Layer Aluminum SMD 2835 LED PCB Board For T8 Tube 1

Applications of LED PCB Board:



1. Street lamp

2. Flashlight

3.Tunnel lamp

4. Car light

5. Indoor light

Single Layer Aluminum SMD 2835 LED PCB Board For T8 Tube 2



The Aluminum LED PCB Board Manufacturing process:

1.  Cutting lamilate

2.  Drilling

3.  Dry/wet film Developing

4.  Acid/alkaline etching

5.  Silk screen solder mask, characters

6. V-CUT

7. Test, organic solderability preservative (OSP)

8.  Final quality control (FQC), final quality assurance (FQA), packaging, shipping



Single Layer Aluminum SMD 2835 LED PCB Board For T8 Tube 3





FAQ:



Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.



Q3: Do you have MOQ limited?

A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
