Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: FR4 pcb board 08
High Light:

FR4 Double Sided PCB Board

,

24 Layers Double Sided PCB Board

,

FR4 Double Sided Printed Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: FR4 PCB Board
Board Thickness: 0.8-4.0 Thickness
Layer: 1-24 Layers
Solder Mask: Green. Red. Blue. White. Black.Yellow
Surface Treatment: OSP ,Immersion Gold, Immersion Tin
PCBA Test: Fly-probe,100% AOI Testing, 100% ET TestingAOI , X-RAY ,ICT And Function Test
Product Description

FR4 Double Sided Pcb PCBA Printed Circuit Board Assembly Supplier





FR-4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).

"FR"  stands for "flame retardant", and does not denote that the material complies with the standard UL94V-0 unless testing is performed to UL 94, Vertical Flame testing in Section 8 at a compliant lab. The designation FR-4 was created by NEMA in 1968.

FR-4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate grade with good strength to weight ratios. With near zero water absorption, FR-4 is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.



FR4 PCB are the printed circuit boards using FR4 laminates. Most PCBs are made of FR4 (Flame Retardant level 4).



FR-4 Process capability
Item
Craft Ability
Surface Finish
HASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc
Layer
1-32 layers
Min.Line Width
4mil
Min.Line Space
4mil
Min.Space between Pad to Pad
3mil
Min.Hole Diameter
0.20mm
Min.Bonding Pad Diameter
0.20mm
Max.Proportion of Drilling Hole and Board Thickness
1:10
Max.Size of Finish Board
23inch*35inch
Rang of Finish Board′s Thickness
0.21-3.2mm
Min.Thickness of Soldermask
10um
Soldermask
Green,Yellow,Black,White,Red,transparent photosensitive solder mask,Strippable solder mask
Min.Linewidth of Idents
4mil
Min.Height of Idents
25mil
Color of Silk-screen
White,Yellow,Black
Date File Format
Gerber file and Drilling file,Report series,PADS 2000 series,powerpcb series,ODB++
E-testing
100%E-Test:High Voltage Testing
Material for PCB
High TG Material:High Frequence ROGERS,TEFLON,TADONIC,ARLON(Haloger free Material)
E-testing
Impedance Testing,Resisitance Testing,Microsection etc
Special Technological Requirement
Blind&Buried Vias and High Thickness Copper



Beneficial Properties of FR4 Circuit Board:

The FR4 printed circuit boards have also gained popularity owing to the following reasons:

  •  FR4 is a low-cost material.
  •  It has a high dielectric strength which contributes to its electrical insulation properties.
  •  The material has a high strength-to-weight ratio and is lightweight.
  •  It is moisture resistant and has relative temperature resistance as well.
  •  The material has good electric loss properties.
  •  FR4 doesn’t absorb water, which makes it suited for various marine PCB applications, too.
  •  The material is yellow to light green in color, which perfectly goes with any application.

All these properties make it suitable in a variety of environments.

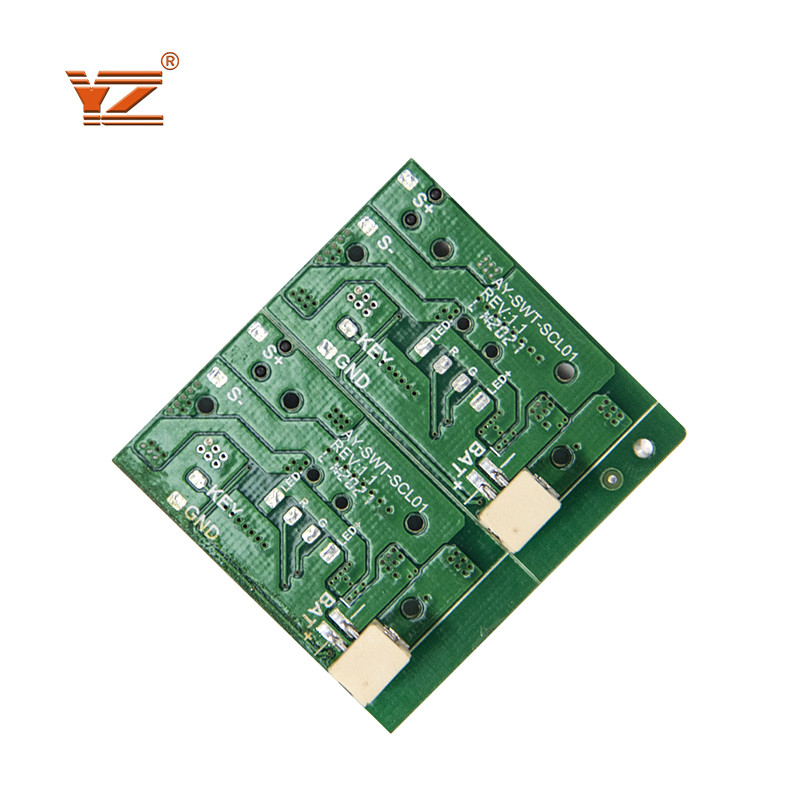

Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board 0

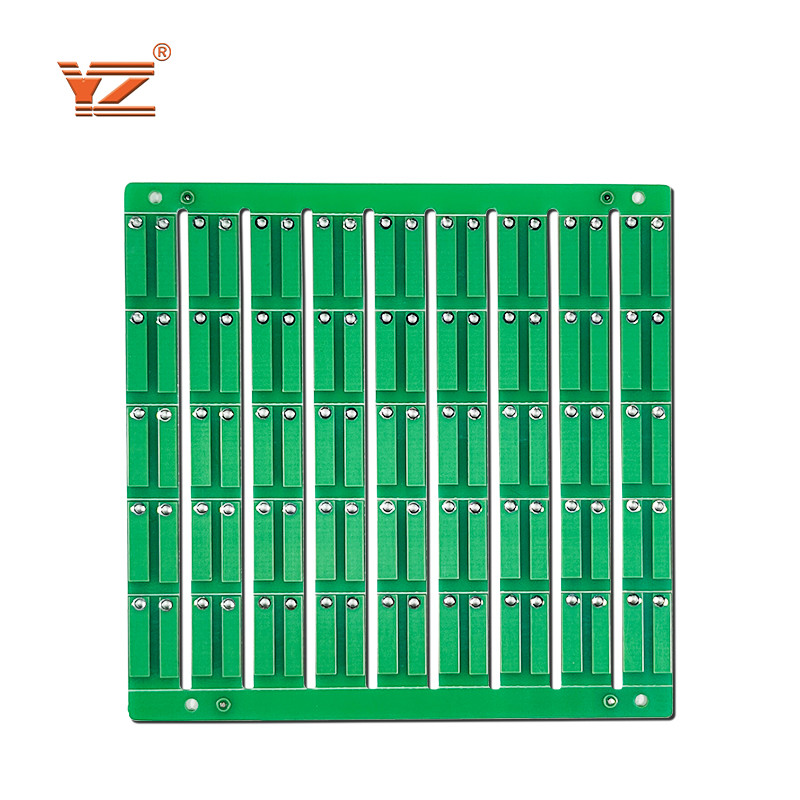

Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board 1













Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 131 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation. Our professionals work in close association to understand the specific requirements of our clients. In our quality testing unit, we meticulously test each product, thus results in their compliance with international quality standards. We can do ODM or OEM one-stop service for our customers.



We are supported by a ‘state-of-the-art’ infrastructural base and team of enthusiastic and skilled professionals. we have divided our well-developed infrastructural base into various units such as procuring, designing, manufacturing, quality testing, R & D, sales marketing, warehousing packaging, and more. This facilitates us to deliver totally defect free range product to our clients at the leading market prices and equipped with the latest machinery and innovative technology in order to meet the large-scale orders of customers. With a senior management team and R & D design team with an average industry experience of more than 10 years, our products are selling well around the world.

Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board 2

Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board 3

Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board 4

Flame Retardant 1 - 24 Layers FR4 Double Sided PCB Board 5



Our service:
* PCB & PCBA OEM/ODM Service

* Electronics Circuit board One-stop services

* Two Year Product Warranty

* Products are 100% quality checked in both functionality and cosmetic.
