LED Light Aluminum PCB Print Circuit Board Manufacturer
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum PCB Print Circuit Board
High Light:

Aluminum Circuit Board for LED Light

,

UL Approved LED Light PCB

,

Aluminum PCB Print Circuit Board

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: Aluminum PCB Print Circuit Board
Profiling Punching: Routing, V-CUT, Beveling
Silk Screen: White,black,yellow
Electrical Testing: Fixture / Flying Probe
Surface Finishing: HASL,OSP,ENIG, Gold Finger
Service: One-stop Service
Product Description

LED Light Aluminum PCB Print Circuit Board Manufacturer



Introduction of  Aluminum PCB Print Circuit Board:
Among all Metal core PCBs, Aluminum PCB is the most common type. The base material consists of an aluminum core and standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCB is regarded as the solution to high power and tight tolerance applications.

Advantages of Aluminum PCB Print Circuit Board:
1.Environmentally Friendly: Aluminum is non-toxic and recyclable. Manufacturing with aluminum is also conducive to conserving energy due to its ease of assembly. For printed circuit board suppliers, using this metal helps maintain the health of our planet.
2.Heat dissipation: High temperatures can cause severe damage to electronics, so it is wise to use a material that can help dissipate heat. Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3.Higher durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot. Aluminum is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.
4.Lightweight: For its incredible durability, aluminum is a surprisingly lightweight metal. Aluminum adds strength and resilience without adding on any additional weight.


1.Base Material
FR-4 /Aluminum /CEM-1
2.Layers
1-40
3.Finised inner/outer copper thickness
1-6OZ
4.Finished board thickness
0.2-7.0mm
5.Min hole size
Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Controlled Impedance
+/-5%
7.Plugging vias capability
0.2-0.8mm
8.Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
9.Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...


Structure of Aluminum PCB Print Circuit Board:

1. Circuit Copper Layer
The circuit copper layer (usually using electrolytic copper foil) is etched to form a printed circuit, which is used to realize the assembly and connection of the device. Compared with the traditional FR-4, with the same thickness and the same line width, the aluminum substrate can carry a higher current.

2. Insulating Layer
The insulating layer is the core technology of the aluminum substrate, which mainly plays the functions of bonding, insulation and heat conduction. The aluminum substrate insulating layer is the largest thermal barrier in the power module structure. The better the thermal conductivity of the insulating layer, the more favorable it is to spread the heat generated during the operation of the device, and the lower the operating temperature of the device, so as to increase the power load of the module, reduce the volume, extend the life-span, and increase the power output .

3. Metal substrate
What kind of metal is used for the insulating metal substrate depends on the comprehensive consideration of the thermal expansion coefficient, thermal conductivity, strength, hardness, weight, surface state and cost of the metal substrate.
In general, considering the conditions such as cost and technical performance, aluminum plate is an ideal choice. Available aluminum plates are 6061, 5052, 1060 and so on. If there are higher requirements for thermal conductivity, mechanical properties, electrical properties and other special properties, copper plates, stainless steel plates, iron plates and silicon steel plates can also be used.

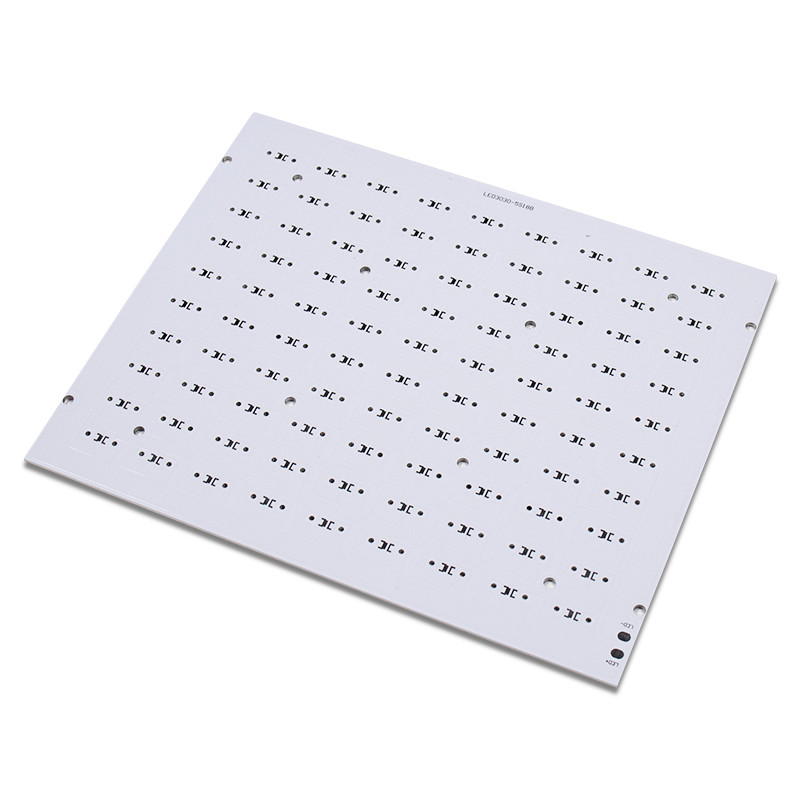

LED Light Aluminum PCB Print Circuit Board Manufacturer 0

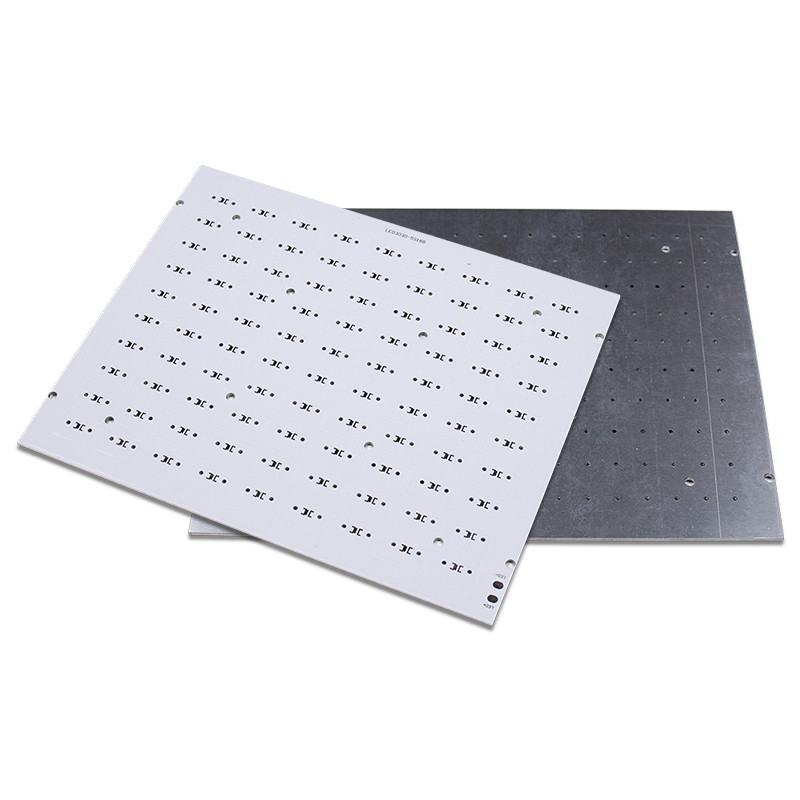

LED Light Aluminum PCB Print Circuit Board Manufacturer 1



Applications of aluminum led pcb:

  • Medical Industry
  • Consumer Electronics
  • Telecommunication Industry
  • Street Lights
  • Spot Lights
  • Vehicle Lights
  • Elevator Lights
  • Headlights
  • Solar Power Products
  • Air Landing and Running Lights
  • Traffic and Signal Lighting
  • Flashlight and Camping Accessories

LED Light Aluminum PCB Print Circuit Board Manufacturer 2

Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 120 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation. Our professionals work in close association to understand the specific requirements of our clients. In our quality testing unit, we meticulously test each product, thus results in their compliance with international quality standards. We can do ODM or OEM one-stop service for our customers.
LED Light Aluminum PCB Print Circuit Board Manufacturer 3

LED Light Aluminum PCB Print Circuit Board Manufacturer 4
FAQ:
Q1.   Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q2:  Do you offer guarantee for the products?
A:  Yes, we offer 2 years warranty to our products..

Q3:  How can I get a sample to check your quality?
A:  After price confirmation,you can place orders for samples for your testing and evaluation.
