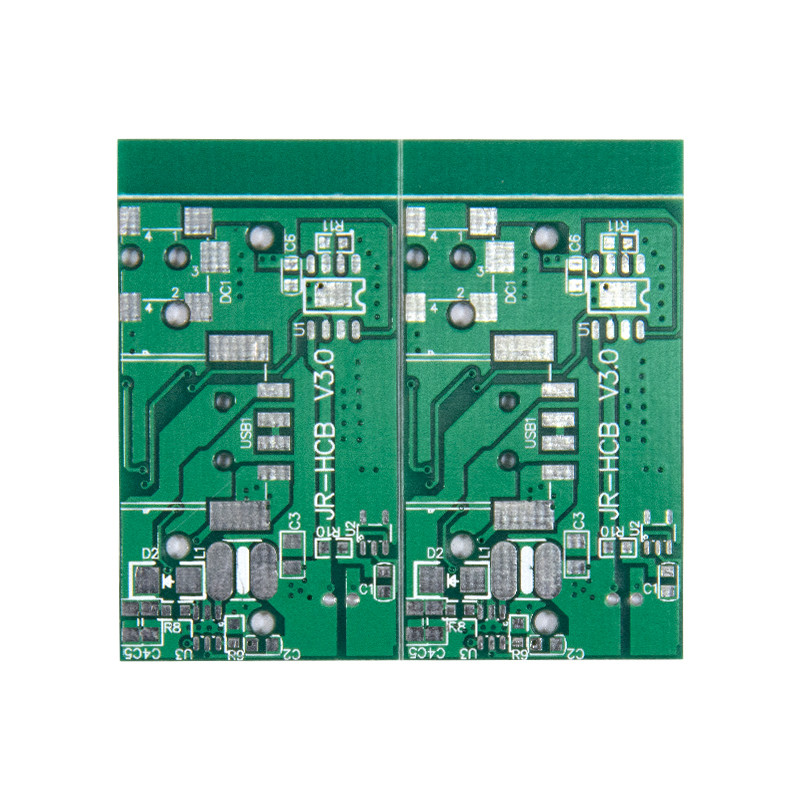

OEM FR4 Phone PCB Board Multilayer Circuit Boards One Stop Services
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: FR4 pcb board02
High Light:

OEM FR4 Phone PCB Board


OEM FR4 Phone Circuit Board


FR4 Multilayer Circuit Boards

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: FR4 PCB
Board Thickness: 1.6mm
Layer: 1-24 Layers
PCB Standard:: IPC-II Standard
Board Size: Can Be Customized
PCBA Test: Fly-probe,100% AOI Testing, 100% ET TestingAOI , X-RAY ,ICT And Function Test
Product Description

OEM FR4 Phone PCB Board Multilayer Circuit Boards One Stop Services


Electronics phone pcb board multilayer pcb circuit boards One-stop services


Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, Functional test


Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files needed

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB Panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size


Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

PCB assembly

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

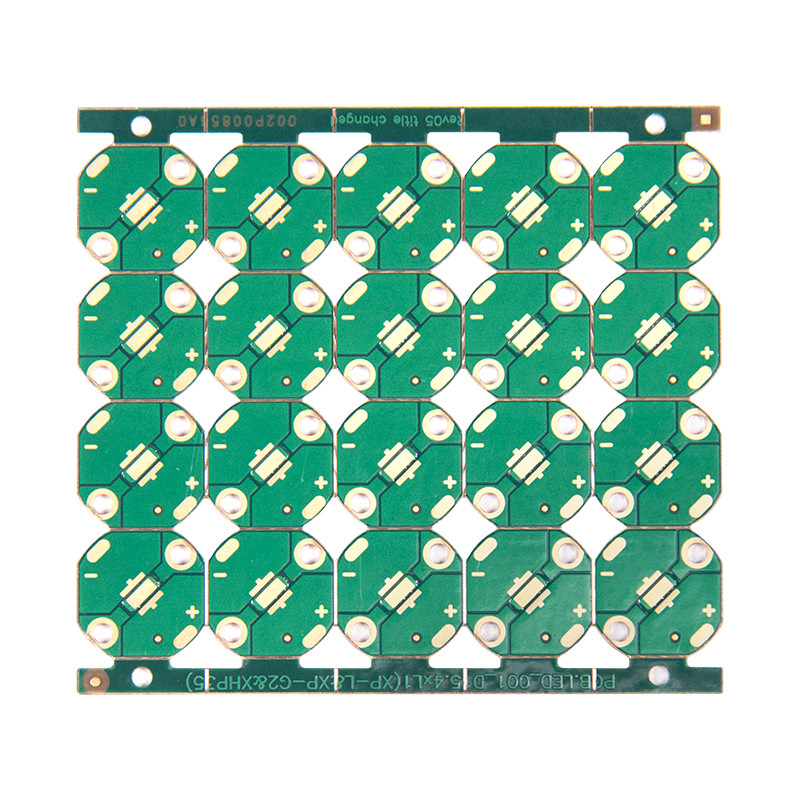

OEM FR4 Phone PCB Board Multilayer Circuit Boards One Stop Services 0

The double sided PCB board is a board with double-sided wiring on the board. An important feature of the double sided prototype PCB is that it has a guide hole to connect the wires on both sides into a circuit.

The double-panel wiring can be staggered with each other, which is the biggest difference from a single-panel; the double-panel is more suitable for complex circuits and has a wider range of use.

The cost of single and double panels is not much different. If there is no special requirement, all industries will give preference to double panels; after all, the performance and stability of double panels are better than single panels.

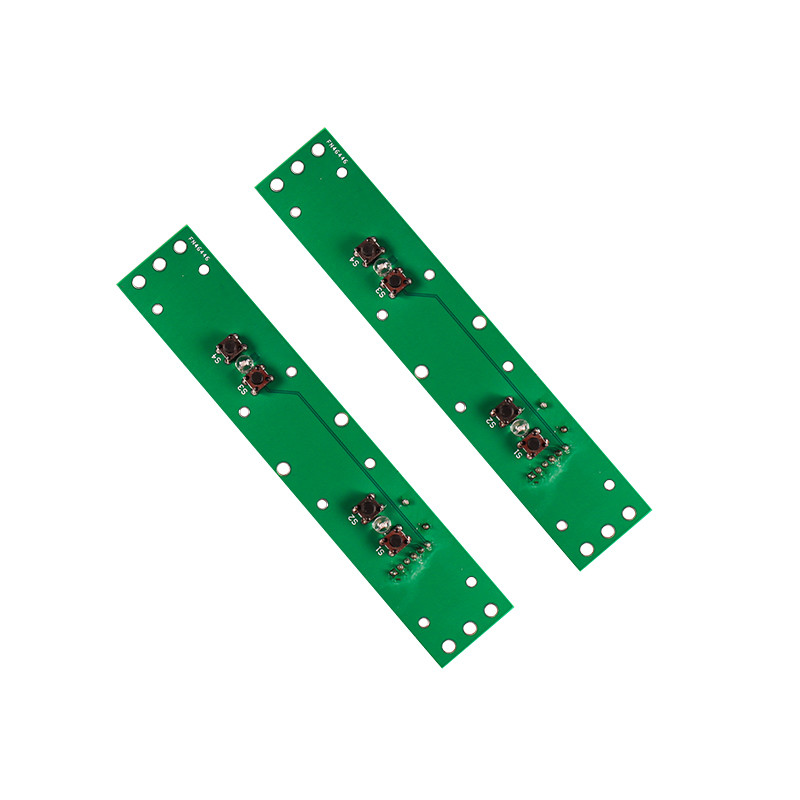

OEM FR4 Phone PCB Board Multilayer Circuit Boards One Stop Services 1




Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.
Q2. How can I get a sample to check your quality?
A:  After price confirmation,you can place orders for samples for your testing and evaluation.

Q3: Are my files safe?

A:  Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
