SMD LED Lighting Double Layer PCB Board Min Line Width 0.1mm
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED Lighting PCB
High Light:

1.6mm Double Layer PCB Board

,

Line Width 0.1mm Line Width 0.1mm

,

1.6mm Line Width 0.1mm

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Standard: IPC-Class2/Class 3
Material: Aluminum Base
Min Line Width: 0.1mm
Board Thickness: 1.6mm
Surface Finishing: HASL,OSP,ENIG, Gold Finger
Certification: UL,RoHS, CE
Product Description

SMD LED Lighting Double Layer PCB Board Min Line Width 0.1mm



1W 3W 5W 24W LED Light Aluminum PCB Circuit Board Power Plate



Metal Core PCB Materials and Thickness
The metal core of the thermal PCB can be :
1) Aluminum (aluminum core PCB),
2) Copper (copper core PCB or a heavy copper PCB)
or a mixture of special alloys, while the most common being Aluminum core PCB.
The thickness of metal cores in PCB base plates is typically 30 mil - 125 mil, but thicker and thinner plates are also available.
MCPCB copper foil thickness can be 1 - 10 oz.
MKTPCB Aluminum PCB Capacity :
MKTPCB can produce 1-Layer, 2-Layer, 4-Layer and 6-Layer Aluminum PCBs. Multilayer aluminum PCB is mainly used by high power Industrial products, like outdoor Led screens.
Solder mask Color: White, Black. We can also provide Super-White color for LED PCB to improve the reflected light off of the board to increase the Lumens.



1

Layers

1-30 layers printed circuit board

2

Board Material

FR4, CEM-3, CEM-1, Aluminum

3

Copper Thickness

1oz

4

Board Thickness

1.6mm

5

Min. Hole Size

0.15mm

6

Min. Line Width

0.1mm

7

Min. Line Spacing

0.1mm

8

Surface Finishing

HASL lead free

9

Solder Mask type

Green/Blue/Yellow/Red etc…

10

Board Thickness Tolerance

±10%

11

PCB/PBCA Test

100% Testing

12

Package

Custom packaging

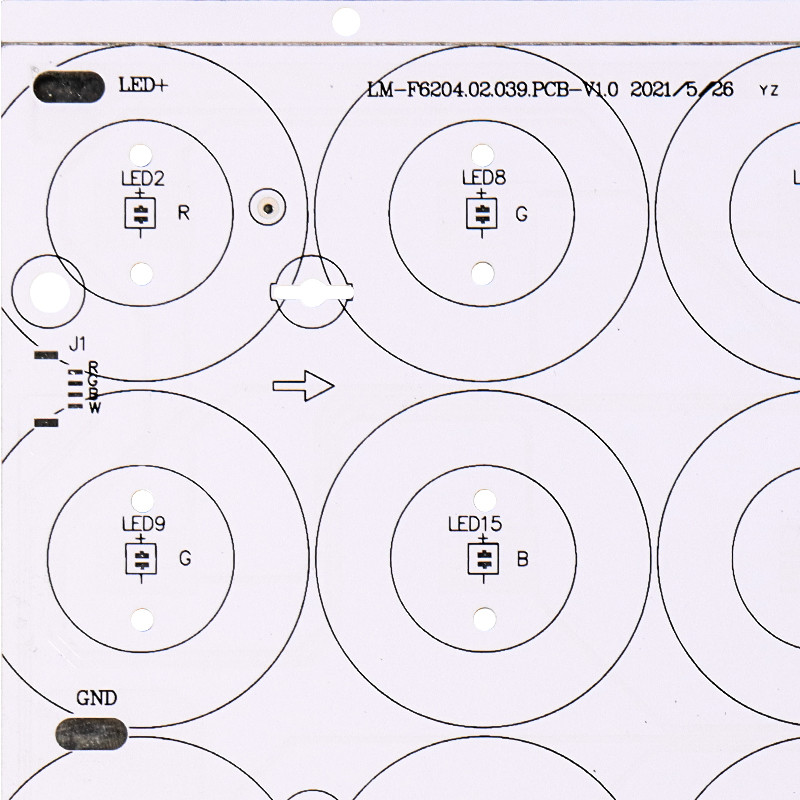

SMD LED Lighting Double Layer PCB Board Min Line Width 0.1mm 0

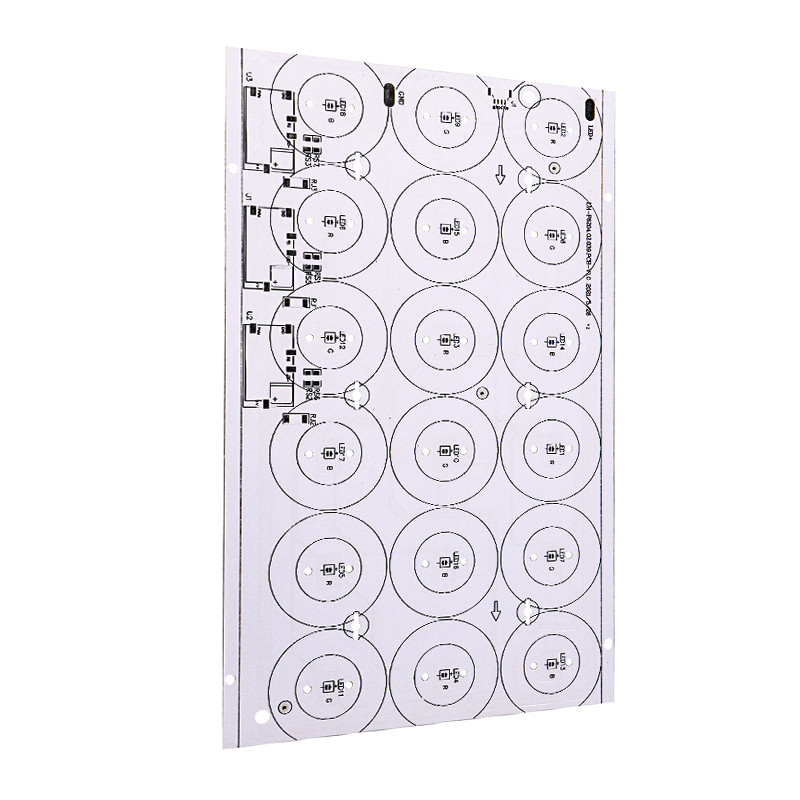

SMD LED Lighting Double Layer PCB Board Min Line Width 0.1mm 1
FAQ:

Q1.  How about the Shipping cost?

A:  The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.



Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.



Q3:  What service do you have?

A:  We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
