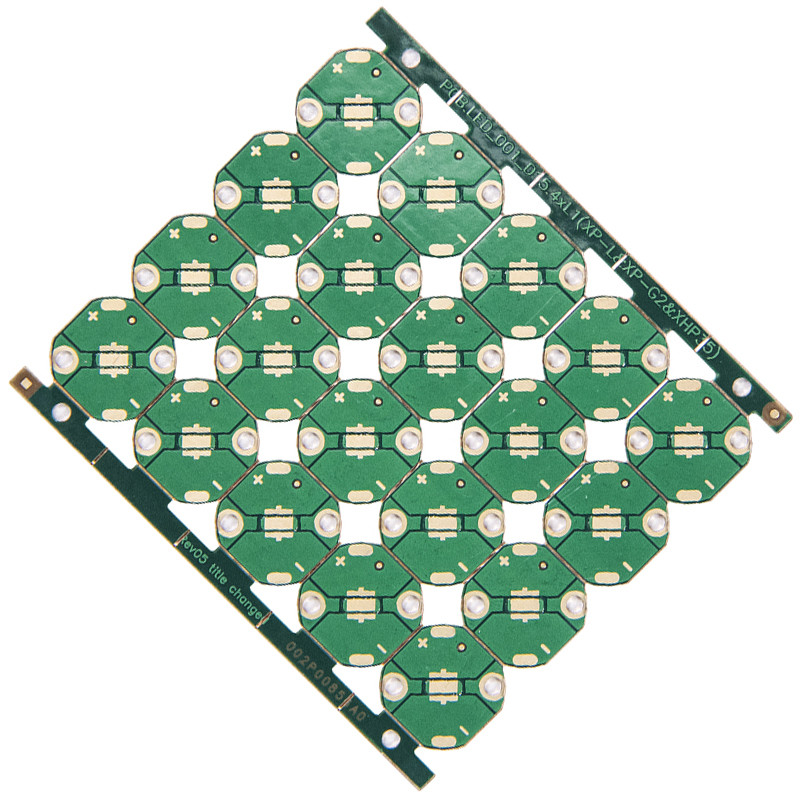

Plating Plug Hole FR4 2 Layer PCB Board OSP Gold Finger Surface
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

FR4 2 Layer PCB Board

,

FR4 2 Sided PCB

,

OSP 2 Layer PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Brand Name: Yizhuo
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Surface: OSP Gold Finger
Product Description

Plating Plug Hole FR4 2 Layer PCB Board OSP Gold Finger Surface



2 Layer Pcb Fr4 Pcb Board Osp Pcb Gold Finger PCB With Plating Plug Hole



We can see a row of golden conductive contacts on the computer memory module and graphics card, and each part is a golden finger.

We generally electroplate nickel and gold, the thickness can reach 3-50u". Features, superior conductivity, oxidation resistance and wear resistance, is widely used in gold finger PCBs that require frequent insertion and removal or PCBs that require frequent mechanical friction On the board. Another way is to deposit gold, the thickness is conventional 1u", up to 3u". Features, superior conductivity, flatness and solderability, is widely used in the design of buttons, bonded IC, BGA, etc. For high-precision PCB boards, for gold finger PCBs that do not require high wear resistance, you can also choose the whole board immersion gold process. The cost of the immersion gold process is much lower than that of the electro-gold process. The color of the immersion gold process is golden yellow.



FR4 PCB can be any layer count but rely on conventional drilling and plating technology.

  • FR4 PCB up to 40+ layers

  • Wide range of laminate options including high temperature, low loss, and lead-free laminates

  • Mixed dielectric (hybrid) constructions

  • Panel size up to 30″x 55″

  • Embedded coin or metal core and metal-backed MLB

  • Panel thickness up to.450″

  • RF and microwave circuits

  • Heavy copper (10 oz. outer layer / 5 oz.
    inner layer)

  • Embedded, distributed and discrete passive components




LAYER

PROTOTYPE

MASS PRODUCTION (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days

Plating Plug Hole FR4 2 Layer PCB Board OSP Gold Finger Surface 0

One-stop Service Include

PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB

LED PCB

Aluminum PCB

Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB

High TG PCB

PCB Stencil

Impedance Control PCB

PCB Assembly

High-Frequency PCB

Bluetooth Circuit Board

Automotive PCB

USB Circuit Board

Halogen-Free PCB

Antenna PCB

Plating Plug Hole FR4 2 Layer PCB Board OSP Gold Finger Surface 1
