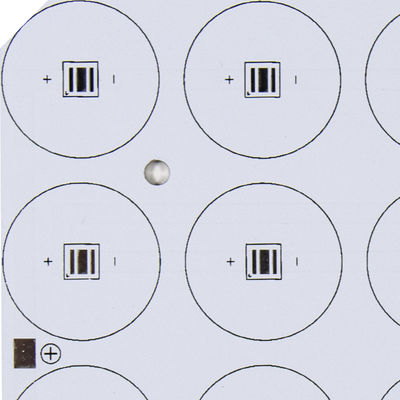

High Power 1W 3W Double Sided PCB Board LED Light Aluminum Plate
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: led board
High Light:

3W Double Sided PCB Board


SMD Double Sided PCB


3W LED PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Pcb Board Thickness: 1.0mm
Testing: Fixturer Testing Jig/flying Testing
Usage: Led Tube Light
PCBA Service: SMD SMT DIP Component Assembly
Silkscreen: White, Yellow, Black
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

High Power 1W 3W Double Sided PCB Board LED Light Aluminum Plate


Led pcb Board 1W 3W High Power LED PCB Aluminum plate Circuit board


Manufacturing different led lighting devices require the best materials. The importance of using the best materials for manufacturing electronic devices cannot be underplayed because if the materials are sturdy; it will help in increasing the lifespan of the devices.


At the same time, Printed Circuit Boards (PCBs) have become a standard for producing electronic devices. Because of the excellence of these boards, you are confident that the devices you want to manufacture will provide the best service to your customers while lasting for many years.


The first thing we want you to understand is that LED means Light Emitting Diode. It features semiconductor diodes, which when soldered to a Printed Circuit Board (PCB) will create light on the board.


Generally, LED PCB is considered to be a circuit board that has the LED components soldered to it. However, there are other important properties and compositions of the circuit board that we want you to understand too.


For a LED PCB to function effectively, a ceramic base and a thermal heat sink will be used to bond a chip to create light as electrically connected on the circuit board.


Base Material
FR-4  /Aluminum /CEM-1
Finised inner/outer copper thickness
Finished board thickness
Min hole size
Mechanical hole: 0.15mm Laser hole: 0.1mm
Controlled Impedance
Plugging vias capability
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...

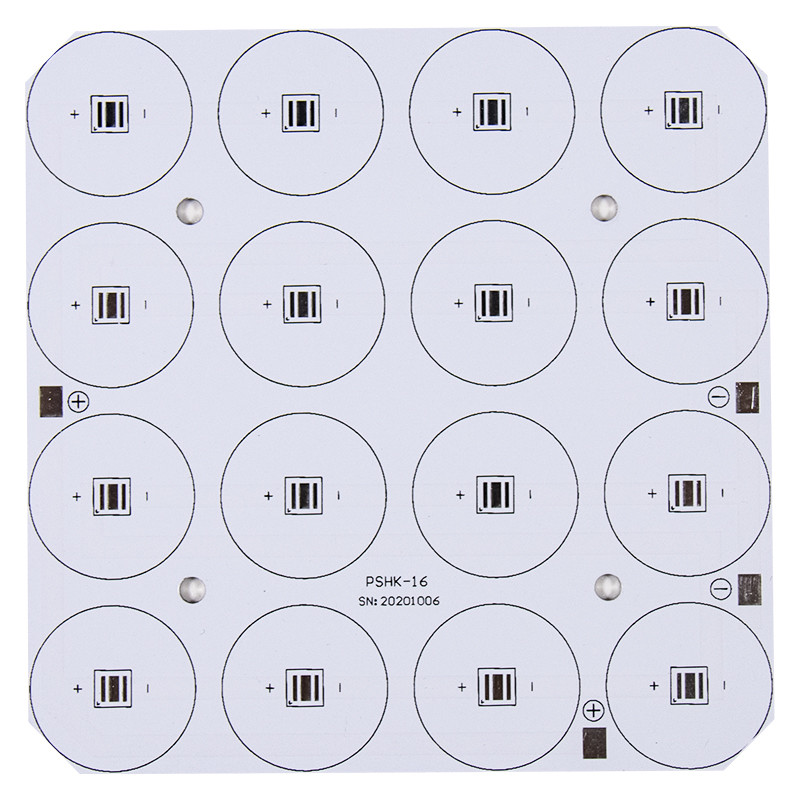

High Power 1W 3W Double Sided PCB Board LED Light Aluminum Plate 0

Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3:  Does our product will be tested before shipment?
A:  Yes, we could provide Function Circuit Testing .
