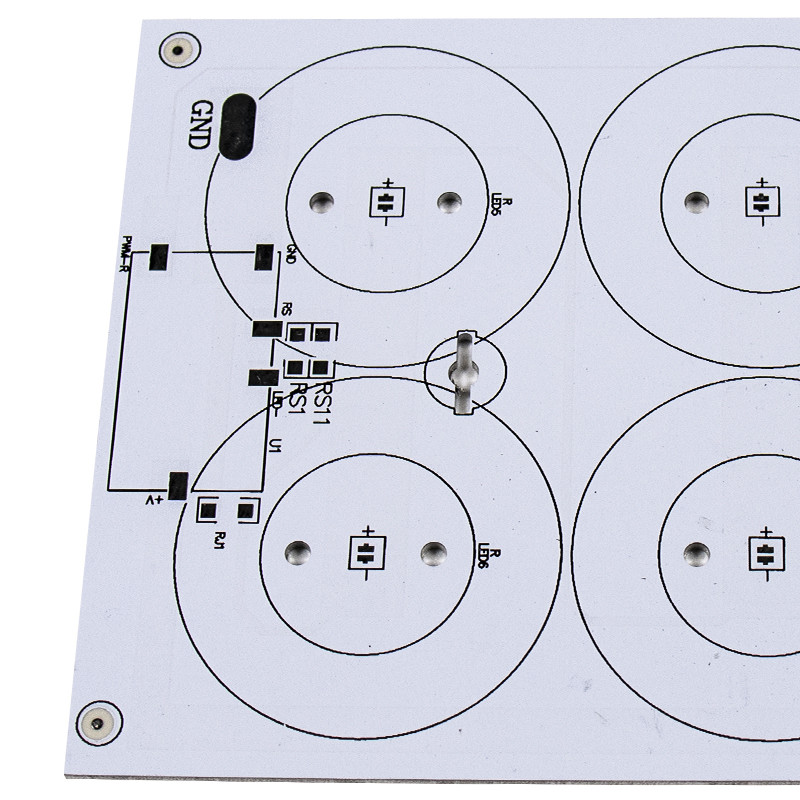

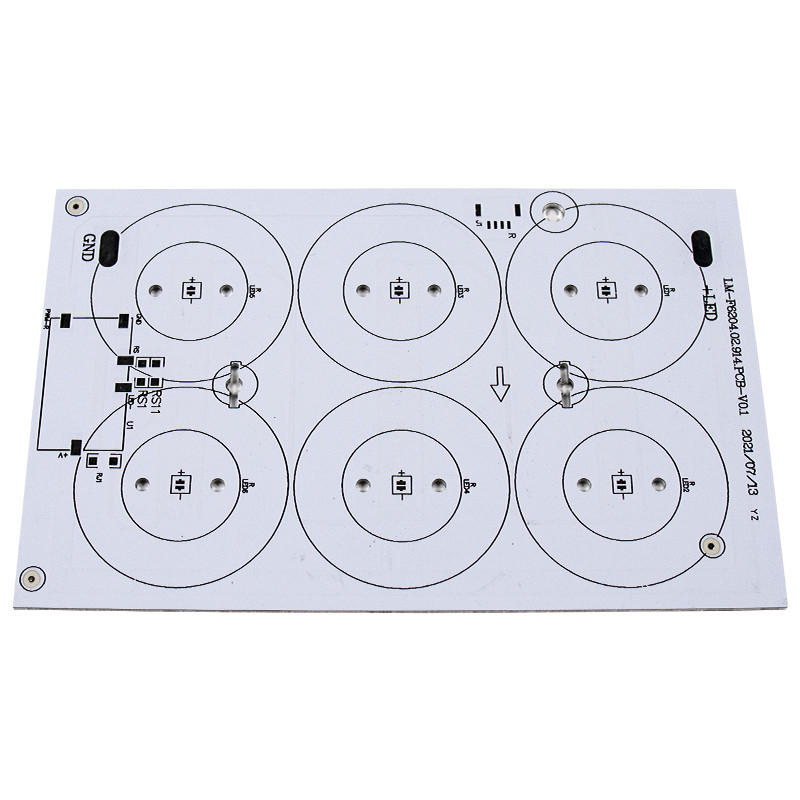

SMD 2835 2 Layers Double Sided PCB Board For LED Traffic Lighting
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: led board
High Light:

2 Layers Double Sided PCB Board


2835 Double Sided PCB


2835 2 Layer PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
LED Light Source: 2835
Testing: Fixturer Testing Jig/flying Testing
Application: Home Appliances
PCBA Service: SMD SMT DIP Component Assembly
Silkscreen: White, Yellow, Black
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

SMD 2835 2 Layers Double Sided PCB Board For LED Traffic Lighting


Aluminum double sided 2 Layers LED PCB Board For Traffic Lighting


LED PCB Board could be used into numerous lighting application, such as traffic lighting, automotive headlights, street lighting, signal lighting, and so on. Particularly, alumimum is usually used to manufacture LED PCB Board for LED applications. That's because the alumimum PCB board could transfer and dissipate heat better than the traditional rigid printed circuit board.


Copper Thickness
Max 6oz
Board Thickness
Min. Hole Size
Min. Line Width
0.075mm (3mil)
Min. Line Spacing
0.075mm (3mil)
Surface Finishing
HASL,OSP,ENIG, Gold fingers,etc
V-cut dept tolerance: +/-0.1mm
Wrap and twist
Minimun thickness of soldermask
Green/ White/ Black/ Blue/ Yellow etc.
Testing Service
AOI X-Ray Function Test


Application of LED PCB:

You may be wondering about the possible use cases of LED PCB. The applicable cases are many, but we will mention some of the popular ones.

1. Medical Industry

It will interest you to know that the medical industry is one of the major beneficiaries of the applications of LED PCB.

Most of the medical equipment you know or see in the hospital are made from LED PCB. The reason for that is because LED PCBs tend to provide more light than traditional circuit boards would.

Also, preference is made for lighting tools used during medical examinations and surgeries. To ensure that the circuit boards are functioning effectively, aluminium PCB will be used during the manufacturing process because it effectively transfers heat while maintaining the stability of the medical pieces of equipment when in use.

2. Telecommunications

Aside from being used in the medical sector, LED PCBs can also be used in the telecommunications industry. There are two major roles played by these circuit boards in telecommunication devices.

First, LED PCBs (especially those manufactured with aluminium PCB) effectively transfer and dissipate heat from the board. Thereby, you are confident that the circuit board will stand the test of time because it is not in immediate danger of malfunctioning because of overheating.

Second and most important, LED PCBs are used in the telecommunication sector because of the boards of the overall importance of the displays and indicators on the boards in telecommunication equipment.

3. Automotive Industry

This time, we are looking at how LED PCBs can be the last resort for automobile manufacturers that want to improve on the quality and effectiveness of their indicators and brake lights.

LED PCBs are mostly preferred during automobile production because of their increased efficiency and competitive pricing.



SMD 2835 2 Layers Double Sided PCB Board For LED Traffic Lighting 0
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3:  Do you offer guarantee for the products?
A:  Yes, we offer 2 years warranty to our products.
