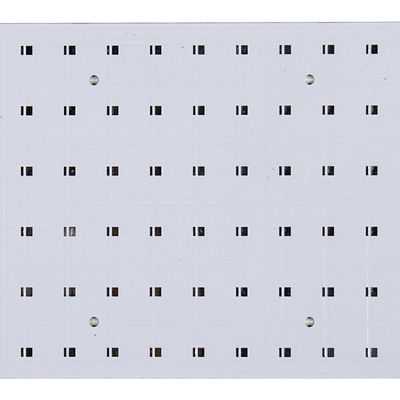

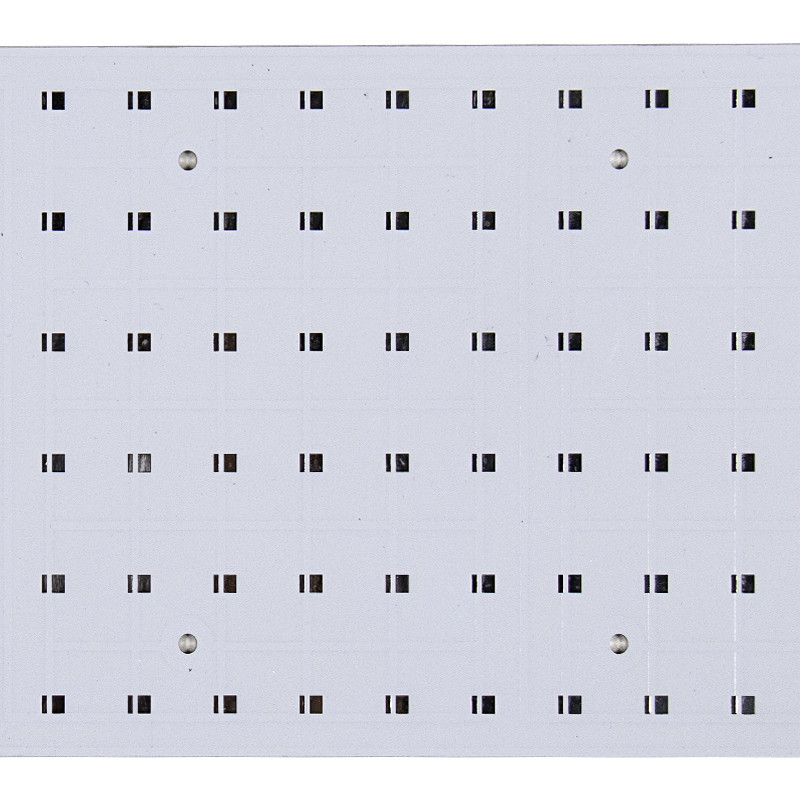

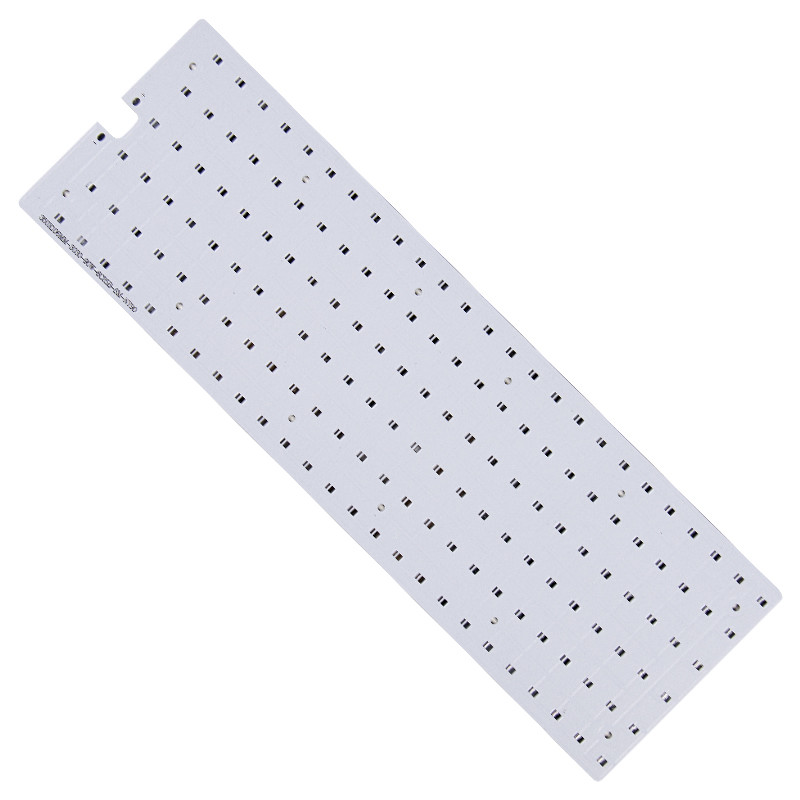

2 Layers Copper 6oz Double Sided Circuit Board For Traffic Lighting
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: led board
High Light:

6oz Double Sided Circuit Board

,

2835 Double Sided Circuit Board

,

6oz Double Sided Copper PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
LED Light Source: 2835
Testing: Fixturer Testing Jig/flying Testing
Soldermask: Green/ White/ Black/ Blue/ Yellow
Certificate: ISO9001/UL
PCB Standard: IPC-II Standard
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

2 Layers Copper 6oz Double Sided Circuit Board For Traffic Lighting



Aluminum double sided 2 Layers LED PCB Board For Traffic Lighting



Consider Applications of the LED PCB circuit board

LED PCB circuit board can use many products.
The board can be used as a completely integrated LED tail light, LED brake light and LED turn signal unit.
Every product has their own requires and require design LED PCB circuit board use difference way.



The theory of LED PCB circuit board

The outermost ring of LEDs operates independently, but share a common ground.
The inner rings of LEDs possess 2 separate power input to allow for 2 levels of illumination.
The inner rings of LEDs can remain on with the taillights and increase in brightness when the brakes are applied.
The outermost ring of LEDs can be connected to the turn signal.
All 60 LEDs on the board are domed surface mount components. Additional components included with the unit



Copper Thickness
Max 6oz
Board Thickness
0.1mm-7.0mm
Min. Hole Size
0.1mm
Min. Line Width
0.075mm (3mil)
Min. Line Spacing
0.075mm (3mil)
Surface Finishing
HASL,OSP,ENIG, Gold fingers,etc
Tolerance
V-cut dept tolerance: +/-0.1mm
Wrap and twist
5%
Minimun thickness of soldermask
10um
Soldermask
Green/ White/ Black/ Blue/ Yellow etc.
Certificate
ISO9001/UL
Testing Service
AOI X-Ray Function Test





2 Layers Copper 6oz Double Sided Circuit Board For Traffic Lighting 0
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q2. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3:  Do you offer guarantee for the products?
A:  Yes, we offer 2 years warranty to our products.
