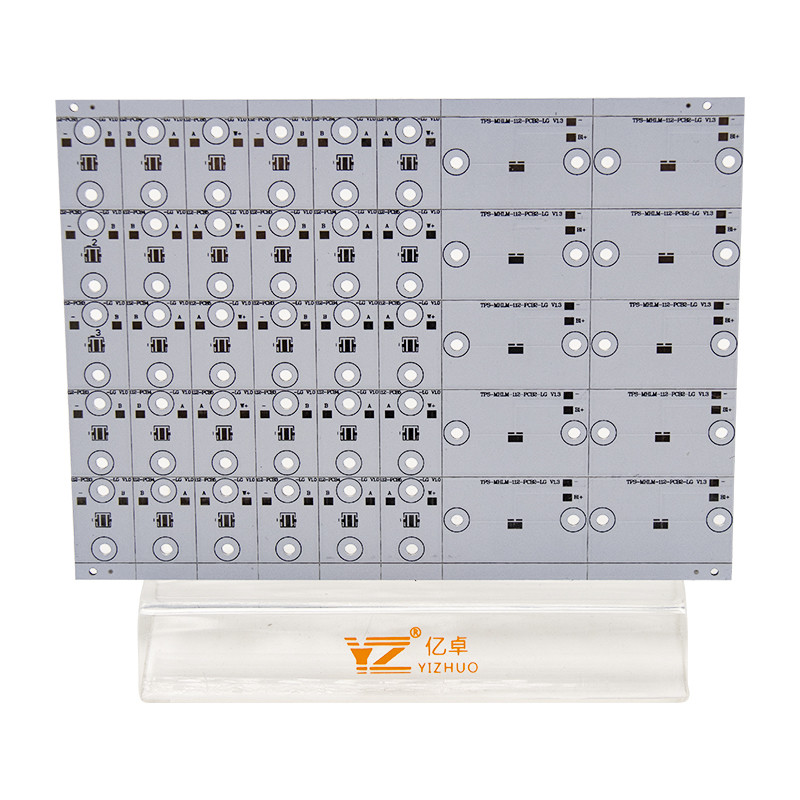

Double Sided Pcb Board Single Sided Pcb Manufacturer Services Of LED Aluminum PCB
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Material: Aluminum Single Side Board
Surface: OSP
Product Description

Double Sided Pcb Board Single Sided Pcb Manufacturer Services Of LED Aluminum PCB

Types of Aluminum
All these types are highly effective and they offer great results. We are not doing a comparison on which type is better; on the contrary, we are providing the basics of every aluminum type.

Flexible
Flexible Aluminum uses a different technique to provide great insulation. It uses a combination of ceramic fillers along with Polymide resins for insulation purposes. Due to this combination, the manufacturer enjoys aluminum thermal conductivity while retaining the flexibility feature.
Hybrid Aluminum
As the name suggests, it is basically a merger of aluminum with a non-thermal material. The hybrid aluminum uses FR4, which acts as a non-thermal material. Doing this makes it possible for the manufacturer to offer all the supreme thermal conductivity while retaining the rigidity of the Printed Circuit Boards.
Multi-Layer Aluminum
For highly complex Printed Circuit Boards, multi-layer aluminum is an excellent choice due to its outstanding and amazing thermal conductivity. You will not find a heat conductor better than a multi-layer aluminum.




LAYERPROTOTYPEMASS PRODUCTION (above 20 m2)
Quick TurnStandard Time
MC PCB48 hours4-5 days10-12 days
PFC 1 L48 hours5-6 days12-13 days
1L24 hours3-4 days8-10 days
2L24 hours3-4 days8-10 days
4L48 hours5-6 days8-10 days
6L72 hours6-7 days10-12 days
8L72 hours7-8 days12-14 days
10L96 hours9-10days16-18 days

Double Sided Pcb Board	 Single Sided Pcb Manufacturer Services Of LED Aluminum PCB 0

One-stop Service Include

PCB PrototypeQuick Turn PCBSingle-Sided PCB
Double-Sided PCBMultilayer PCBRigid PCB
Flexible PCBRigid-Flex PCBLED PCB
Aluminum PCBMetal Core PCBThick Copper PCB
HDI PCBBGA PCBHigh TG PCB
PCB StencilImpedance Control PCBPCB Assembly
High-Frequency PCBBluetooth Circuit BoardAutomotive PCB
USB Circuit BoardHalogen-Free PCBAntenna PCB

Double Sided Pcb Board	 Single Sided Pcb Manufacturer Services Of LED Aluminum PCB 1
