Double Sided 2 Layer PCB Board Metal Core OSP Surface Finishing
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

FR4 2 Layer PCB Board

,

OSP 2 Layer PCB Board

,

FR4 Two Layer PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Keyword: Two Layer PCB
Surface: OSP
Product Description

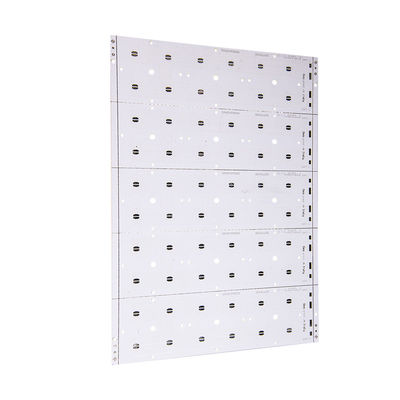

Double Sided 2 Layer PCB Board Metal Core OSP Surface Finishing



2 Layer Pcb Board Pcbs And Their Applications In The Led Lighting Industry



PCB CORES

Engineers design printed circuit boards to work best within their particular application. The designs can specify the nature of the circuit, the PCB coating material, the size of the PCB and a variety of other qualities. One of the most basic qualities to change, however, is the core of the circuit board.

PCB bases come in a variety of materials, including:

  • FR-4: Most common of these materials is FR-4, a base composed of glass and epoxy. While fire-retardant, FR-4 tends to be relatively inefficient at transferring heat.

  • Epoxies: Another, albeit less common substrate for PCBs is a material known as an epoxy. While less durable than other options, epoxy-based PCBs are much cheaper to manufacture.

  • Metal-core: Metal-core PCBs are very effective for a variety of applications, specifically those involving heat transfers. These bases consist of metal, usually aluminum, laminated with copper. These metals give the circuit board improved electrical insulation and thermal conductivity.

When thermal qualities are not as important, FR-4 or epoxy bases are more common, as these tend to be relatively less expensive. However, when thermal qualities are important for the proper function of the end product, metal-core printed circuit boards are likely the solution.



LAYER

PROTOTYPE

MASS PRODUCTION (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days
