SMD 2835 3030 LED Grow Light Aluminum PCB ISO9001 Approved
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Led quantum pcb board
High Light:

3030 LED Grow Light Aluminum PCB


2835 LED Grow Light Aluminum PCB


SMD LED Quantum Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Board Thickness: 1.0/1.2/1.6/2.0mm
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
Surface Finishing: HASL Lead Free
Silkscreen: White, Yellow, Black
Package: Vacuum Package
Product Description

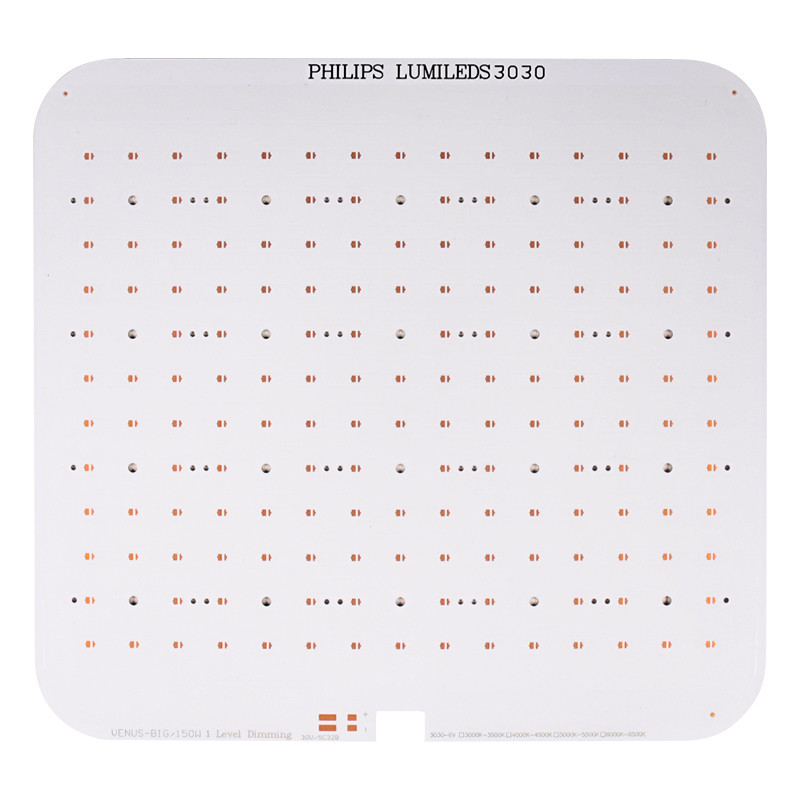

Led quantum board SMD 2835 3030 LEDS aluminum pcb for led grow light

Advantages of Metal Core PCB:

Insulated Metal Substrate Technology offers a great list of advantages when an application requires great heat dissipation. Most engineers and designers rely on metal core PCB board to take its advantages compared to FR4 PCBs:

  •  Able to integrate a dielectric polymer layer with a high thermal conductivity for a lower thermal resistance.
  •  Able to transfer heat 8 to 9 times faster than FR4 PCBs.
  •  Able to dissipate heat, keeping heat generating components cooler which results in increased performance and life.



No. of Layer Count Max Layer Count NA 1-4 layer
T-clad Laminate Supplier Laminate Supplier NA Bergquist, polytronics, boyu
Metal Thickness   M 0.4-3.2mm
Dielectric Thickness   E 100-200um
Thermal Conductivity   NA 1W/m-k , 2W/m-k 3W/m-k
Circuit Width Outer Layer Min. Circuit Width W1 0.15mm
Circuit Spacing Outer Layer Min. Circuit Spacing S 0.15mm
Copper Foil Thickness Copper Foil Thickness T ½- 4 oz
Finished Hole Min. Finished Npth Hole Size X 1.0mm
Npth Hole Tol. A /-0.05mm
Max. Aspect Ratio Max. Aspect Ratio T:H 8:1
S/M Dam & Clearance Min. S/m Dam W1 0.10mm (Green S/M); 0.13mm (white S/M)
Min. S/m Clearance W2 0.075mm (Green S/M); 0.075mm (white S/M)



SMD 2835 3030 LED Grow Light Aluminum PCB ISO9001 Approved 0


PCBs that require a lot of power usually generate a lot of heat. If your PCBs need fast cooling it is better to use Metal Core PCB than FR4. The following list includes some of the most popular applications that work great with this technology:

  • LED Lighting
  • Power Conversion Systems
  • Power Supplies
  • Photovoltaics
  • Telecom & Industrial
  • Automotive Electronics

SMD 2835 3030 LED Grow Light Aluminum PCB ISO9001 Approved 1


Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Is it OK to print my logo on product?
A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
