HASL Lead Free Aluminum 2835 3030 LED MCPCB 1.0 1.2 1.6 2.0mm
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Led quantum pcb board
High Light:

HASL Lead Free Aluminum LED MCPCB




2.0mm LED Quantum Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Board Thickness: 1.0/1.2/1.6/2.0mm
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
Surface Finishing: HASL Lead Free
Silkscreen: White, Yellow, Black
Package: Vacuum Package
Product Description

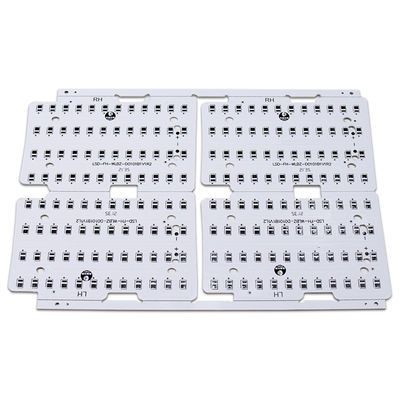

OEM Led Aluminum Pcb 2835 3030 Mcpcb for for led light


The basic structure of aluminum PCBs:

1. Circuit copper layer:


This layer consists of an electrolytic copper foil that ranges from 1 to 10oz. During its manufacture, the designer etches the copper material to form a printed circuit. Its function is to apprehend the assembly and connect devices for ease in functionality. It being an IMS, the substrate layer carries a higher current. Nonetheless, it still possesses a similar thickness and width to an FR-4 stiffener.


2. Insulating/ Dielectric layer:


The dielectric layer is best known for its thermal conduction. In thickness, manufacturers estimate them to be approximately 50µm to 200µm thick. It has the function of insulating, bonding, and dissipating heat from the board during current flow.t


3. Metal substrate:


Inarguably, this layer defines an IMS by totally distinguishing it from other PCBs. In other words, the insulating layer consists of a metal core made of an aluminum substrate. Factors you should consider when searching for a reliable metal plate are cost-effectiveness, strong point, firmness, mass, thermal coefficient, and most importantly, thermal conductivity.


With that said, an aluminum plate meets all the criteria above. Even better, you can enhance its efficiency in conductivity or mechanical properties by adding other leaves—for instance, copper, iron, and silicon steel plates.


4. The metal base membrane layer:


The base membrane, made of an aluminum alloy substrate, protects the aluminum substrate layer from unnecessary etching and scraping. Depending on the degree of heat, the coating can be lower than 120 or at 250. The layer commonly has a thickness of 1mm.


Type of Alum board single board,  double sided board
Finish Board Thickness 0.4mm----- 3.0mm
Copper Thickness 1 OZ--6 OZ
Min.Trace Width & Line Spacing 0.15mm
Biggest size 120cm*60cm
Type for surface treatment OSP.HASL, Immersion Gold ,Immersion Tin (lead free)
OSP 0.20-0.40um
Thickness of Ni 2.50-3.50um
Thickness of Au 0.05-0.10um



HASL Lead Free Aluminum 2835 3030 LED MCPCB 1.0 1.2 1.6 2.0mm 0


PCBs that require a lot of power usually generate a lot of heat. If your PCBs need fast cooling it is better to use Metal Core PCB than FR4. The following list includes some of the most popular applications that work great with this technology:

  • LED Lighting
  • Power Conversion Systems
  • Power Supplies
  • Photovoltaics
  • Telecom & Industrial
  • Automotive Electronics

HASL Lead Free Aluminum 2835 3030 LED MCPCB 1.0 1.2 1.6 2.0mm 1


Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Is it OK to print my logo on product?
A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
How long can I receive the sample?
A: After you make a payment and send us confirmed files,your samples will be ready within 3-5 work days.
