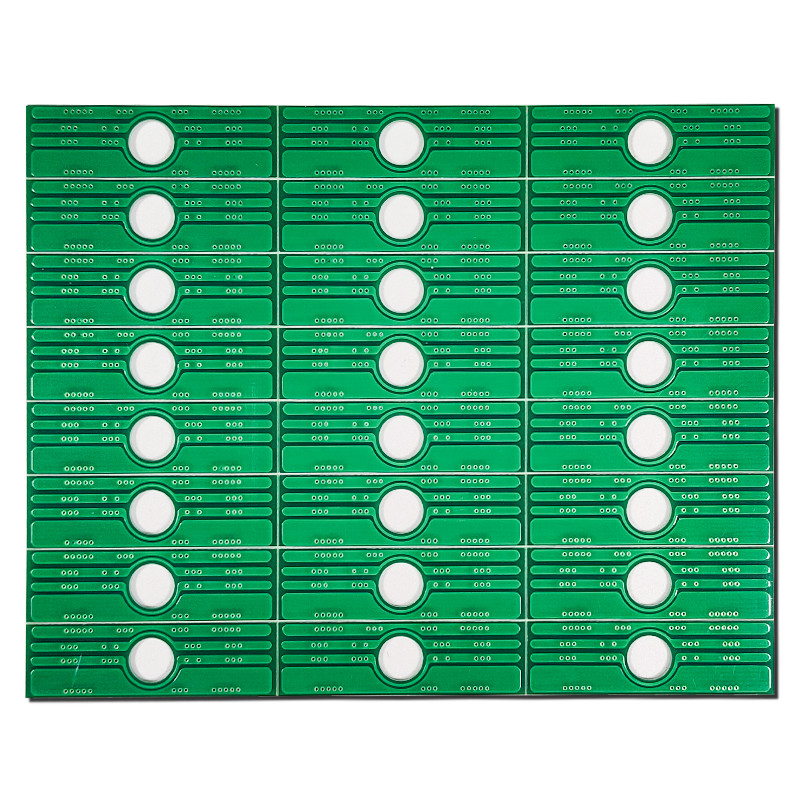

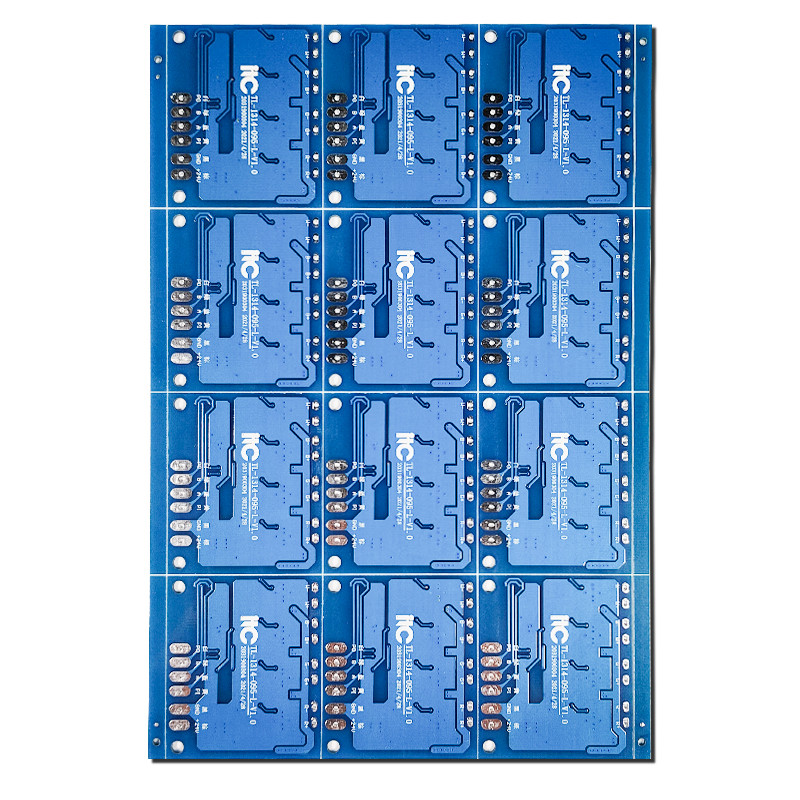

OEM FR4 PCB manufacture 94V0 Printed Crcuit Board
Electronics PC pcb board multilayer pcb circuit boards One-stop services
FR4 is the most common material grade that comprises fabricated circuit boards. ‘FR’ indicates the material is flame retardant and the ‘4’ indicates woven glass reinforced epoxy resin. Single or double-sided PCB structures consist of an FR4 core and top and bottom copper layers. Multilayer boards have additional prepreg layers between the center core and top and bottom copper layers. Now, the core consists of a substrate with copper covering, also referred to as a copper clad laminate. The core, laminate, and prepreg may all be FR4 with the copper sheets between the signal and ground layers.
The properties of FR4 may vary slightly depending on the manufacturer; however, it generally has favorable strength and water resistance attributes that support its widespread usage as an insulator for many electrical applications. It serves the same purpose in PCBs, namely to isolate adjacent copper planes and provide overall bending and flexural strength for the structure. FR4 is a good general purpose material for PCB fabrication.
|
Testing on products |
Flying Probe Test, X-ray Inspection, AOI Test, Functional test |
|
Quantity |
Min quantity: 1pcs. Prototype, small order, mass order, all OK |
|
Files needed |
PCB: Gerber files(CAM, PCB, PCBDOC) |
|
Components: Bill of Materials(BOM list) |
|
|
Assembly: Pick-N-Place file |
|
|
PCB Panel Size |
Min size: 0.25*0.25 inches(6*6mm) |
|
Max size: 20*20 inches(500*500mm) |
|
|
PCB Solder Type |
Water Soluble Solder Paste, RoHS lead free |
|
Components details |
Passive Down to 0201 size |
|
BGA and VFBGA |
|
|
Leadless Chip Carriers/CSP |
|
|
Double-sided SMT Assembly |
|
|
Fine Pitch to 0.8mils |
|
|
BGA Repair and Reball |
|
|
Part Removal and Replacement |
|
|
PCB assembly |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
FR stands for “flame retardant” and indicates that the material is compliant with the UL94V-0 standard on plastic material inflammability. The 94V-0 code can be found on all FR-4 PCBs. It guarantees the non-propagation of fire and its rapid extinguishing when the material burns.
Its glass transition (TG) is of the order of 115°C to 200°C for the High TGs or HiTGs depending on the manufacturing methods and the resins used. A standard FR-4 PCB will have a layer of FR-4 sandwiched between two thin layers of laminated copper.
FR-4 uses bromine, a so-called halogen chemical element that is fire resistant. It replaced G-10, another composite that was less resistant, in most of its applications.
FR4 has the advantage of having a good resistance-weight ratio. It does not absorb water, keeps high mechanical strength and has a good insulating capacity in dry or humid environments.
Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care ,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month .
Our factory has passed ISO 9001:2015 system and has CE, ROHS, UL certification. Based on our production capacity and R&D team, We can do ODM or OEM service for customers. Our products are selling well around the world.
Welcome to send inquiry to Yolanda!
FAQ:
Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: What does kingfield need for a customized PCBA order?
A: When you place a PCBA order, you need to provide Gerber or PCB file and the BOM list.
