High Temperature Resistant Multilayer FR4 PCB Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: FR4 pcb board 07
High Light:

Multilayer FR4 PCB Board


High Temperature Resistant FR4 PCB Board


Multilayer FR4 Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: Multilayer PCB
Color: Black White Red Green Purple
Layer: 1-24 Layers
Copper Weight: 1-12oz
Surface Treatment: OSP ,Immersion Gold, Immersion Tin
PCBA Test: Fly-probe,100% AOI Testing, 100% ET TestingAOI , X-RAY ,ICT And Function Test
Product Description

Multilayer PCB Electronic circuit board maker FR4 PCB Board


Printed Circuit Board PCB Double-Sided FR4 PCB


FR4 Multilayer PCB Introduction:


FR-4 is a common material for printed circuit boards (PCBs). A thin layer of copper foil is typically laminated to one or both sides of an FR-4 glass epoxy panel. These are commonly referred to as copper clad laminates. The copper thickness or copper weight can vary and so is specified separately.

FR4 contains printed circuit board materials suitable for extreme temperature environments. Products that experience high thermal loads or working in the range of 130 degrees Celsius are good with FR4 material. If you happen to work with some high power density designs, a high-temperature PCB made of FR4 material is the only answer.


Item Capability
Base Material FR-4 / High TG FR-4
Layers 1-22
Finised inner/outer copper thickness 1-6OZ
Finished board thickness 0.2-7.0mm
Min hole size

Mechanical hole: 0.15mm

Laser hole: 0.1mm

Controlled Impedance +/-5%
Plugging vias capability 0.2-0.8mm
Outline profile Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment HASL, HASL lead free, Immersion Gold, Immersion Tin, OSP…


Some benefits that  using FR4 materials in the manufacture of printed circuit boards include the following:

  • FR4 is one of the most low-cost materials
  • FR4 has got high dielectric strength, a factor that contributes to electrical insulation
  • FR4 material is also lightweight in addition to having a strength-to-weight ratio
  • FR4 is high moisture-resistant with relative temperature as well
  • This material also has excellent electric loss properties
  • FR4, unlike other materials, doesn't absorb water, making it ideal for plenty of marine printed circuit boards applications
  • FR4 material is also light green to yellow, making it perfect with almost all applications

FR4 material is one of the most widely used printed circuit board substrate and the most popular and common material in China. A majority of PCB designers in China prefer using this material based on numerous advantages associated with it.

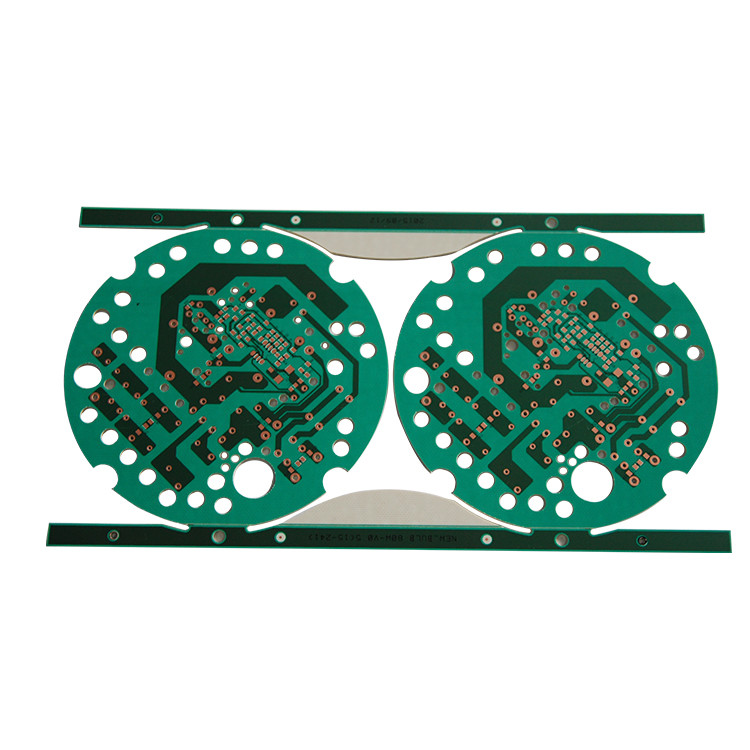

High Temperature Resistant Multilayer FR4 PCB Board 0

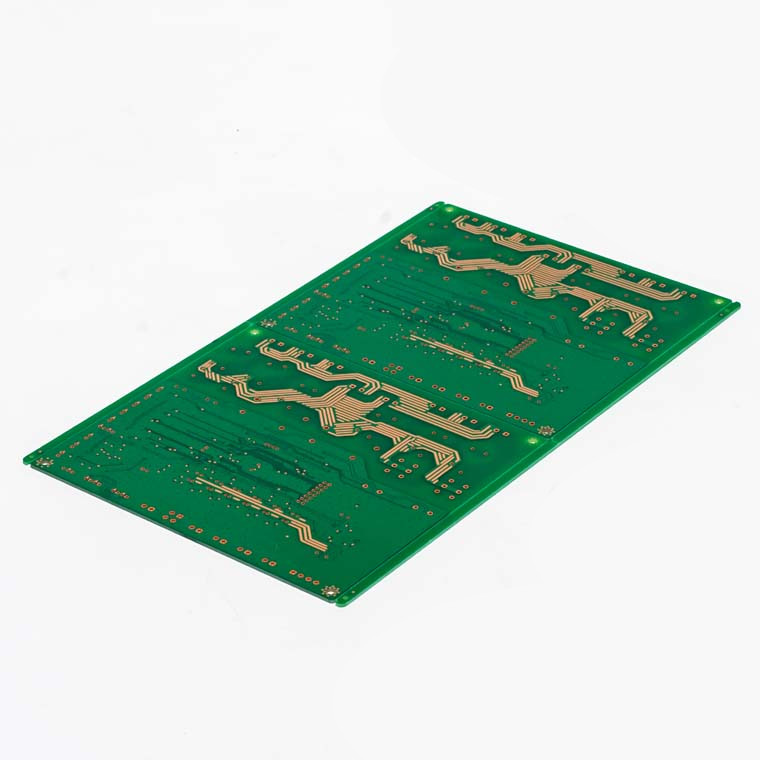

High Temperature Resistant Multilayer FR4 PCB Board 1


Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care ,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month .

Our factory has passed ISO 9001:2015 system and has CE, ROHS, UL certification. Based on our production capacity and R&D team, We can do ODM or OEM service for customers. Our products are selling well around the world.

Welcome to send inquiry to us!


High Temperature Resistant Multilayer FR4 PCB Board 2



One-Stop Service:
1. PCB Copy
2. PCB drawing / design according to your schematic diagram
3. PCB manufacturing
4. Component sourcing
5. PCB Assembly
6. PCBA 100% test




Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.
Q2. How can I get a sample to check your quality?
A:  After price confirmation,you can place orders for samples for your testing and evaluation.

Q3. What are needed to make a FR4 PCB?

A: Your Gerber file (RS-274-X), or design file like pcbdoc or brd file, what should at least contains 1 drill file, and 1 outline layer.
