94V0 Flame Retardant FR4 Multilayer PCB Circuit Board
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: FR4 pcb board 08
High Light:

FR4 Multilayer PCB Circuit Board

,

94V0 Multilayer PCB Circuit Board

,

Flame Retardant FR4 PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Double-sided FR4 PCB
Board Thickness: 1.6mm
Layer: 1-24 Layers
Certificate: UL/14001/ROHS/ISO9001
Surface Treatment: OSP ,Immersion Gold, Immersion Tin
PCBA Test: Fly-probe,100% AOI Testing, 100% ET TestingAOI , X-RAY ,ICT And Function Test
Product Description

Electronic 94V0 Pcb Board FR4 Multilayer Circuit Board



FR-4, is a widely acceptable international grade desination for fiberglass reinforced epoxy laminated that are flame retardant (self extinguishing). After add copper layer on one or each side FR4, it become to Copper Clad Laminate (CCL), and this is the non-conductive core materail for normal printed cricuit board (PCB). Printed circuit board using FR4 as core material will be named as "FR4 PCB".

PCB is used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper clad laminate substrate. Sometimes, PCB also named Printed Wiring Board (PWB) or etching wiring board if no extra electronic components was added on.

Classification of FR4 Printed Circuit Board
According to number of copper trace layers, FR4 printed circuit board is normally divided into following types:
  • Single Sided ,or Single layer;
  • Double Sided or double layer, 2Layers, 2L;
  • Four Layers (4L), Six Layers (6L), Eight Layers (8L), Ten Layers (10L)
  • Board with more than 10L

In fact, for board more than four layers, people will named it "Multi-layer PCB". According to that standard, there're only three types of PCB: Single, Double and Multi-layers.



Material
FR-4//CEM-1/CEM-3/Aluminum
Layer
1-20
Board Thickness
0.2mm- 4.0mm
Board Thickness Tolerance
+/-10%
Copper thickness
17.5um-175um (0.5oz-5oz)
Min Trace Width
0.15mm
Min Space Width
0.15mm
Min Drilling Dia
0.2mm
PTH copper thickness
0.4-2mil(10-50um)
Tolerance of Etching
±1mil(±25um)
V-cut angle
25°,30°,45°,60°
Pearl Strength of line
≥ 6lb/in(≥ 107g/mm)
Impedance control and tolerance
50Ω±10%
Twist&Wrap
≤ 0.5%
Soldermask
Green, Red, Blue, White, Black, Yellow
Surface Finish/Plating
HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG
Certificate
UL. ISO9001,CE,ISO14000
File
Protel 99se/P-CAD/Autocad/Cam350
Inner packing
Vacuum packing,Plastic bag
Outer packing
Standard carton packing



A print circuit board with FR4 is called the FR4 PCB board. It is a printed circuit board that essentially uses the FR4 sheets.
At first, the FR4 is used in the insulating layer of the circuit board. Then, we add a copper layer on either side of the FR4 sheet.
As a result of this, it becomes CCL (Copper Clad Laminate). Due to FR4, CCL acts as an insulating material.
It is then used in manufacturing FDR PCB boards.

The FR4 gives PCB boards a strength. Moreover, they are great at absorbing moisture and resisting fire.

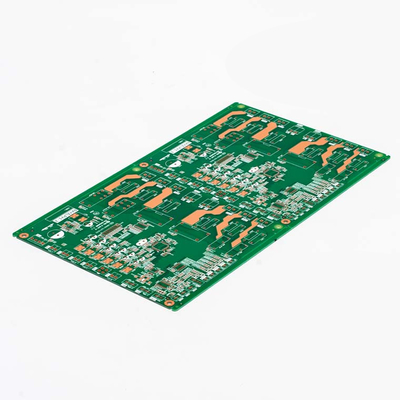

94V0 Flame Retardant FR4 Multilayer PCB Circuit Board 0

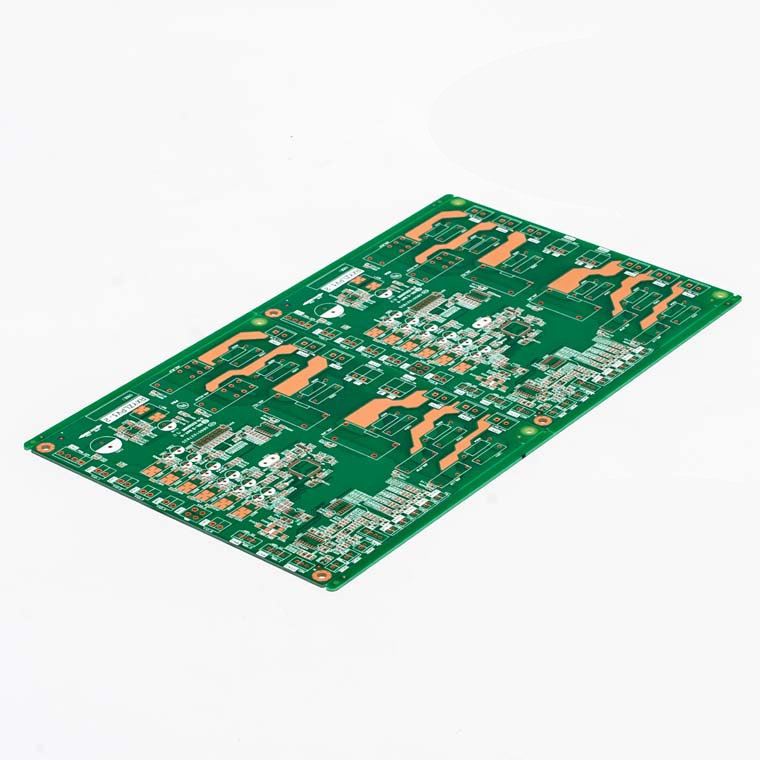

94V0 Flame Retardant FR4 Multilayer PCB Circuit Board 1

Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care ,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month .


Our factory has passed ISO 9001:2015 system and has CE, ROHS, UL certification. Based on our production capacity and R&D team, We can do ODM or OEM service for customers. Our products are selling well around the world.


Welcome to send inquiry to Yolanda!

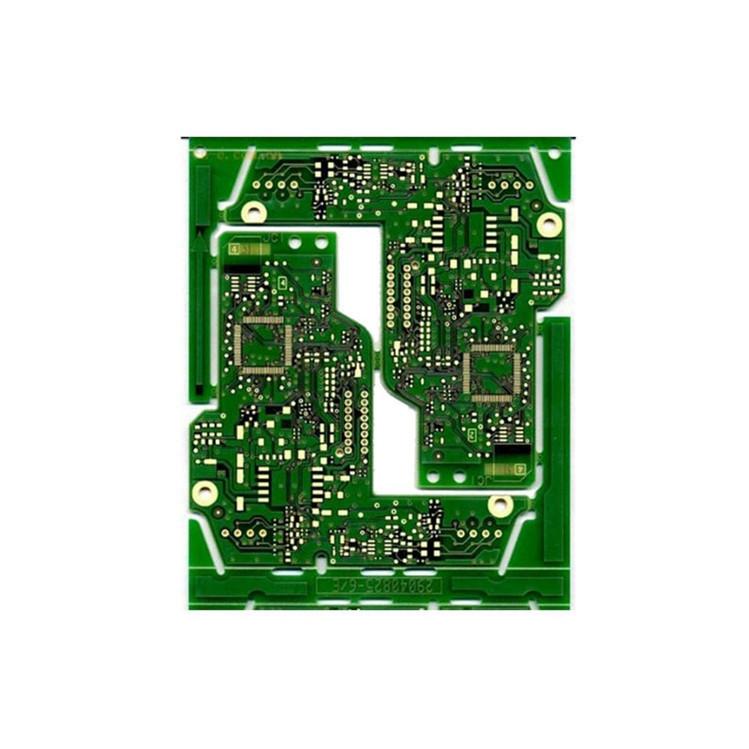

94V0 Flame Retardant FR4 Multilayer PCB Circuit Board 2








FAQ:

Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.
Q2. What are the color options for PCB solder masks?
A:  Green, black, blue, red green, yellow and white.

Q3:  What does kingfield need for a customized PCBA order?

A:  When you place a PCBA order, you need to provide Gerber or PCB file and the BOM list.
