Double Sided FR4 CEM1 CEM3 Electronic Circuit Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: FR4 pcb board 08
High Light:

CEM3 Electronic Circuit Board


CEM1 Electronic Circuit Board


Double Sided FR4 PCB Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: Double-sided FR4 PCB
Board Thickness: 1.6mm
Layer: 1-24 Layers
Certificate: UL/14001/ROHS/ISO9001
Surface Treatment: HASL,ENIG,OSP, Electrolytic Gold
PCBA Test: Fly-probe,100% AOI Testing, 100% ET TestingAOI , X-RAY ,ICT And Function Test
Product Description

FR4 PCB CEM1 CEM3 Electronic Circuit Board Manufacturer


FR-4, is a widely acceptable international grade desination for fiberglass reinforced epoxy laminated that are flame retardant (self extinguishing). After add copper layer on one or each side FR4, it become to Copper Clad Laminate (CCL), and this is the non-conductive core materail for normal printed cricuit board (PCB). Printed circuit board using FR4 as core material will be named as "FR4 PCB".

PCB is used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper clad laminate substrate. Sometimes, PCB also named Printed Wiring Board (PWB) or etching wiring board if no extra electronic components was added on.


Board Thickness
0.2mm- 4.0mm
Board Thickness Tolerance
Copper thickness
17.5um-175um (0.5oz-5oz)
Min Trace Width
Min Space Width
Min Drilling Dia
PTH copper thickness
Tolerance of Etching
V-cut angle
Pearl Strength of line
≥ 6lb/in(≥ 107g/mm)
Impedance control and tolerance
≤ 0.5%
Green, Red, Blue, White, Black, Yellow
Surface Finish/Plating
HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG
UL. ISO9001,CE,ISO14000
Protel 99se/P-CAD/Autocad/Cam350
Inner packing
Vacuum packing,Plastic bag
Outer packing
Standard carton packing


Features of FR4 to Consider When Choosing FR4 PCB CEM1 CEM3 Electronic Circuit Board

When choosing or ordering FR4 printed circuit board, an electrical engineer or technician must look at the following features:

  • Thickness:

The thickness of an FR4 sheet varies depending on your project. Ideally, you will require an FR4 with a thickness of 1.3 thou to 3 inches.

  • Impedance Matching:

The impedance matching is very important in high-frequency PCBs. It helps to maintain the function of the board of directors. It also determines the capacitance of the layers in multi-layered boards.

  • Space & Flexibility:

Depending on your project, you can choose an FR4 material for your PCB boards. Mostly, people prefer thinner sheets as they take less space and are more flexible.

  • Weight of the FR4:

Since, the thickness of the board determines its weight. For lighter products, choose FR4 boards with lighter

  • Thermal Conductivity:

To determine the temperature management of the FR4, look at the value of the thermal coefficient of dielectric constant. However, FR4 is heat resistant and it is one of the main reasons for its popular use.

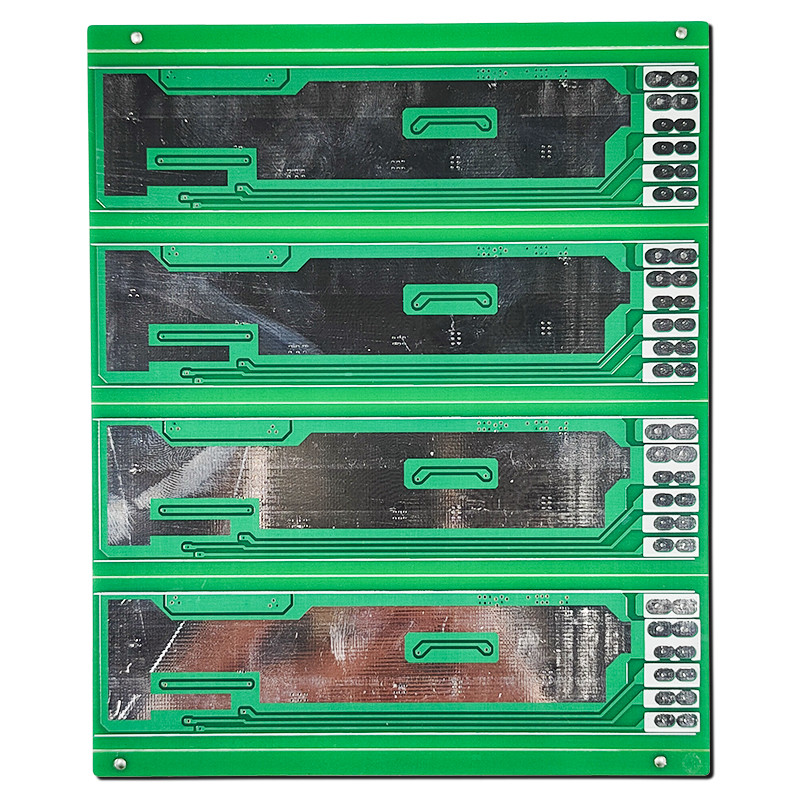

Double Sided FR4 CEM1 CEM3 Electronic Circuit Board 0

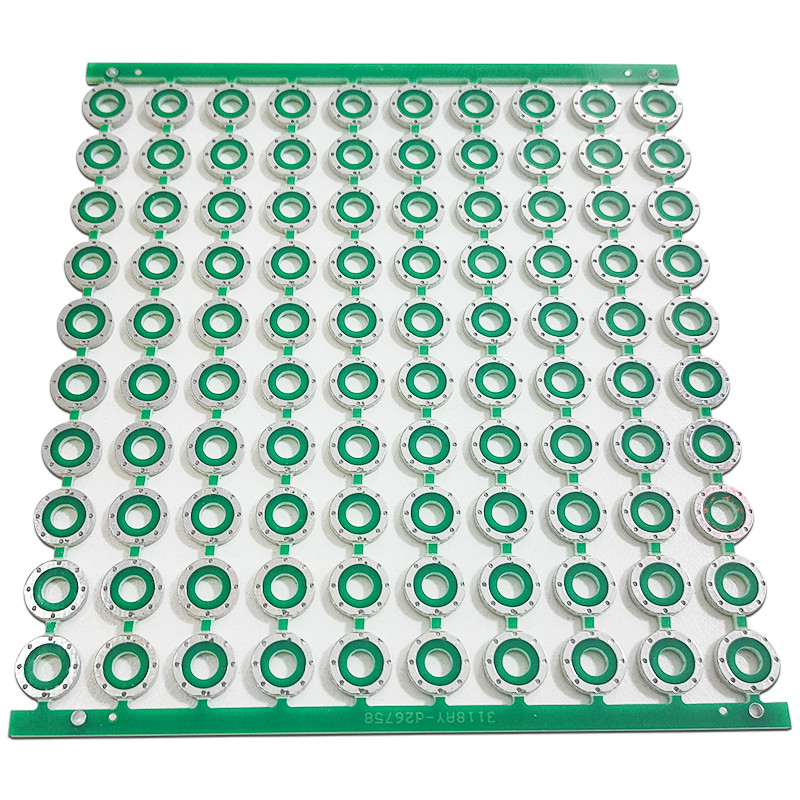

Double Sided FR4 CEM1 CEM3 Electronic Circuit Board 1

Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care ,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month .

Our factory has passed ISO 9001:2015 system and has CE, ROHS, UL certification. Based on our production capacity and R&D team, We can do ODM or OEM service for customers. Our products are selling well around the world.

Welcome to send inquiry to Yolanda!

Double Sided FR4 CEM1 CEM3 Electronic Circuit Board 2

Double Sided FR4 CEM1 CEM3 Electronic Circuit Board 3





Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.
Q2. What are the color options for PCB solder masks?
A:  Green, black, blue, red green, yellow and white.

Q3:  What is your payment ways?

A:  TT /Western union/ Paypal/Credit card etc.
