UL Aluminum Prototype Circuit Board For Plant Grow Light
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Plant Grow light PCBA 5
High Light:

UL Prototype Circuit Board


Aluminum Prototype Circuit Board


UL Prototype PCBA

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: Aluminum
Board Thickness: 1.0/1.2/1.6/2.0mm
Min. Hole Size:: 0.1
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Surface Finishing: HASL-Free Or OSP
Application: Plant Grow Light
Product Description

Prototype circuit board fabrication Plant Grow Light PCBA Supplier



In daily life, many people like to raise plants and even want them to grow and bloom rapidly. We know that the growth of plants is inseparable from sunlight, air, temperature, water and so on. Especially for sunlight, there are more requirements, such as light intensity, light period, light quality, etc. In order to create a normal outdoor natural environment indoors, special techniques are needed at this time, such as Indoor Plants Grow Lights.


Led grow lights are energy-saving lights, which are a better option for greenhouse farmers. Contrary to other lights, LEDs don’t burn filaments. Instead, they transmit light via semiconductors, generating a range of colors. Because of this unique property, you can use Led grow lights as your main lighting source. You can still use them to supplement natural light or pair them with other grow lights.


Unlike other grow lights, you can concentrate on Led light to minimize loss. These lights last for 50,000 to 100,000 hours continuously. Generally, manufacturers package these lights in different shapes and sizes. However, a chip is the most important feature of these lights. It determines the colors and brightness of the bulb.

Shenzhen YiZhuo have so many experience for led grow light PCBA Production.We can custom the led grow light PCBA for you ,Any brand LED chips by your choose!



Item Capability
Base material Aluminum
Layers 1-2
Finished inner/outer copper thickness 1-6oz
Finished board thickness 1.0-2.0mm
Min hole size Mechanical hole:0.2mm; laser hole:0.1mm
Controlled Impedance +/- 5%
Plugging vias capability 0.2-0.8mm
Outline profile Rout/V-cut/Brifge/Stamp hole
Surfacr treatment Hasl/ Hasl lead free/OSP...


Some advice for Plant Grow Light PCBA:

1. PCB Thickness ---The 2.0mm or 3.0mm PCB are all no need for the extra heat sink usually, 3.0mm thick PCB has very good performance on the temperature control.


2. Input Type --- The "Constant Voltage ( CV ) " solution is about 80% efficiency of the " Constant Current ( CC ) solution base on the same power (because CV solution need some extra resistors to fix the voltage and waste some power) , but the cost of CV power driver is much cheaper than CC power driver . So if you care the efficiency more, we recommend the CC solution, if you care the cost and not very professional on this, CV solution such as DC 12V / 24V is more simple and convenient.


3. Chain Quantity --- The recommended number of connections supported by one channel of power inputs. Excessive current will generate a lot of extra heat. Please increase the channel to get electricity directly from the power driver to get rid of this restriction.

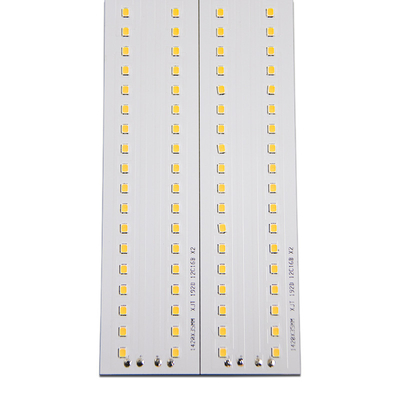

UL Aluminum Prototype Circuit Board For Plant Grow Light 0

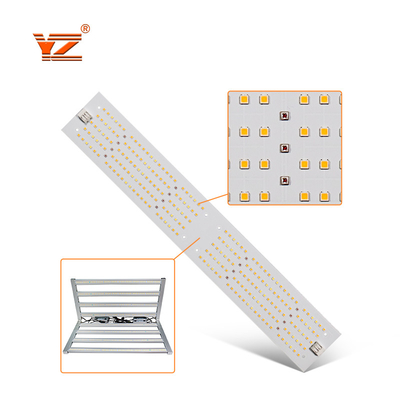

UL Aluminum Prototype Circuit Board For Plant Grow Light 1


Plant Grow Light  PCBA  Features:

· High efficiency white light Boards
· White Light Full Spectrum for better results
· Better canopy light penetration with diffused light
· Perfect performance for veg and bloom ·
· 2 Year Warranty for board


Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 131 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation. Our professionals work in close association to understand the specific requirements of our clients. In our quality testing unit, we meticulously test each product, thus results in their compliance with international quality standards. We can do ODM or OEM one-stop service for our customers.


We are supported by a ‘state-of-the-art’ infrastructural base and team of enthusiastic and skilled professionals. we have divided our well-developed infrastructural base into various units such as procuring, designing, manufacturing, quality testing, R & D, sales marketing, warehousing packaging, and more. This facilitates us to deliver totally defect free range product to our clients at the leading market prices and equipped with the latest machinery and innovative technology in order to meet the large-scale orders of customers. With a senior management team and R & D design team with an average industry experience of more than 10 years, our products are selling well around the world.

UL Aluminum Prototype Circuit Board For Plant Grow Light 2

UL Aluminum Prototype Circuit Board For Plant Grow Light 3

UL Aluminum Prototype Circuit Board For Plant Grow Light 4

UL Aluminum Prototype Circuit Board For Plant Grow Light 5







Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.


Q2. What are your terms of payment?
A: Generally, 30% T/T in advance, 70% balance before shipment.


Q3: How can I get a sample to check your quality?

A:  After price confirmation,you can place orders for samples for your testing and evaluation.
