Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Plant Grow light PCBA 6
High Light:

LED Grow Light PCB Circuit Board


2.0mm PCB Circuit Board


Thickness 1.6mm LED Light Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: Aluminum
Board Thickness: 1.0/1.2/1.6/2.0mm
Min. Hole Size:: 0.1
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Surface Finishing: HASL-Free Or OSP
Application: Plant Grow Light
Product Description

PCBA Manufacturer Custom Plant Grow Light Pcb Circuit Board



What is a LED Grow Light?
The short answer to this is, LED grow lights are specialized LEDs incorporated with a complete spectrum engineered to help in photosynthesis and enable plants to grow and develop with little to no sunlight.

Shenzhen Yizhuo Electronics Co., Ltd. have some experience for plant grow light Pcb Circuit Board.we can custom any size any shape PCBA.Also the LED spectrum can help you to test when we finished the grow Light PCBA.


Item Capability
Base material Aluminum
Layers 1-2
Finished inner/outer copper thickness 1-6oz
Finished board thickness 1.0-2.0mm
Min hole size Mechanical hole:0.2mm; laser hole:0.1mm
Controlled Impedance +/- 5%
Plugging vias capability 0.2-0.8mm
Outline profile Rout/V-cut/Brifge/Stamp hole
Surfacr treatment Hasl/ Hasl lead free/OSP...


Some advice for Plant Grow Light PCBA:

1. PCB Thickness ---The 2.0mm or 3.0mm PCB are all no need for the extra heat sink usually, 3.0mm thick PCB has very good performance on the temperature control.


2. Input Type --- The "Constant Voltage ( CV ) " solution is about 80% efficiency of the " Constant Current ( CC ) solution base on the same power (because CV solution need some extra resistors to fix the voltage and waste some power) , but the cost of CV power driver is much cheaper than CC power driver . So if you care the efficiency more, we recommend the CC solution, if you care the cost and not very professional on this, CV solution such as DC 12V / 24V is more simple and convenient.


3. Chain Quantity --- The recommended number of connections supported by one channel of power inputs. Excessive current will generate a lot of extra heat. Please increase the channel to get electricity directly from the power driver to get rid of this restriction.

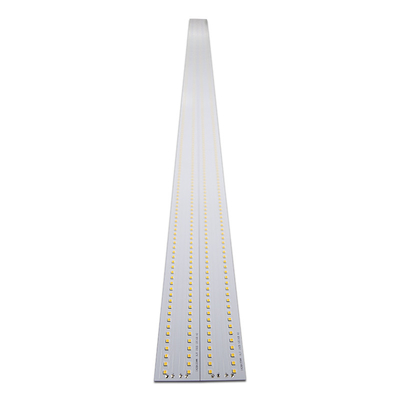

Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board 0

We are supported by a ‘state-of-the-art’ infrastructural base and team of enthusiastic and skilled professionals.

Our factory can do 1.2M Long PCB and PCBA.

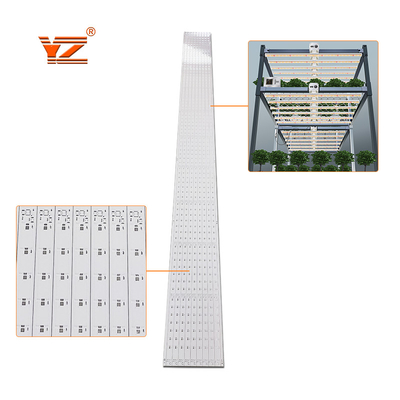

Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board 1

Benefits of Plant Grow Light Pcb Circuit Board:

Environment Friendly
Compared to HID lights,full spectrum LED grow lights are 100% recyclable as they don’t possess harmful substances such as mercury. To guarantee this, all quality LEDs are certified by RoHS.

Cool Operating Temperature
A LED grow light doesn’t emit a lot of heat. This is unlike HID lighting systems that generate temperatures of more than 400 degrees Fahrenheit.

LED grow lights don’t much affect the operating temperature in a grow tent or grow room. LED grow lights eliminate the need to install cooling systems in your grow tent. But regardless, there are still some units that are incorporated with cooling systems.

Full Spectrum
Hondo 1000W grow lights kit emit a full, balanced spectrum of light. As mentioned above, these types of grow lights provide you with all the light that your crops need and nothing more.

Additionally, most fixtures enable you to turn off specific wavelengths, so you can generate the ideal light for every stage of plant development. This means that LED grow lights are actually better for your crops than natural light.

Target Wavelength
An LED grow light allows us to control the wavelengths of light, which means we can provide crops the exact light require for photosynthesis.

Conventional lighting systems produce a lot of light in the yellow and green wavelengths, which are not entirely utilized by most plants. To put it simply, it’s wasted energy.

But with LED grow lights, you can provide your crops with the exact light spectrum they need.




Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 131 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation. Our professionals work in close association to understand the specific requirements of our clients. In our quality testing unit, we meticulously test each product, thus results in their compliance with international quality standards. We can do ODM or OEM one-stop service for our customers.


We are supported by a ‘state-of-the-art’ infrastructural base and team of enthusiastic and skilled professionals. we have divided our well-developed infrastructural base into various units such as procuring, designing, manufacturing, quality testing, R & D, sales marketing, warehousing packaging, and more. This facilitates us to deliver totally defect free range product to our clients at the leading market prices and equipped with the latest machinery and innovative technology in order to meet the large-scale orders of customers. With a senior management team and R & D design team with an average industry experience of more than 10 years, our products are selling well around the world.

Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board 2

Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board 3

Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board 4

Thickness 1.0 / 1.2 / 1.6 / 2.0mm LED Grow Light PCB Circuit Board 5







Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.


Q2. What are your terms of payment?
A: Generally, 30% T/T in advance, 70% balance before shipment.


Q3: How can I get a sample to check your quality?

A:  After price confirmation,you can place orders for samples for your testing and evaluation.
