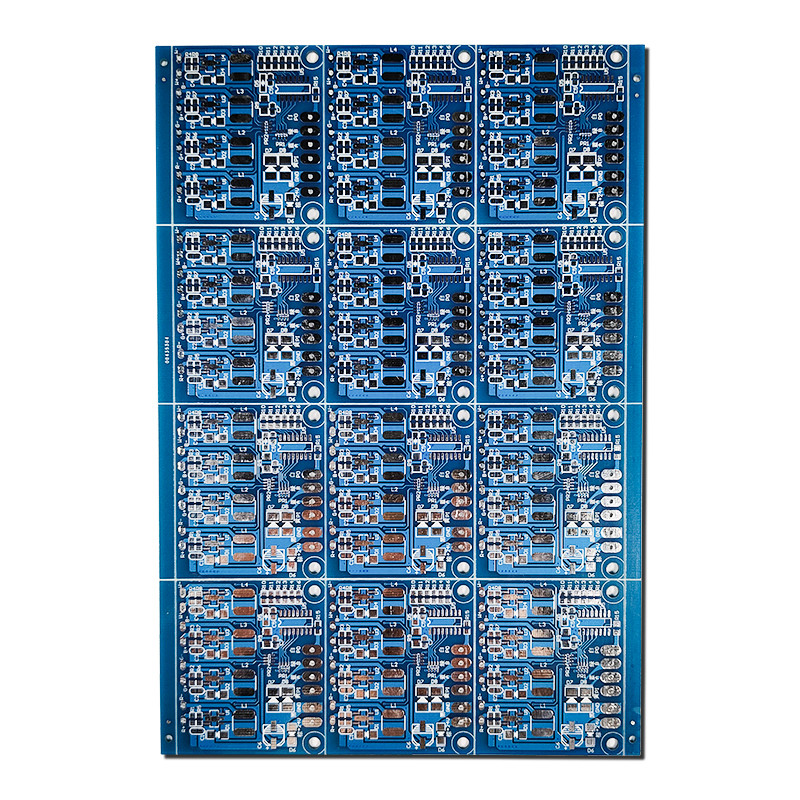

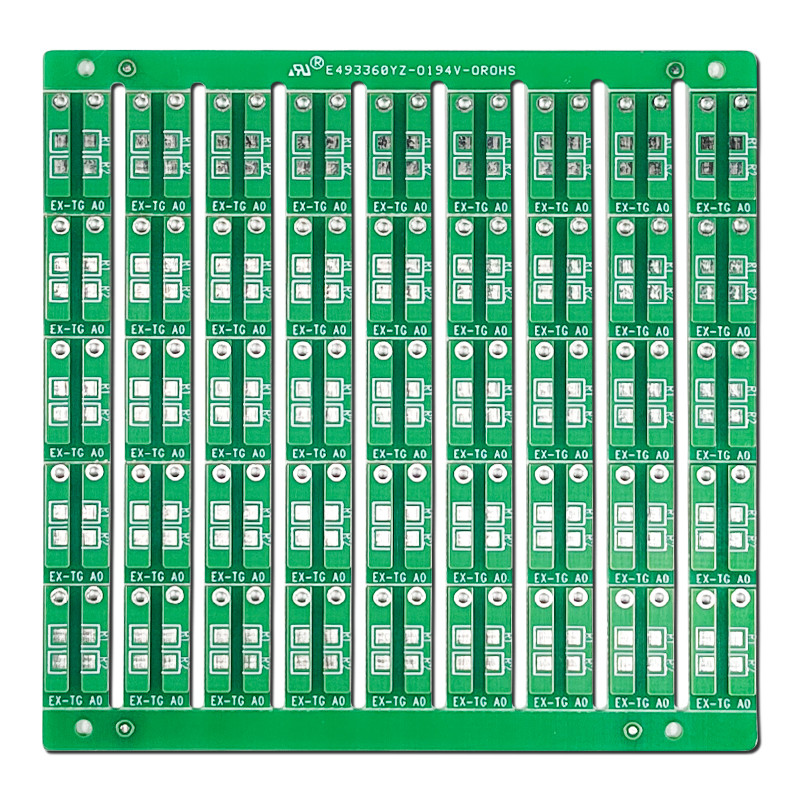

FR4 Multlayer 94v0 printed circuit board SMD Electronic components
The Printed circuit board (PCB) is divided into Single-Sided Boards,Double-Sided Boards and Multi-Layer Boards.
The first is Single-Sided Boards,on the most basic PCB, where the parts are concentrated on one side and the wires on the other.Because the wire is only on one side, it is called Single-Sided Boards,the Single-Sided Boards is usually simple to make and low in cost, but the disadvantage is that it cannot be applied to too complex products.
The Double-Sided Boards is an extension of the Single-Sided Boards,and when the single-layer wiring cannot meet the needs of the electronic product, Double-Sided Boards are used.Both sides are covered with copper wire, and can pass through the hole to guide the line between the two layers so as to form the required network connection.
Multi-Layer Boards is a printing plate that has three layers of conductive graphic layer and the insulating material in between, and the conductive graph is interlinked according to the requirement.The multilayer circuit board is the product of the development of electronic information technology to high speed, multi-function, large capacity, small volume, thin type and light weight.
| ITEMS | CRAFT CAPACITY |
| layers | 1-8 layers |
| substrates material | Aluminum, 22F, CEM-1,CEM-3,Flex PCB, fr-4 |
| panel thickness | 0.8-3.0mm |
| copper foil thickness |
18um-105um |
| Final product size | min 3*3mm max500*1500mm |
| min hole width | 0.5mm |
| minimum trace width | 0.2mm |
| min legend width | 0.1mm |
| thermal conductivity | yes |
| surface treatment | HASL (TinLead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc |
| solder mask colors available | Green, White, Red, Yellow, Black, Blue, transparent etc |
| E-testing | 100%E-Testing (High Voltage Testing);Flying probe testing |
| certificate | SGS.UL. ROHS,CQC. ISO9001:2015 |
| MOQ | 5pcs |
| Application | LED light, air conditioner,electric equipent,washing maching,weighing scale, tube light, table light, ceiling light, wall light, speaker , control board, main board, tv, LCD,LED |
Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care ,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month .
