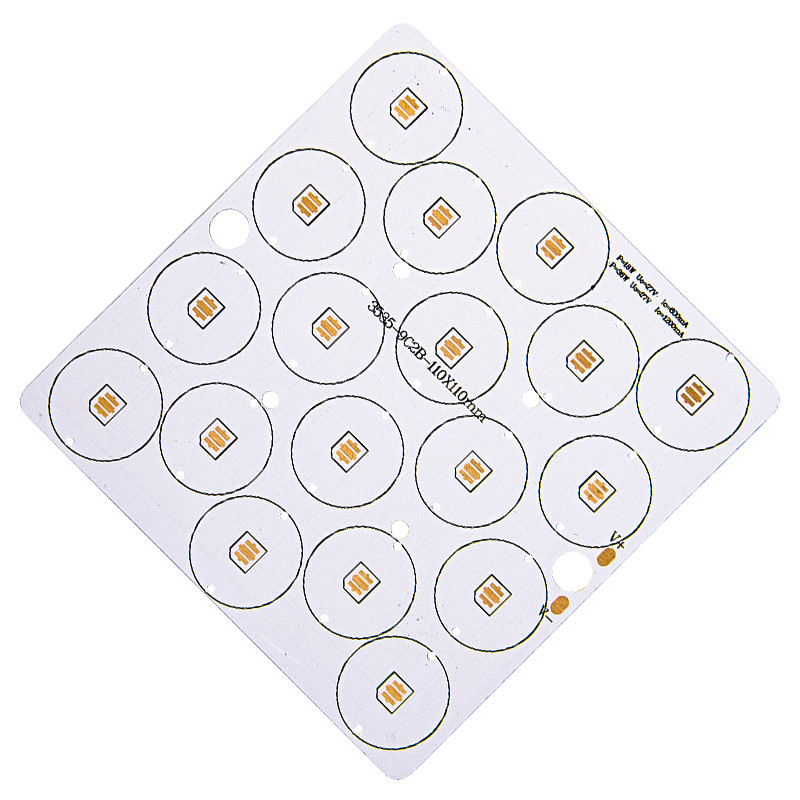

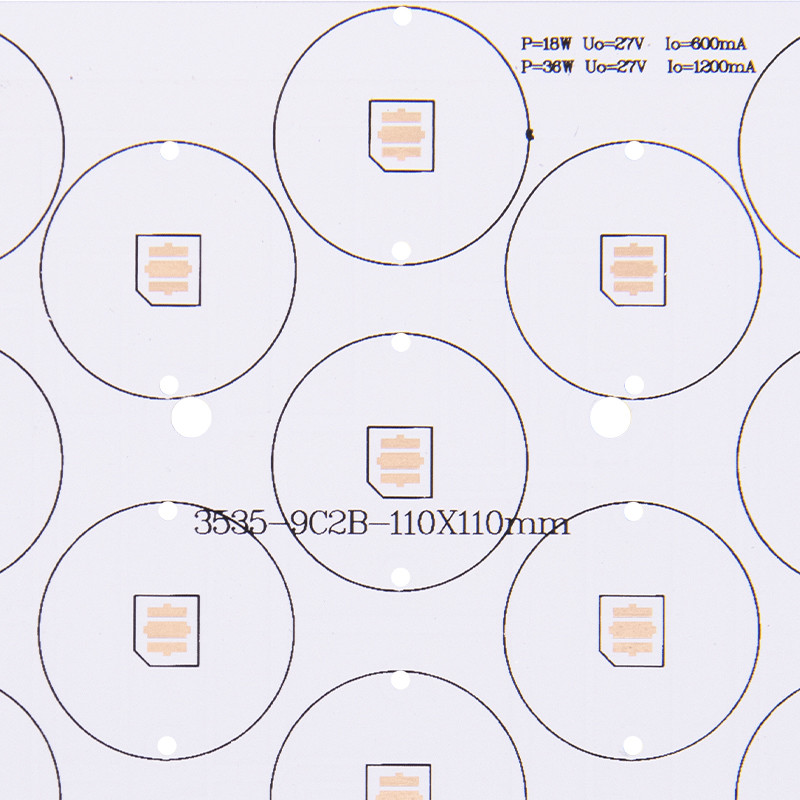

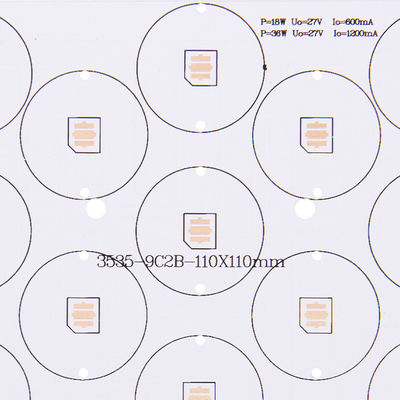

OEM ODM DIY Double Sided PCB 5W Aluminium PCB Circuit Board
DIY Light Long Aluminum PCB Board 5W Aluminium PCB Circuit Board
Structure of Aluminum PCBs
Aluminum PCBs are actually quite similar to FR4 PCBs. The basic structure of Aluminum PCBs is four layers. It consists of a dielectric layer, copper foil, an aluminum base layer, and an aluminum base membrane.
• Copper Foil Layer
The used copper layer is relatively thicker than normal CCLs (1oz to 10oz). A thicker layer of copper means a larger current carrying capacity.
• Dielectric Layer
The Dielectric layer is a thermally conductive layer and is around 50micrometer to 200micrometer thick. It has a low thermal resistance and it is suitable for its application.
• Aluminum Base
This third layer is the aluminum base that is made up of aluminum substrate. It has high thermal conductivity. Aluminum Base Membrane Layer
The aluminum base membrane is selective. It plays a defensive role by keeping the aluminum exterior safe from unwanted etching and scraping. It is of two types i.e. around 250 degrees or lower than 120 degrees (anti-high temperature)
|
No. |
Item |
Mass Production |
Prototype |
|
1 |
Layers |
1-8 Layers |
1-36 Layers |
|
2 |
Max. Panel Size |
600*770mm( 23.62″*30.31″) |
600*770mm(23.62″*30.31″) 500*1200mm(19.69″*47.24″) |
|
3 |
Max.Board Thickness |
8.5mm |
8.5mm |
|
4 |
Min. Board Thickness |
2L:0.3mm, |
2L:0.2mm, |
|
5 |
Min Inner Layer Clearance |
0.1mm(4mil) |
0.1mm(4mil) |
|
6 |
Min Line width |
0.075mm(3/3 mil) |
0.075mm(3/3 mil) |
|
7 |
Min Line space |
0.075mm(3/3 mil) |
0.075mm(3/3 mil) |
|
8 |
Min.Hole Size |
0.15mm(6mil) |
0.15mm(6mil) |
|
9 |
Min plated hole thickness |
20um(0.8mil) |
20um(0.8mil) |
|
10 |
Min Blind/Buried hole size |
0.1mm(4mil) |
0.1mm(1-8layers)(4mil) |
|
11 |
PTH Dia. Tolerance |
±0.076mm(±3mil) |
±0.076mm(±3mil) |
|
12 |
Non PTH Dia. Tolerance |
±0.05mm(±2mil) |
±0.05mm(±2mil) |
|
13 |
Hole Position Deviation |
±0.05mm(±2mil) |
±0.05mm(±2mil) |
|
14 |
Heavy Coppe |
4oz/140μm |
6oz/175μm |
|
15 |
Min S/M Pitch |
0.1mm (4mil) |
0.1mm (4mil) |
FAQ:
Q1. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
