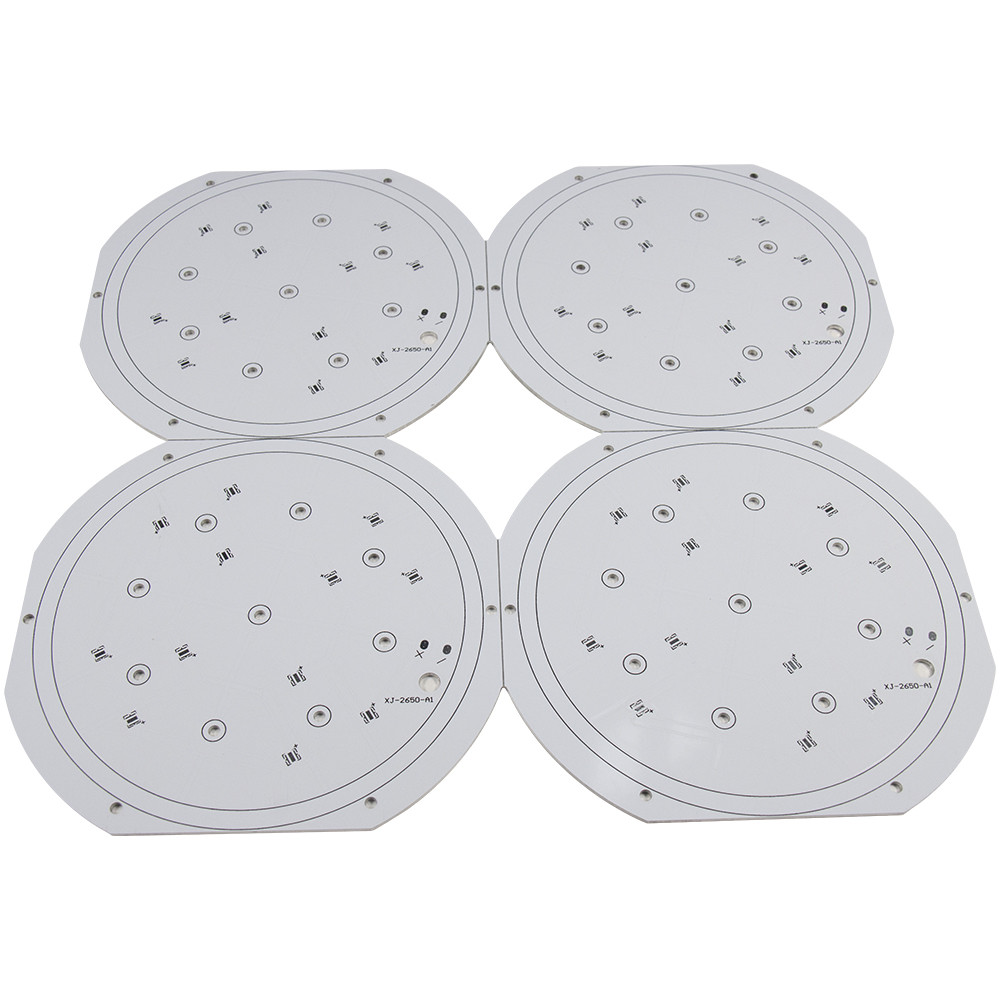

94V0 Custom LED PCB Multilayer Circuit Board For Medical light
Multilayer aluminium circuit board 94v-0 led module for germicidal light
Structure of Aluminum PCB:
Aluminum PCBs are aluminum based CCLs (CCL is a type of base material of PCBs). AluminumPCBs are actually quite similar to FR4 PCBs. The basic structure of Aluminum PCBs is four layered. It consists of a layer of copper foil, a dielectric layer, an aluminum base layer and aluminum base membrane.
Copper Foil Layer: the copper layer used is relatively thicker than normal CCLs ( 1oz-10oz). A thicker layer of copper means a larger current carrying capacity.
Dielectric Layer: the Dielectric layer is a thermally conductive layer and is around 50μm to 200μm thick. It had a low thermal resistance and it suitable for its application.
Aluminum Base: The third layer isthe aluminum base which is made up of aluminum substrate. It has a high thermal conductivity.
Aluminum Base Membrane Layer: Aluminum base membrane is selective. It has a protective role by keeping the aluminum surface safe from scraping and unwanted etching. It is of two types i.e. Lower than 120 degree or around 250 degrees (anti high temperature).
|
Product Name
|
Pcb/DOB board
|
|
rated voltage
|
12v/24v/220v
|
|
material
|
Aluminum base
|
|
light color
|
white/warm white/cold white
|
|
LED SMD
|
SMD 2835,3030
|
|
Led chips temperature
|
2700-13000k
|
|
Shelf life
|
2 years
|
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
