LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: PCBA03
High Light:

12W SMD LED Circuit Board

,

9W SMD LED Circuit Board

,

12W LED Strip PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Board Thickness: 0.6mm 0.8mm 1mm 1.6mm 2mm 3mm
Copper Thickness: 1oz 2oz 3oz
Certificate: ISO9001:2008,ROHS,UL
LED PCB As PCB Technology Has Continued To Evolve, It Has Paved The Way For The Creation Of A Host O: Rout And Score/V-cut
Surface Finishing: HASL Lead Free
Aluminum Pcb Board 2835 Led Smd: LED PCB Board Assembly
Product Description

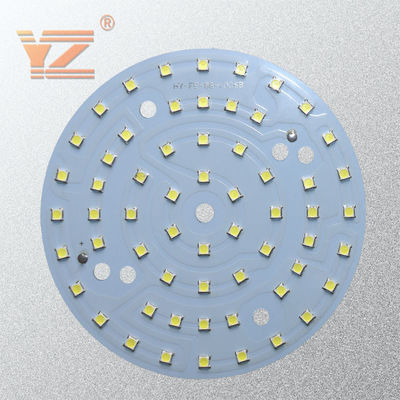

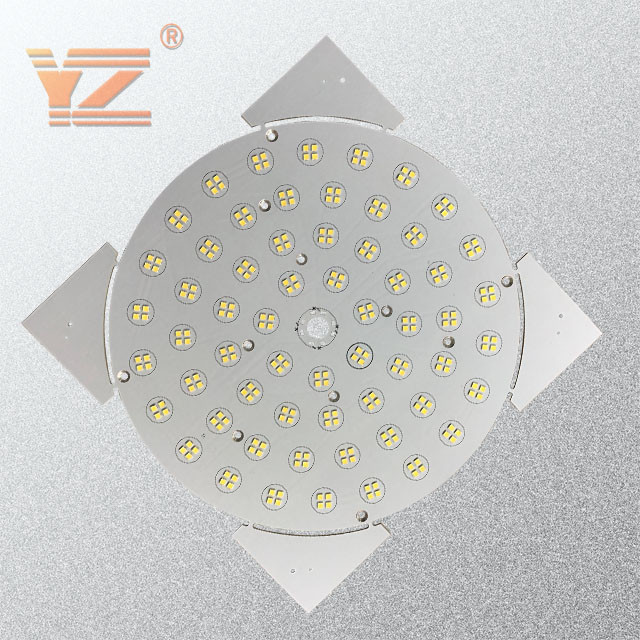

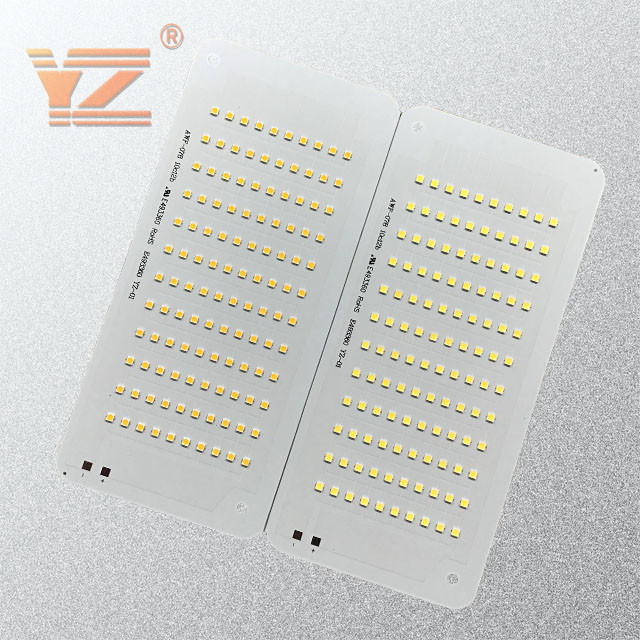

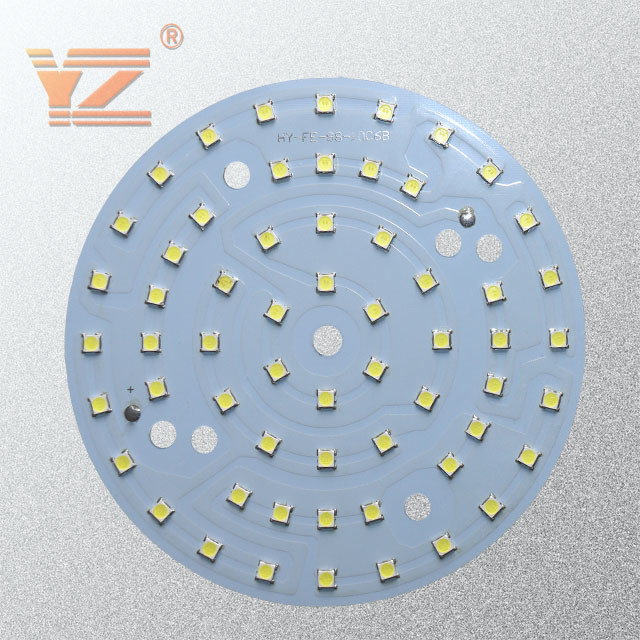

LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components



Pcb smd led strip 9w12W aluminum mcpcb components SMD led circuit board



LED PCB

As PCB technology has continued to evolve, it has paved the way for the creation of a host of exciting product innovations. A prime example is the development of the PCB for LED lighting. The LED is soldered to the circuit board and features a chip that produces the light when electrically connected. A thermal heat sink and a ceramic base are used to bond the chip.



An LED PCB board tends to generate a high volume of heat, making it difficult to cool via traditional means. Consequently, metal core PCBs are frequently chosen for LED application due to their enhanced ability to dissipate heat. Aluminum in particular is often used to manufacture circuit boards for LED lights. The aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can transfer and dissipate the heat with much greater efficiency than a traditional rigid PCB.







LED PCB Board Assembly

Layer

Single-side, Double Side

Board thickness

0.8, 1.0, 1.2, 1.5, 1.6, 2.0

Technical Specification



Minimum line width/gap:3.5/4mll(laserdrill)
Minimum hole size:0.2mm(mechanical drill)/4mil(laser drill)
Minimum Annular Ring: 4mil
Max Copper thickness: 60Z
Board Thickness:D/S: 0.2-4.0mm.

Multilayers:0.40-4.0mm,

Min Solder Mask Bridge:0.08mm

Aspect ratio: 8: 1
Plugging Vias capability: 0.2-0.8mm



Surface Treatment

OSP

PCB size

can be customized

Surface treatment

OSP: 0.2-0.5um
HASL: 2-40um
Lead free HASL: 2-40um
ENIG: Au 1-10U’’
ENEPIG: PB 2-5U’’/ Au 1-8U’’
Immersion Tin:0.8-1.5um
Immersion silver: 0.1-1.2um
Peelable blue mask
Carbon ink
Gold plating: Au 1-150U’’

Package

Vacuum Package





LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components 0



PCB LED Applications

PCB LED lights can be incorporated into numerous lighting applications due to their combination of excellent energy efficiency, low cost and maximum design flexibility. Examples include Automotive headlights, Airport runway landing lights, Lighting used in military field applications, Street lighting, Highway tunnel lighting, Photovoltaic (solar) lighting, Flashlights and lanterns, Traffic and signal lighting, Lighting in hospital operating rooms, High growth plant lighting and many others.

LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components 1





Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified by ISO9001: 2015 international quality management system. It was founded in 2012 and has been committed to the innovation and sustainable development of electronic technology. It is used in the manufacture and sales of various metal PCBs, LEDs and related products. The products are widely used in lighting, electronics, machinery, communications, automotive and other industries that require heat dissipation. With a senior management team and R & D design team with an average industry experience of more than 8 years, we have created a strong worldwide distribution network and sales channels, and our products sell well in Asia-Pacific, Europe, America, and the Middle East.

LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components 2

LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components 3

LED Strip 9W 12W SMD LED Circuit Board Aluminum MCPCB Components 4



FAQ:

Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q2. What is needed for PCB PCBA quotation?

A:  Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)



Q3. What is your advandage than other supplier ?
A:  We have around 12 years of experience in producing PCB,with professional engineer team and advanced auto production line.

We have IQC, IPQC, FQC, a sound quality system ensuring quality.

We have 100% AOI test and E-test for all pcbs.
