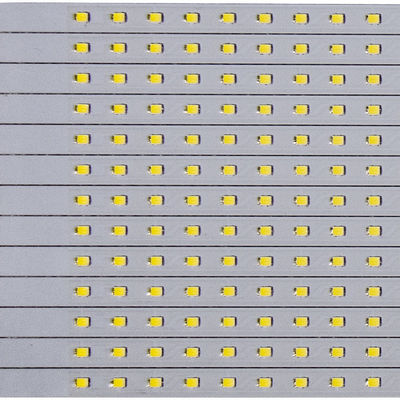

Single Side Aluminium Prototype PCB Assembly 7W 9W LED Bulbs Light
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: SMD LED PCB Board 05
High Light:

Aluminium Prototype PCB Assembly

,

7W LED Bulb Prototype PCB Assembly

,

9W LED Bulb PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Layer: 1-2 Layers
Surface Finishing: OSP
Color Temperature: Warm White 2800K-3200K
Material: Aluminum PCB
Soldermask Color: Green/ White/ Black/ Blue/ Yellow
Surface Finishing:: OSP,HASL.Immersion Gold Etc
Product Description

Single Side Aluminium Prototype PCB Assembly 7W 9W LED Bulbs Light



Prototype single-side aluminium pcb circuit board 7W 9W Led bulbs light



Model Number: PCB/PCB Assembly
Place of Origin:Guangdong, China
Supplier Type: OEM/ODM
Layer:1-20
Board Thickness:0.20mm-4.0mm
Copper Thickness:17.5um-175um (0.5oz-5oz)
Solder mask color: red, black, blue, green, yellow
Frequency of stencil cleaning:1 time/5 to 10 pieces
Surface Treatment: HASL, Lead free HASL, OSP, Gold Plating, Immersion gold
Min Trace Width: 0.15mm
Min. Line Spacing:3 mil (0.075 mm)
Min Space Width: 0.15mm
Base Material: FR4/Aluminium
Min Drilling Dia: 0.2mm



Product Details:

Power: 3W/5W/7W/9W/12W/15W/18W
Voltage: AC220V
Color Temperature :Warm White 2800K-3200K,Cold White 6000K-6500K
Beam Angle: 170 Degree
Housing Material:Aluminum
Life Span: 5000hrs
Application: Downlight,ceiling light,DIY
Feature: Don't need driver,connect AC220V directly,easy to install, support AC180-240V

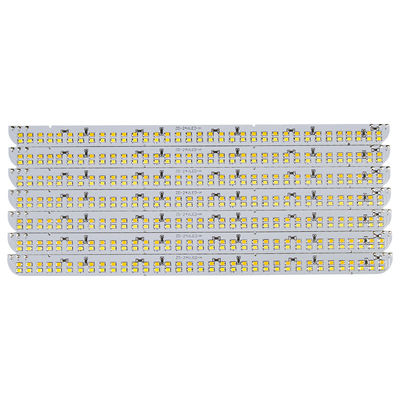

Single Side Aluminium Prototype PCB Assembly 7W 9W LED Bulbs Light 0

Applications:

LED PCB light has vast applications in different industries because of its low cost and flexible design, and excellent energy efficiency. It usually can be used in industries such as, medical, computer, automotive, and telecommunications industry.

Medical industry: LED PCB lights used in medical examinations are usually high-powered and made of aluminum with the reason of well heat dissipation.

Computer industry: LED PCB lights are widely used in computer industry because it features great heat sensitivity of computer machinery.

Automotive industry: Aluminium LED PCBs can be used for cars on brake lights, indicators, and headlights. This kind of printed circuit board features durability and competitive prices.

Telecommunications: LED PCB lights are always used in telecommunications equipment because of its excellent heat transfer ability.


FAQ:
Q1. What about the lead time?
A: Sample needs 5-7 work days, mass production time needs 1-2 weeks for order quantity more than


Q2. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3:  Do you offer guarantee for the products?
A:  Yes, we offer 2 years warranty to our products.
