SMT Led Chips 5050 5730 Aluminum LED PCB Board Fast PCB Prototype
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: aluminum LED bulb PCB
High Light:

5730 Aluminum LED PCB Board


5050 Aluminum LED PCB Board


SMT 5730 Fast PCB Prototype

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: Led Bulb Pcb
Min. Line Width: 0.1mm
Layers: 1-2layers
Min. Hole Size: 0.1mm
Board Size: Can Be Customized
Surface Finishing: HASL Lead Free
Service: One Stop Turkey Service
Product Description

 SMT Led Chips 5050 5730 Aluminum LED PCB Board Fast PCB Prototype


Aluminum Led Pcb Board Custom Design SMT 5050 5730 led chips


Products Name


Base Material

Aluminum Board

Min. Line Spacing


Min. Line Width


Solder Mask Color

Green,Blue,Black,or on your request

Board Thickness

1.6mm - 3.2mm

Copper Thickness

1OZ,0.5OZ - 6OZ



Surface finish

ASL, ENIG, Immersion Tin, Immersion Silver, OSP

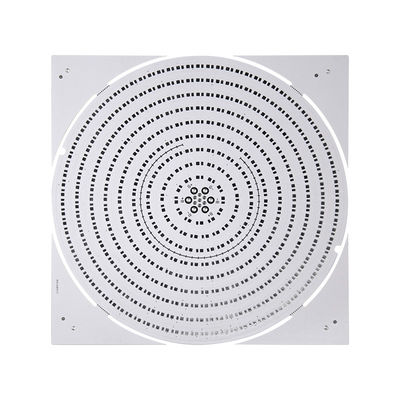

SMT Led Chips 5050 5730 Aluminum LED PCB Board Fast PCB Prototype 0

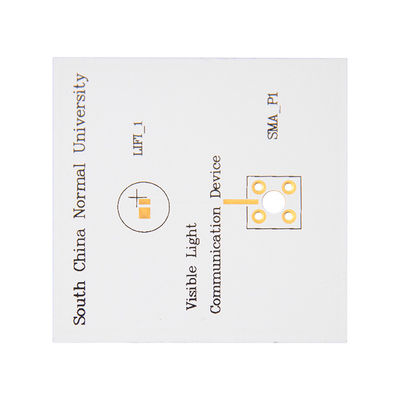

SMT Led Chips 5050 5730 Aluminum LED PCB Board Fast PCB Prototype 1


Aluminum PCB Applications:

You can improve the durability and performance of your product by using aluminum boards. Simple designs and low thermal impedance of the dielectric out performs all other printed circuit board insulators for power and high-operating temperature components. The relatively low cost versus copper and the ability to have a lightweight material with excellent durability are the biggest reasons aluminum is used for these applications.

Below are some examples of applications using aluminum backed PCBs.


Power Conversion

Aluminum clad offers a variety of thermal performances, is compatible with mechanical fasteners, and is highly reliable.


LED Circuit Boards

Using aluminum with your LEB PCB ensures the lowest possible operating temperatures and maximum brightness, color, and life. With many low-cost options for dielectric materials and specific manufacturing equipment dedicated to single sided production of LED lighting products, we can give our customers the best overall solution.


Motor Drives

Thermal clad dielectric choices provide the electrical isolation needed to meet operating parameters and safety agency test requirements.


Solid State Relays

Aluminum offers a very thermally efficient and mechanically robust substrate to drive heat away from the critical system components.



The automotive industry uses aluminum boards, as they need long term reliability under high operating temperatures coupled with their requirement of effective space utilization. Most commonly used in automotive lighting system components.


Consumer Products

Most commonly found in street lighting, traffic control lighting, interior building lights, landscape lighting, and camping gear as aluminum PCBs are lightweight and can be very small in size.

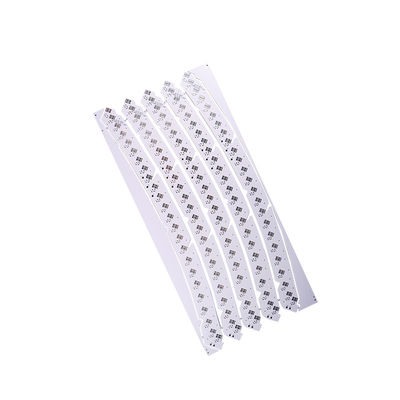

SMT Led Chips 5050 5730 Aluminum LED PCB Board Fast PCB Prototype 2




Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.


Q2: What is needed for PCB PCBA quotation?

A:  PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

     PCBA:  PCB information, BOM, (Testing documents...)


Q3. Can you offer best price to us?

A: Yes, we are a manufacturer , so we can offer low price than the trading company.
