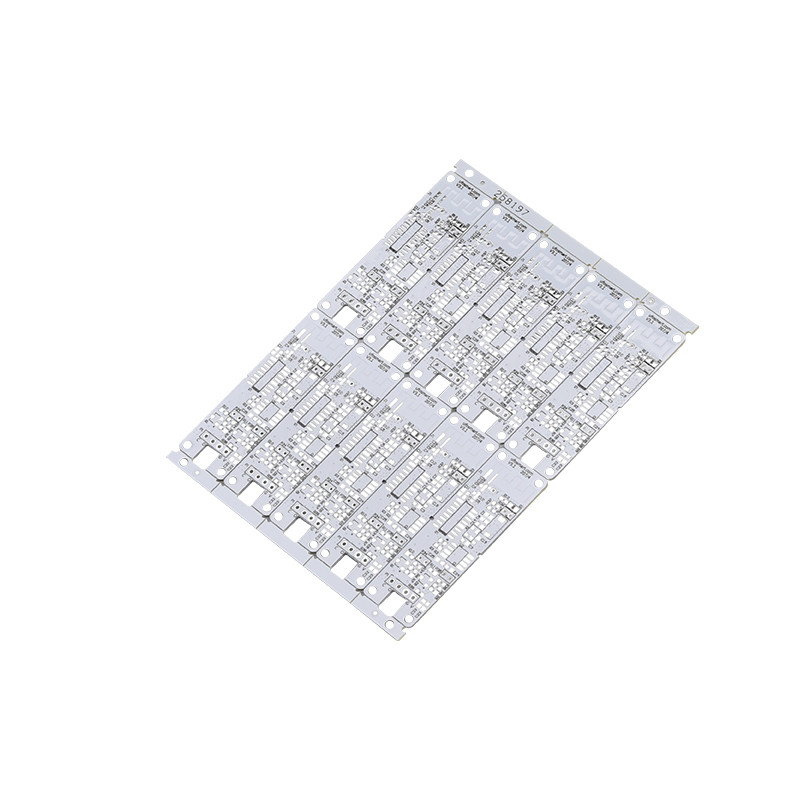

RGB Chip 5050 WS2812B Aluminium PCB Board For LED Light 5V
Nagulagu 100pc WS2812B 5050 RGB LED & PCB Board 1-LED Module Pixel Light 5V LED Chip Black PCB
| Layers | 2 layers |
| Board thickness | 1.6MM |
| Material | Aluminum |
| Copper thickness | 1 OZ(35um) |
| Surface Finish | (ENIG) Immersion gold |
| Min Hole(mm) | 0.25mm |
| Min Line Width(mm) | 0.28mm |
| Min Line Space(mm) | 0.20mm |
| Solder Mask | White |
| Legend Color | Black |
| Packing | Anti-static bag |
| E-test | Flying probe or Fixture |
| Acceptance standard | IPC-A-600H Class 2 |
| Application | LED Light |

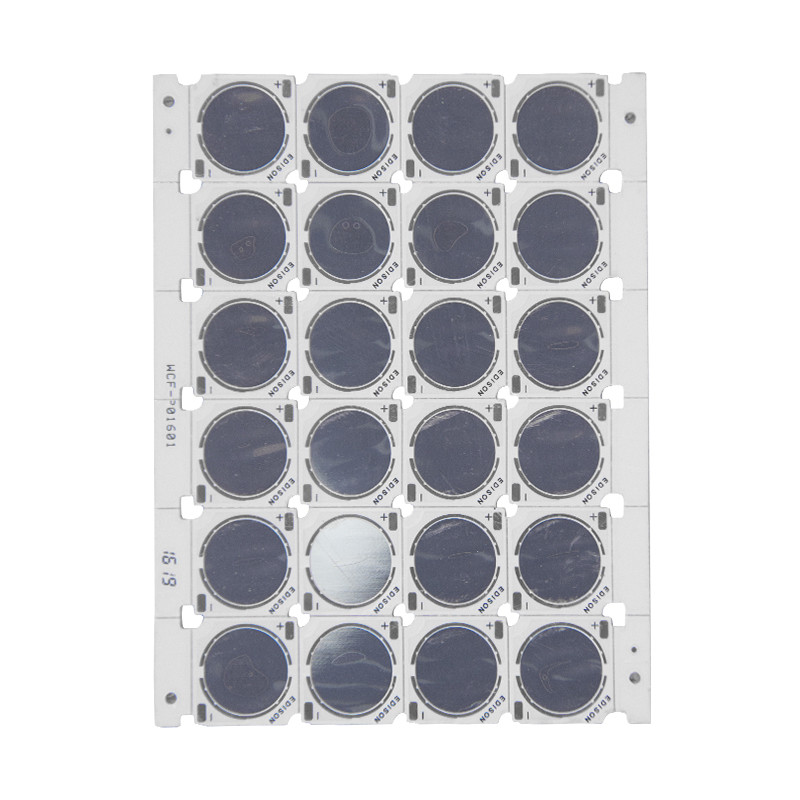

Printed Circuit boards available in variety of sizes for our of premium LEDs mounted on PCB stars here.
Please note all power LEDs and PCBs must be mounted on an appropriately sized quality thermal compound (such as we sell here) must be used between he rear of the PCB and the surface of the heatsink. Active LEDs require a Constant Current Driver, Thermal Grease or Glue and a sufficiently sized Heatsink to operate correctly. Please follow the links above or browse our to see our excellent range of compatible, safe and quality components.
Features
For electrical and technical specifications, please scroll to the section below. For complete technical information, full datasheets are available on our website.
BUYERS BEWARE - It has come to our attention that several dishonest amateur eBay sellers have been copying our listing image, designs and even shop name in an attempt to make cheap poor quality products look like our ours - THEY ARE NOT. We have exclusivity for these products in the UK and do not sell or endorse any other seller on eBay. In order to check, simply compare electrical accreditation, and electrical specifications and warranties. If you want quality and assurances of assurances then we are business you need.
Mix and Match Offer (special conditions for UV, RGB and Far Red)
In order to offer the most flexible and competitive pricing to our customers, we offer a free mix and match service on all our LEDs purchases. This allows customers to pick and choose whatever ratio of colours they might need for their project whilst retaining maximum cost efficiency.
To order please select the mix and match option from the colour dropdown, select the quantity you need and leave a note with your colour choice on checkout.
Please note - due to the price difference of the UV, IR and RGB chips, including these will account for 2 LEDs in the selection. (eg. - If you order a mix and match of 10 LEDs and wanted 8 x Bright Red and 1 x UV. The UV would account for 2 LEDs and you would receive 9 x LEDs in total)
LEDs, Heat sinks, Driver, Compound and Glue - Everything you need
All power Shop to see our excellent range of compatible, safe and quality components.
Why Choose Us
1) Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters,120 workers
2) We have good quality control systems, including ISO 9001:2008;
3) Our factory has CE, ROHS, UL certification
4) All the components we use are the New & Original;
5) One-stop service can be provided from PCB design, 1-32 layers PCB manufacturing, components sourcing, PCB Assembly, to Fully Product Assembly.
FAQ:
Q1: Do you have any minimum order quantity requirement?
A: no, the sample you just need a minimum of 2 pieces.
Q2. What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
Q3: How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
