Min Trace Width 0.15mm LED Light Bar Circuit Board SMD Aluminum PCB
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led Strip Pcb
High Light:

0.15mm LED Light Bar Circuit Board

,

SMD LED Light Bar Circuit Board

,

Trace Width 0.15mm LED Strip PCB

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: LED Strip PCB
Profiling Punching: Routing, V-CUT, Beveling
Silk Screen: White,black,yellow
Electrical Testing: Fixture / Flying Probe
Hole Tolerance: PTH: ±0.075, NTPH: ±0.05
Surface Finishes: OSP, HASL, HASL Lf, Immersion Gold, Etc.
Product Description

Min Trace Width 0.15mm LED Light Bar Circuit Board SMD Aluminum PCB



LED PCB Aluminum Led Strip Pcb Board SMD PCB boards for LED bars



Application of LED PCB:

You may be wondering about the possible use cases of LED PCB. The applicable cases are many, but we will mention some of the popular ones.

1.  Medical Industry

It will interest you to know that the medical industry is one of the major beneficiaries of the applications of LED PCB.

Most of the medical equipment you know or see in the hospital are made from LED PCB. The reason for that is because LED PCBs tend to provide more light than traditional circuit boards would.

Also, preference is made for lighting tools used during medical examinations and surgeries. To ensure that the circuit boards are functioning effectively, aluminium PCB will be used during the manufacturing process because it effectively transfers heat while maintaining the stability of the medical pieces of equipment when in use.



2.  Telecommunications

Aside from being used in the medical sector, LED PCBs can also be used in the telecommunications industry. There are two major roles played by these circuit boards in telecommunication devices.

First, LED PCBs (especially those manufactured with aluminium PCB) effectively transfer and dissipate heat from the board. Thereby, you are confident that the circuit board will stand the test of time because it is not in immediate danger of malfunctioning because of overheating.

Second and most important, LED PCBs are used in the telecommunication sector because of the boards of the overall importance of the displays and indicators on the boards in telecommunication equipment.



3.  ICT and Tech

If you are conversant with how the IT industry works, you will understand why LED PCBs are mostly used instead of the other circuit boards. For instance, computers and Personal Computers (PCs) heat the most after some hours of use. That could cause damages to the internal components of the computers.

However, if the PCs and computers were manufactured with LED PCBs, the damages will be limited because of the effective dissipation of heat from the circuit board.



4.  Automotive Industry

This time, we are looking at how LED PCBs can be the last resort for automobile manufacturers that want to improve on the quality and effectiveness of their indicators and brake lights.

LED PCBs are mostly preferred during automobile production because of their increased efficiency and competitive pricing.



5.  Additional Use Cases

The four (4) applications of LED PCBs are not the only ones. Instead, there are several other applications and use cases of the circuit boards you need to know about.



First, LED PCBs are used in producing consumer devices, such as:

  • Power converters

  • Aviation applications

  • Decorative lights

  • Marine applications

  • Lower-light environments

  • Concealed light

  • Flashlight

  • Elevator lighting and

  • Camping accessories

1

Description

PCB Specification

2

Material

FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum

3

Layer

1-20

4

Board Thickness

0.2mm- 4.0mm

5

Board Thickness Tolerance

+/-10%

6

Copper thickness

17.5um-175um (0.5oz-5oz)

7

Min Trace Width

0.15mm

8

Min Space Width

0.15mm

9

Min Drilling Dia

0.2mm

10

PTH copper thickness

0.4-2mil(10-50um)

11

Tolerance of Etching

±1mil(±25um)

12

V-cut angle

25°,30°,45°,60°

13

Pearl Strength of line

≥ 6lb/in(≥ 107g/mm)

14

Impedance control and tolerance

50Ω±10%

15

Twist&Wrap

≤ 0.5%

16

Soldermask

Green, Red, Blue, White, Black, Yellow

17

Surface Finish/Plating

HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG

18

Certificate

ROSH. ISO9001, UL Certificate

19

File

Protel 99se/P-CAD/Autocad/Cam350

20

Inner packing

Vacuum packing,Plastic bag

21

Outer packing

Standard carton packing

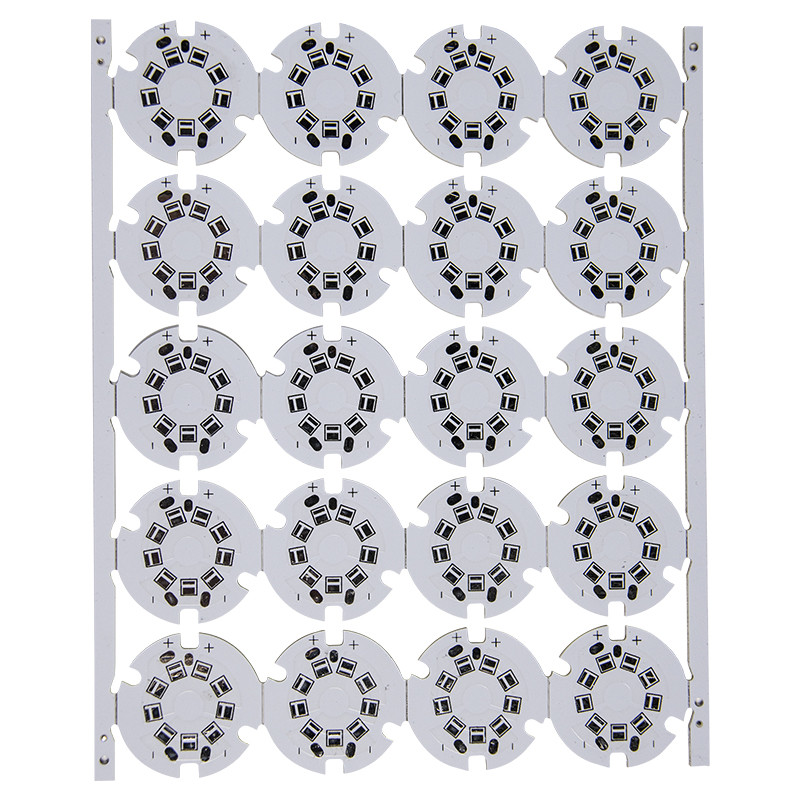

Min Trace Width 0.15mm LED Light Bar Circuit Board SMD Aluminum PCB 0

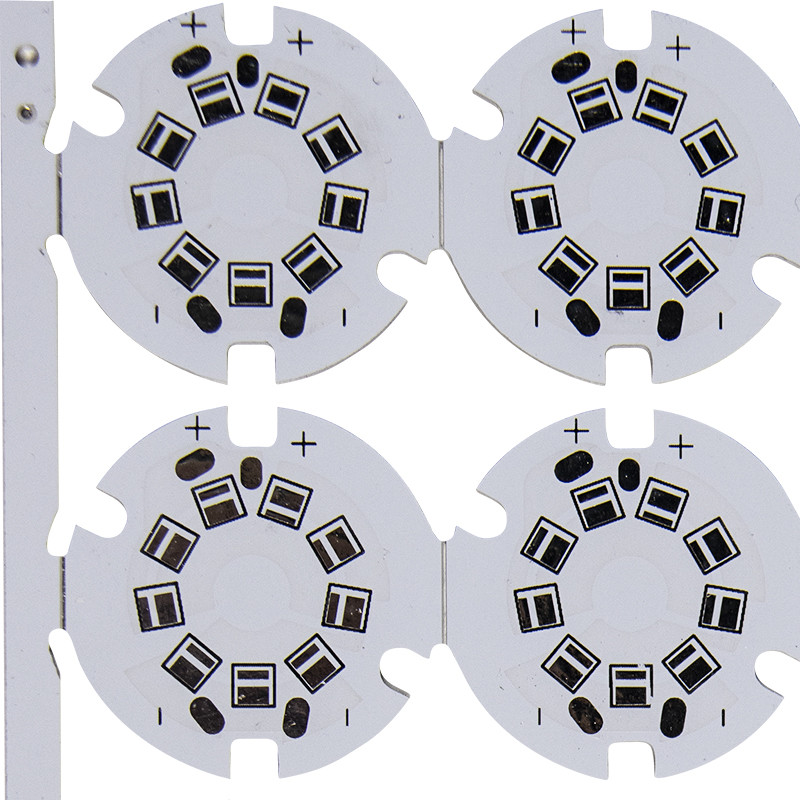

Min Trace Width 0.15mm LED Light Bar Circuit Board SMD Aluminum PCB 1
FAQ:

Q1.  How long is the lead time?

A:  For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 word days.



Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.



Q3:  How can I get a sample to check your quality?

A:  After price confirmation,you can place orders for samples for your testing and evaluation.
