Dimmable SMD 5730 Prototype PCB Assembly 10W 56mm Aluminum Plate
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: SMT PCB 01
High Light:

SMD 5730 Prototype PCB Assembly

,

Dimmable Prototype PCB Assembly

,

SMD 5730 PCB Prototype Fabrication

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Brand Name: YZ
PCB Type: Aluminum PCB
Input Voltage: AC 220V
Certificate: ISO9001:2008,ROHS,UL
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Surface Finishing: HASL Lead Free
Application: Industrial LED Light
Product Description

Dimmable SMD 5730 Prototype PCB Assembly 10W 56mm Aluminum Plate



5730 SMD PCB Printed Circuit Board Aluminum Plate Dimmable 10W 56mm



Voltage: AC220V

Wattage: 10W
Diameter: 56mm
Lumen: 80LM/W
LED Chip Type: SMD 5730
Light color: White, Warm White
Is Dimmable: Yes
Color temperature: 6000-6500K(White), 3000-3500K(Warm White)
Material: Aluminum plate

Feature:
Integrated IC LED driver, can connect AC220V directly, no need soldering other LED transformer driver.
Integrated IC technology, no electrolytic capacitors and transformers.
High power factor >0.90, low total harmonic distortion <20%, high power conversion efficiency >90%
Suitable for DIY LED bulb, candle lamp, down lamp, ceiling lamp, etc.

How to use:
Paste in the heat sink, connect to AC220V directly.

Feature:
No need driver, easy to use
Suitable for DIY LED bulb, candle lamp, down lamp, ceiling lamp, etc .

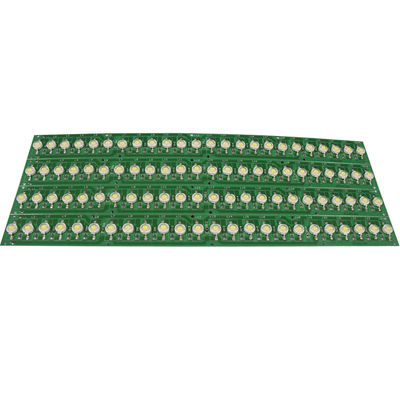

Dimmable SMD 5730 Prototype PCB Assembly 10W 56mm Aluminum Plate 0

Dimmable SMD 5730 Prototype PCB Assembly 10W 56mm Aluminum Plate 1

The Applications of LED PCB Circuit Board:

The Led benefits make LED printed circuit boards very desirable for a number of applications and industries. Some of the more prominent applications of Aluminum LED PCB Circuit Board include:



Telecom LED PCB: Telecommunications equipments often uses LED indicators and displays, and because of the surrounding machinery, the improved heat transfer ability of Aluminum LED PCB is extremely useful in this application. Improved durability and decreased weight also make these aluminum PCB LED quite desirable within telecommunications applications. Not only that, but Led Metal core PCBs are commonly used in other components of telecommunications equipment as well, including filtering appliances and high-frequency amplifiers.



Automotive LED PCB: You can also find Led Aluminum PCB Board in cars on indicators, in headlights and brake lights, and other applications. The durability, longevity and relatively low price makes these Led aluminum PCB ideal within the automotive industry. Their applications don’t end at LED either – aluminum PCBs are commonly used within electronic regulators and power controllers.



Computer Led PCB: LED displays and indicators are becoming increasingly common within computer applications, and the heat sensitivity of computer machinery makes Led PCB the ideal solution. In addition to LED applications, computer parts like power devices, floppy drives and CPU boards are commonly use aluminum LED PCBs because of their ability to handle and transfer heat.



Medical LED PCB: Lighting tools used in surgeries and medical examinations commonly use high-powered LED lights, and these LED lights often use aluminum PCBs. This is primarily due to the durability and heat transfer capabilities of aluminum PCB LEDs — this ensures medical equipment is functioning properly regardless of the number of patients cycling through a medical office. In addition to lighting tools, medical scanning technology often uses aluminum PCBs as well.



Led PCB Products : Led Tube , Outdoor LED advertising screen, LED Lamp, Waterproof Led , 1.5m Led and so on .



FAQ:

Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q2. How about your supply capacity?

A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.



Q3. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
